114 Keysight FieldFox Handheld Analyzers Service Guide
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts
7-
4. To replace the hinge:
a. Refer to Figure 7-3. Lift the kickstand assembly off of the rear case.
b. Remove and discard the four hinge attachment screws (2).
c. Place the new hinge in position and install with four new screws.
New screws are provided in the Repair and Re-assembly Kit.
d. Place the kickstand assembly in place on the rear case and reinstall
the hinge cover with new screws provided in the Repair and
Re-assembly Kit.

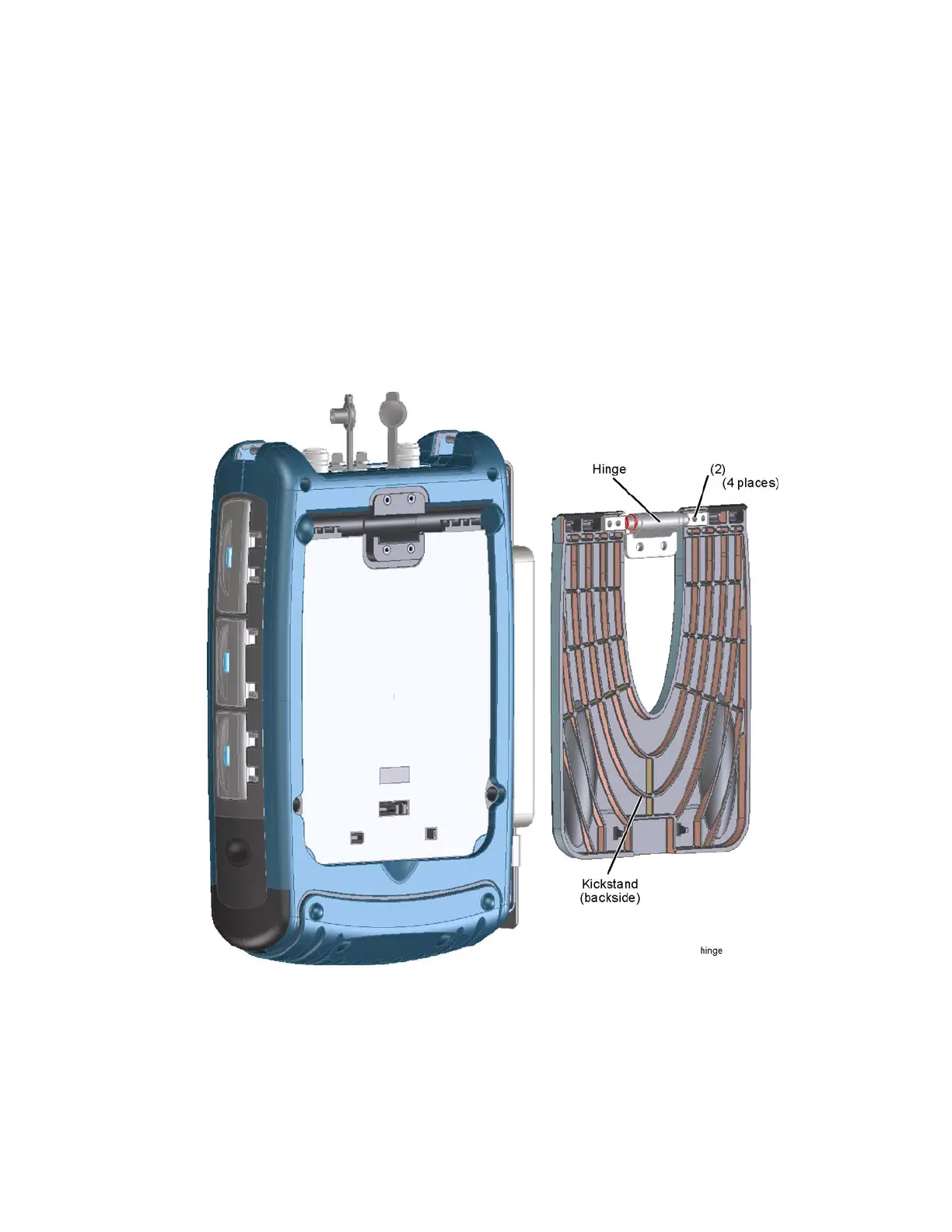

Figure 7-3 Replacing the Hinge
