469
Keysight Handheld Analyzers
N99xxA User’s Guide

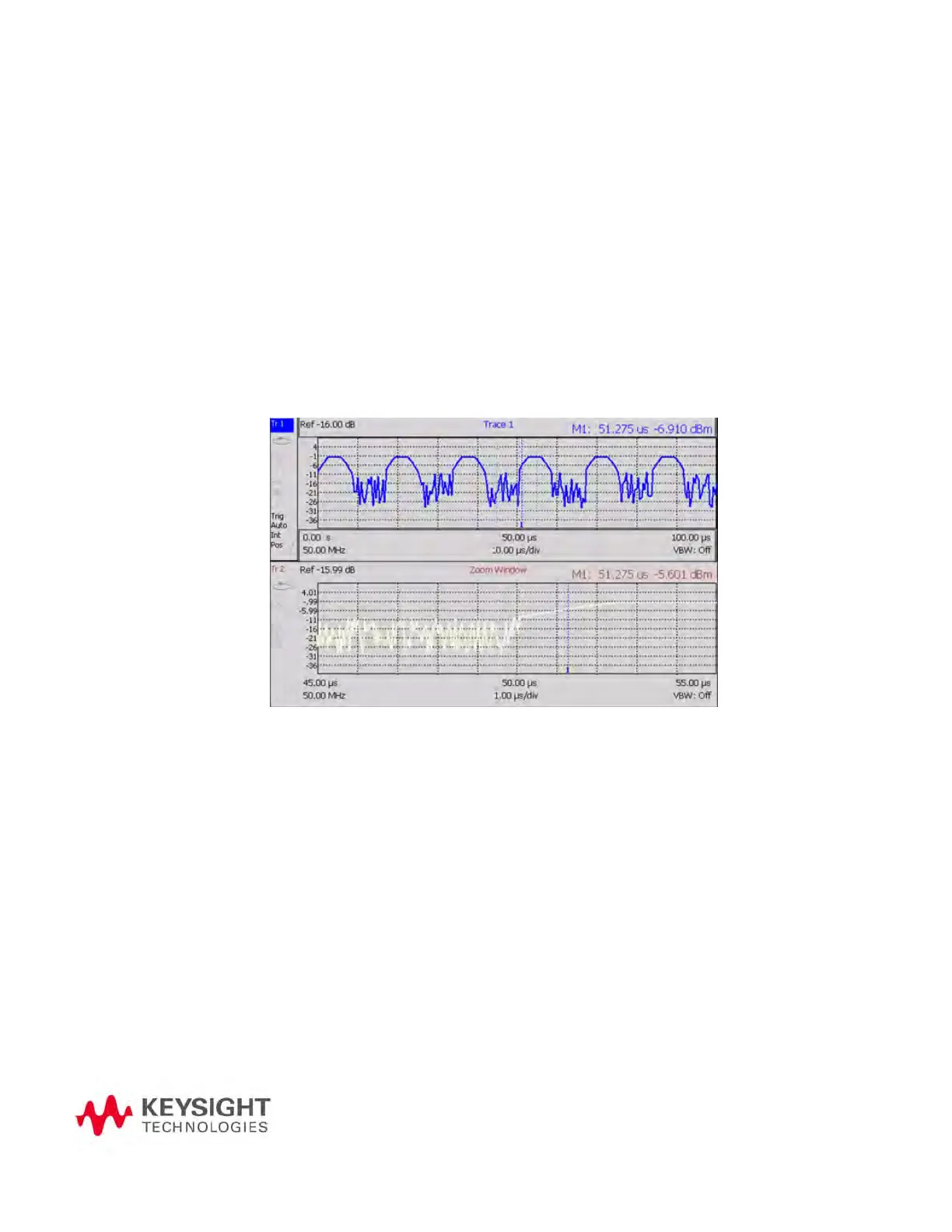

22 Pulse Measurements Mode – Option 330
Pulsed power meter measurements, available with Option 330, are made with
Keysight U2020 X-Series USB Peak Power Sensors. These sensors are capable
of detecting, measuring, and storing data from a train of pulses at the RF input.
This data is queried from the USB Power Sensor and displayed on the FieldFox
screen. You can then analyze the data using several selectable settings.
In this Chapter
“Supported Power Sensors” on page 471
“Measurement Selection” on page 472
“Frequency / Time” on page 472
“Zoom Window” on page 473
“Scale” on page 474
“Averaging ” on page 474
“Video Bandwidth” on page 475
“Single or Continuous Measure” on page 475
“Resolution” on page 476
