290 Keysight CXG, EXG, and MXG X-Series Signal Generators Programming Guide
Creating and Downloading Waveform Files
Programming Examples

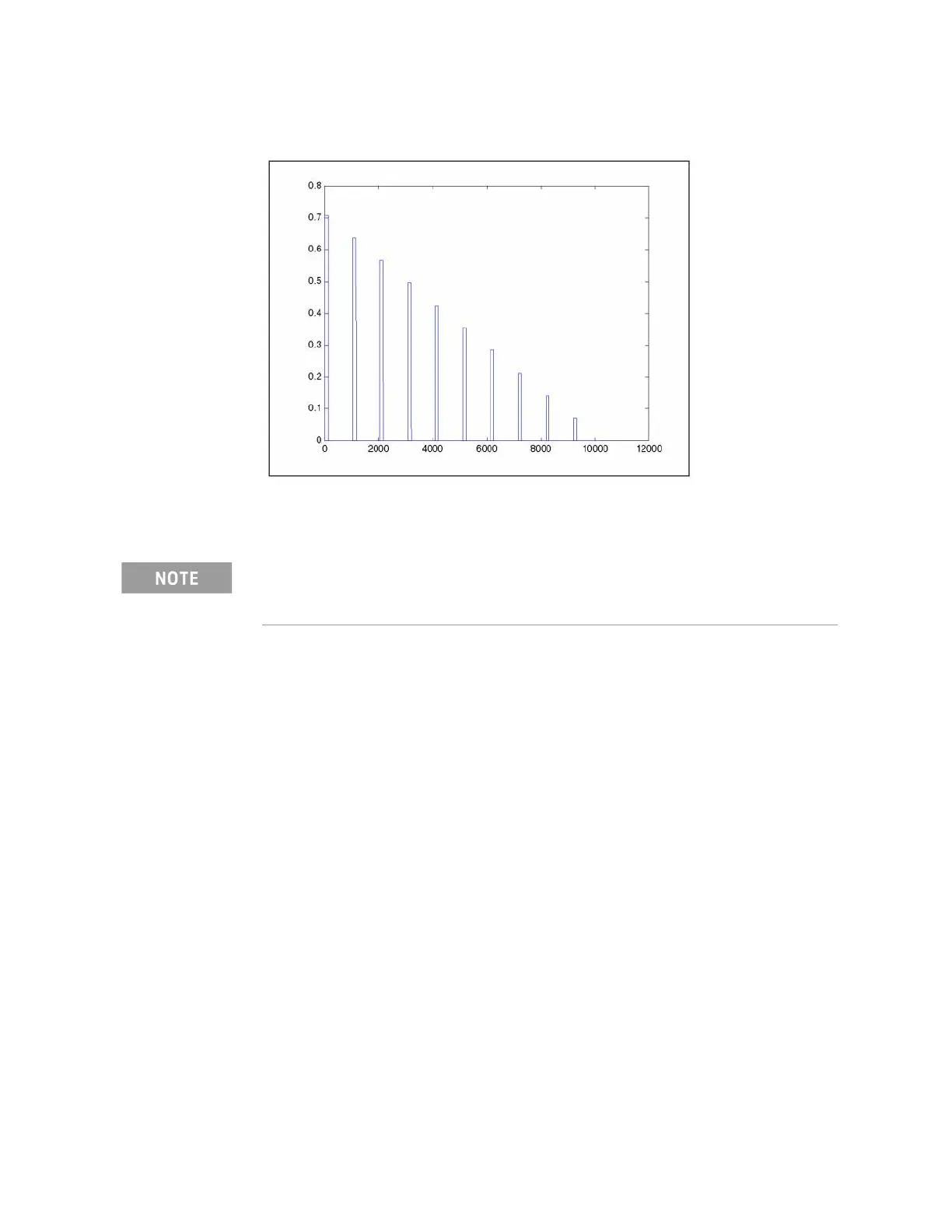

Figure 5-2 Simulated Plot of In–Phase Signal
The following additional Matlab M–file pulse programming examples are also
available on the Documentation CD–ROM for your signal generator:
barker.m This programming example calculates and downloads
an arbitrary waveform file that simulates a simple 7–bit
barker RADAR signal to the vector signal generator.
chirp.m This programming example calculates and downloads
an arbitrary waveform file that simulates a simple
compressed pulse RADAR signal using linear FM chirp
to the vector signal generator.
FM.m This programming example calculates and downloads
an arbitrary waveform file that simulates a single tone
FM signal with a rate of 6 KHz, deviation of =/–
14.3 KHz, Bessel null of dev/rate=2.404 to the vector
signal generator.
nchirp.m This programming example calculates and downloads
an arbitrary waveform file that simulates a simple
compressed pulse RADAR signal using non–linear FM
chirp to the vector signal generator.
pulse.m This programming example calculates and downloads
an arbitrary waveform file that simulates a simple
pulse signal to the vector signal generator.
For the Keysight X-Series signal generator, the SOURce:FREQuency
<value>
value must be changed as required in the following programs.
For more information on frequency limits, refer to the Data Sheet.
