74 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Install clamps onto the ferrite beaded cables
3. Install clamps onto bias cables as shown.
Refer to Figure 45 and to Figure 46 on page 75.

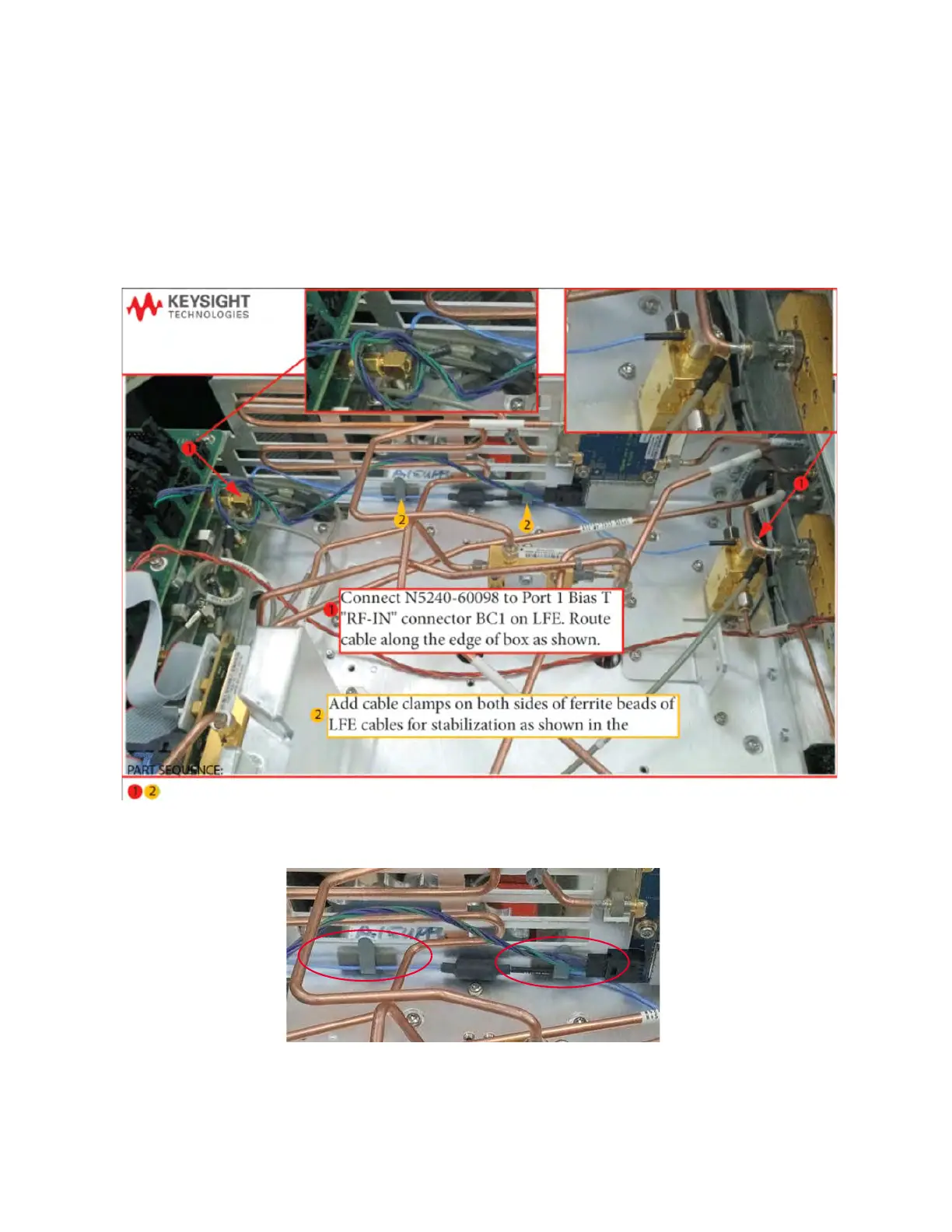

Figure 45 Install the clamps onto the port 1 bias cables (N5240-60097 (x4) and
1400-1334 x2) as shown.
Close up example of clamps
installed on a bias cable
