22 Keysight N5991 HDMI Frame Generator User Guide
3 Using the Software
Then, click to edit the corresponding value from the list of “Binary Value”
or “Hex Value” of a packet. Packet configurations can also be saved to a
file using “Export...” and loaded from a file into this dialog using the
“Import...” button.
Click “Close” to exit the “Packet Viewer/Editor” dialog. Once the dialog is
closed, make sure to click the ‘Set’ button in the main window for the
changes to take effect.
Video Content
You can set the video content in the center of the right-hand side of the
Frame Generator main window. This section provides control of the
parameters that define the horizontal color gradient. Note that these
parameters are only available for TMDS Sink testing.
This section offers the following basic options:
Default
A gray bar is created according to the protocols defined in the Compliance
Test Specification (CTS). See Figure 7.

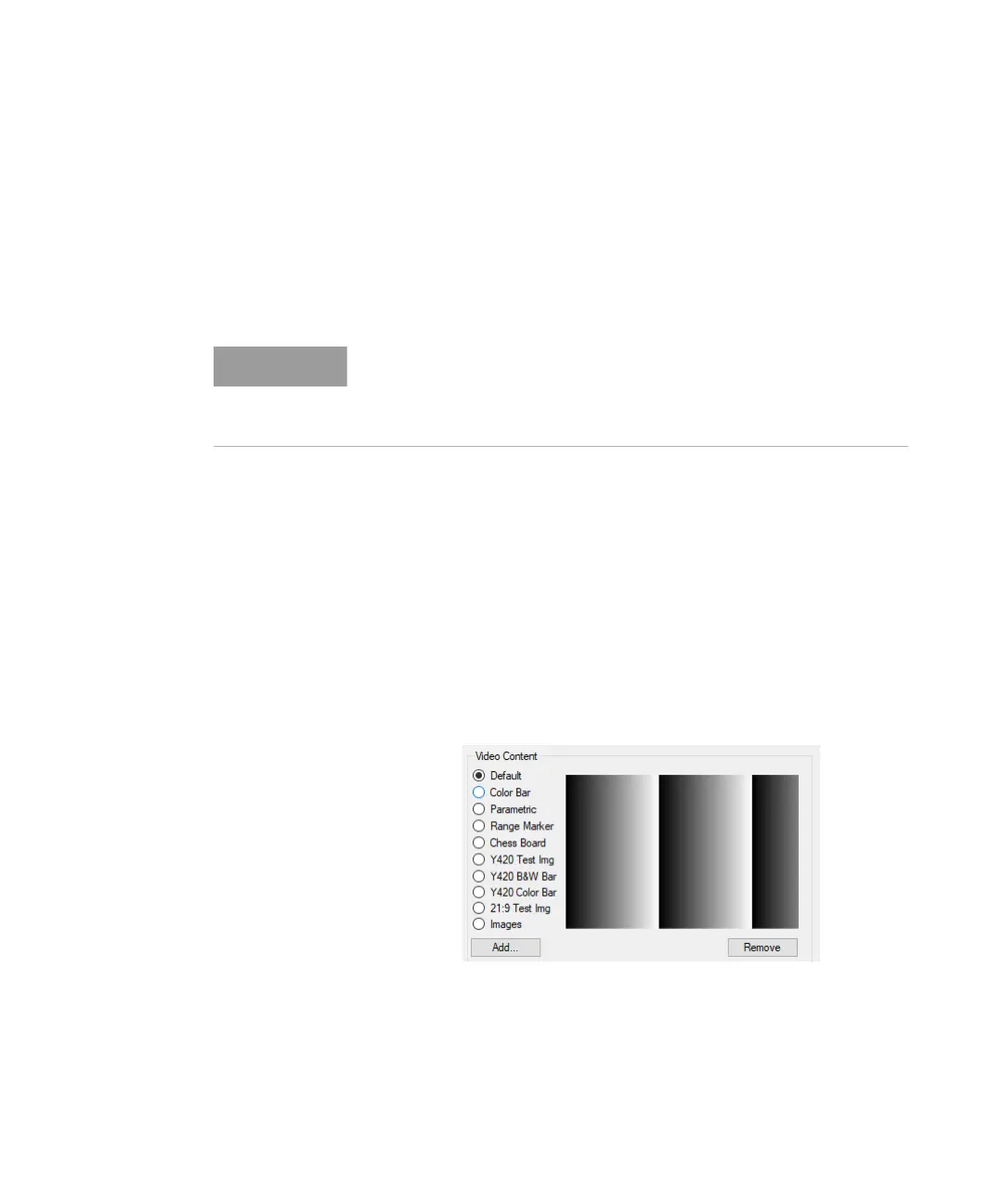

Figure 7 Preview for default Video Content
When a parameter is changed in the main window, which affects the
packet contents (such as, video mode, color mode, 3D mode, and so on),
all packets are reset to their defaults values in order to reflect the
parameter change.
