36 Keysight N5991 HDMI Frame Generator User Guide
3 Using the Software

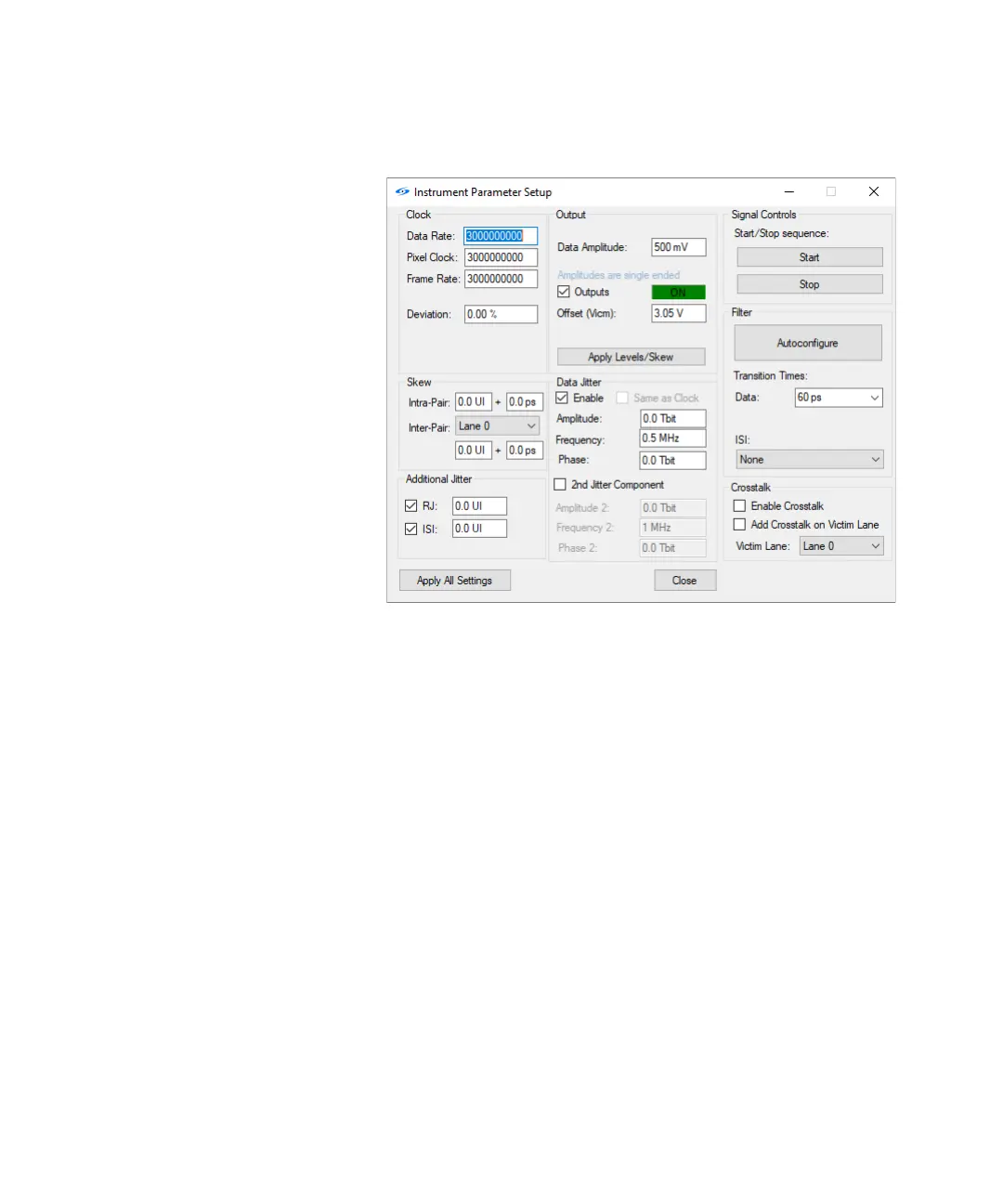

Figure 21 Instrument Parameter Setup dialog for FRL
The selection window comprises several configuration groups (see
Figure 20 and Figure 21):
1Clock
2 Clock Jitter (available for TMDS mode only)
3 Skew (available for FRL mode only)
4 Additional Jitter (available for FRL mode only)
5 Data Jitter
6 Output
7 Signal Controls
8Filter
9 Crosstalk (available for FRL mode only)
Following is the description of these configuration groups:
• Clock—The Clock group allows you to modify the HDMI clock setup,
either by means of the Data Rate, the corresponding Pixel Clock, Frame
Rate or Deviation. Changing any of these parameters auto-calculates
the value for others.
