5. Refer to Figure 16. Line up and carefully attach the top overlay N9020-80163 over the lower
overlay.
6. Press firmly down over the entire surface area of the top overlay.

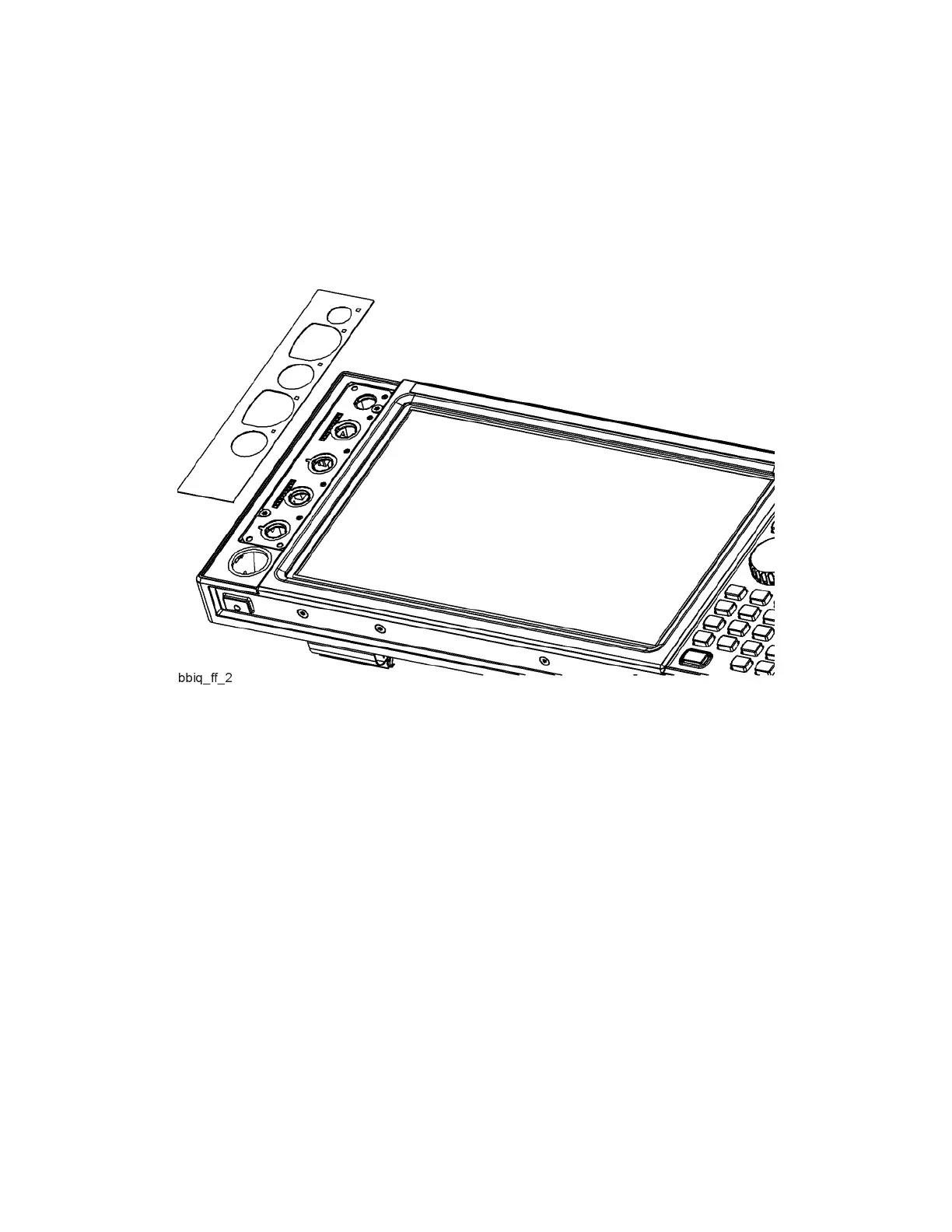

Figure 16 Overlay Alignment
