Installation Note N9032-90007 25
Solid State Disk Drive
FPGA Code Update
There is FPGA program code on many different assemblies inside of the instrument, and all of these
must be a compatible version with the instrument software revision. In order to ensure that this
requirement is met you need to either install the latest software version on all disk drives used with
the instrument or run an FPGA update program. If this program detects that there are assemblies
that need to be updated it will update them to the correct version.
Updating the Instrument FPGA Code
1. Connect a USB mouse and keyboard to available instrument USB ports.
2. Using the mouse, select Start, My Computer. Navigate to the following folder:
C:\Program Files\Agilent\SignalAnalysis\Physics
3. In this folder find and execute the file named:
FPGA_Prog.bat

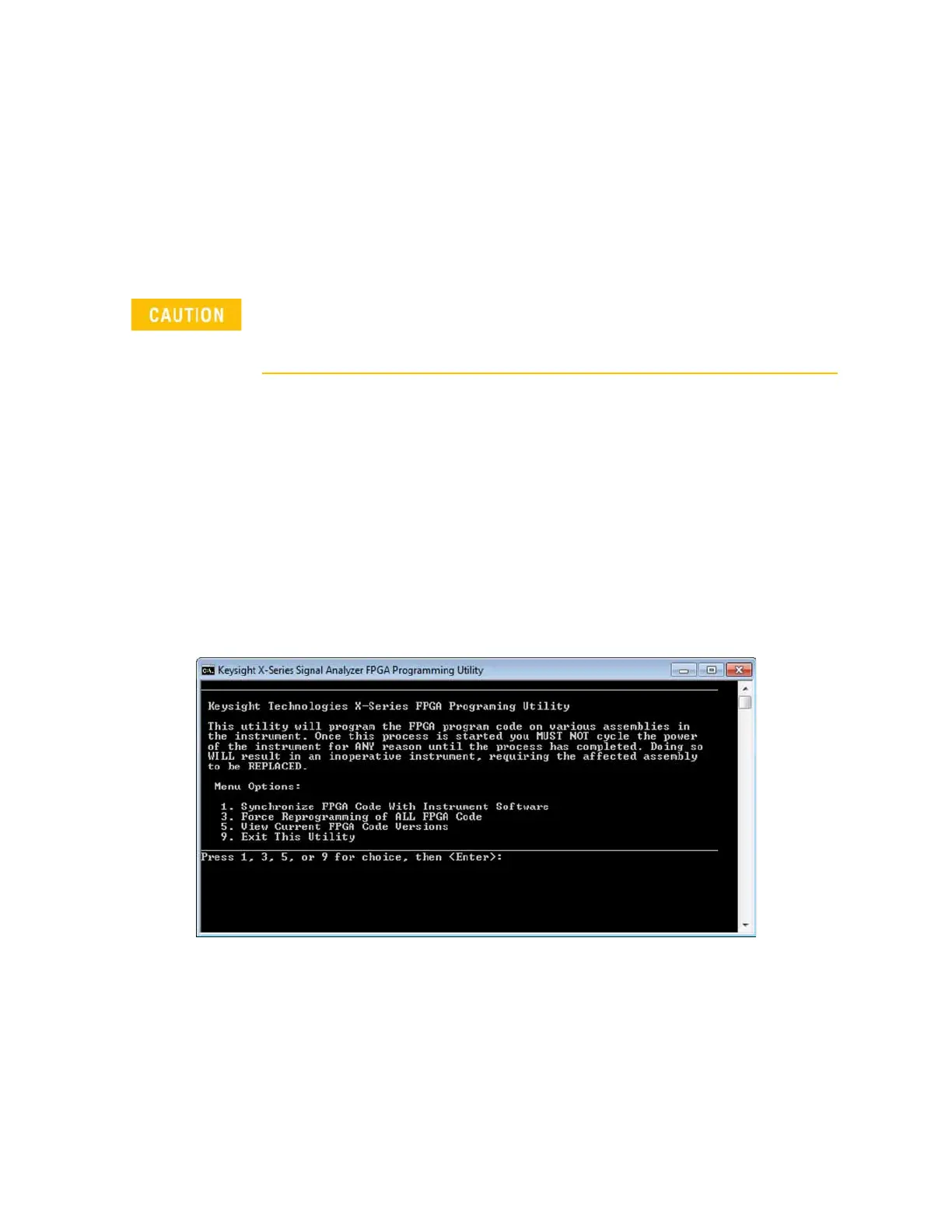

4. The FPGA Programming Utility will start and a window as shown in Figure 15 will appear.
Figure 15 FPGA Programming Utility
5. To program the FPGA code enter 1 and press Enter. You will need to confirm this selection by
selecting 1 and Enter one more time.
6. The programming of the FPGA code could take a few minutes to complete. Once it has finished
the instrument will reboot itself to use the new code.
Once you start the FPGA programming process you MUST NOT interrupt the process for any
reason. This would include turning the instrument off or unplugging the power cord to the
instrument. Doing so will result in an inoperative instrument, requiring the affected assembly to
be replaced.
