Keysight DAQ970A Service Manual

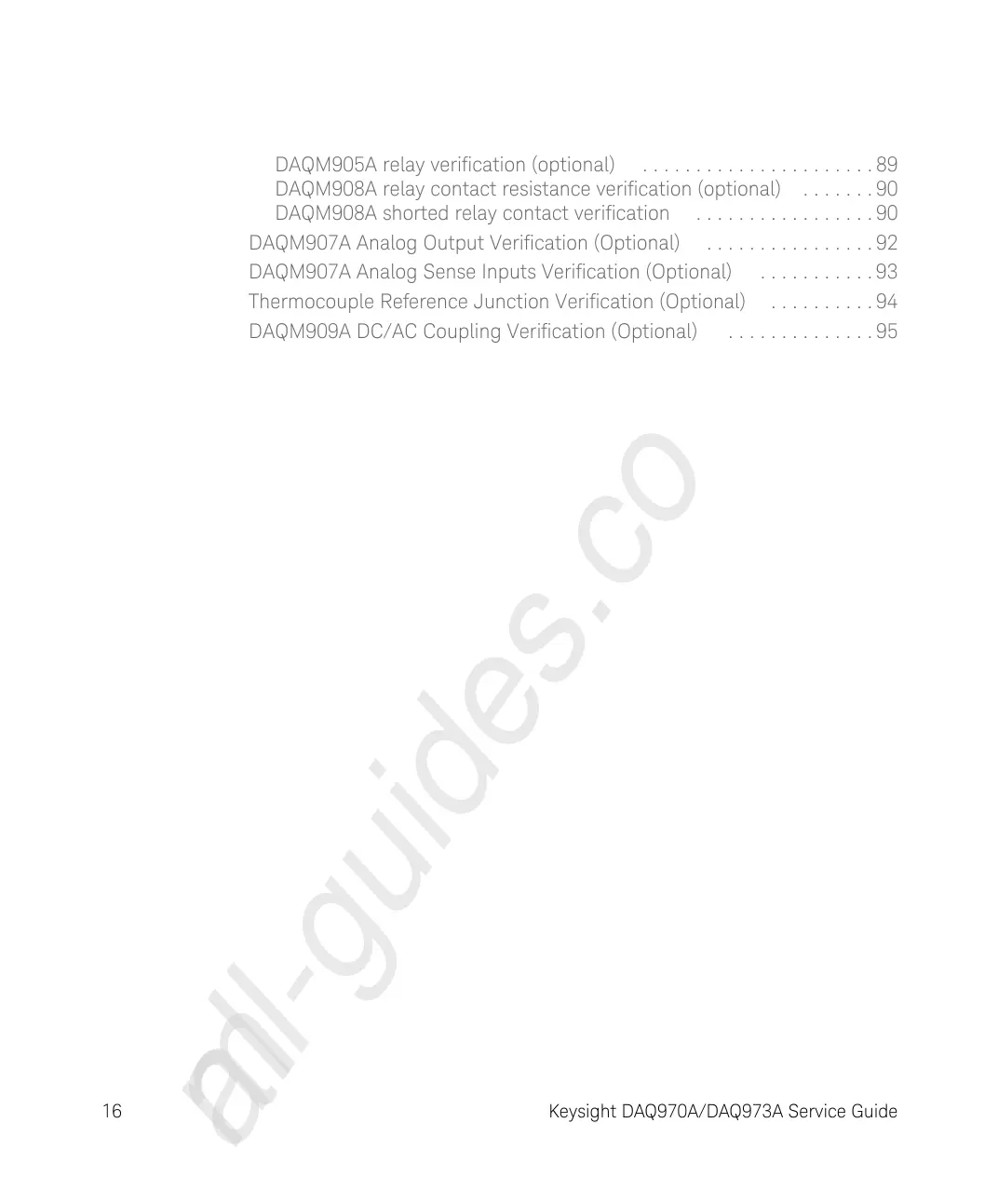

16 Keysight DAQ970A/DAQ973A Service Guide
DAQM905A relay verification (optional) . . . . . . . . . . . . . . . . . . . . . . 89
DAQM908A relay contact resistance verification (optional) . . . . . . . 90
DAQM908A shorted relay contact verification . . . . . . . . . . . . . . . . . 90
DAQM907A Analog Output Verification (Optional) . . . . . . . . . . . . . . . . 92
DAQM907A Analog Sense Inputs Verification (Optional) . . . . . . . . . . . 93
Thermocouple Reference Junction Verification (Optional) . . . . . . . . . . 94
DAQM909A DC/AC Coupling Verification (Optional) . . . . . . . . . . . . . . 95
All manuals and user guides at all-guides.com
all-guides.com

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
