Keysight DAQ970A Service Manual

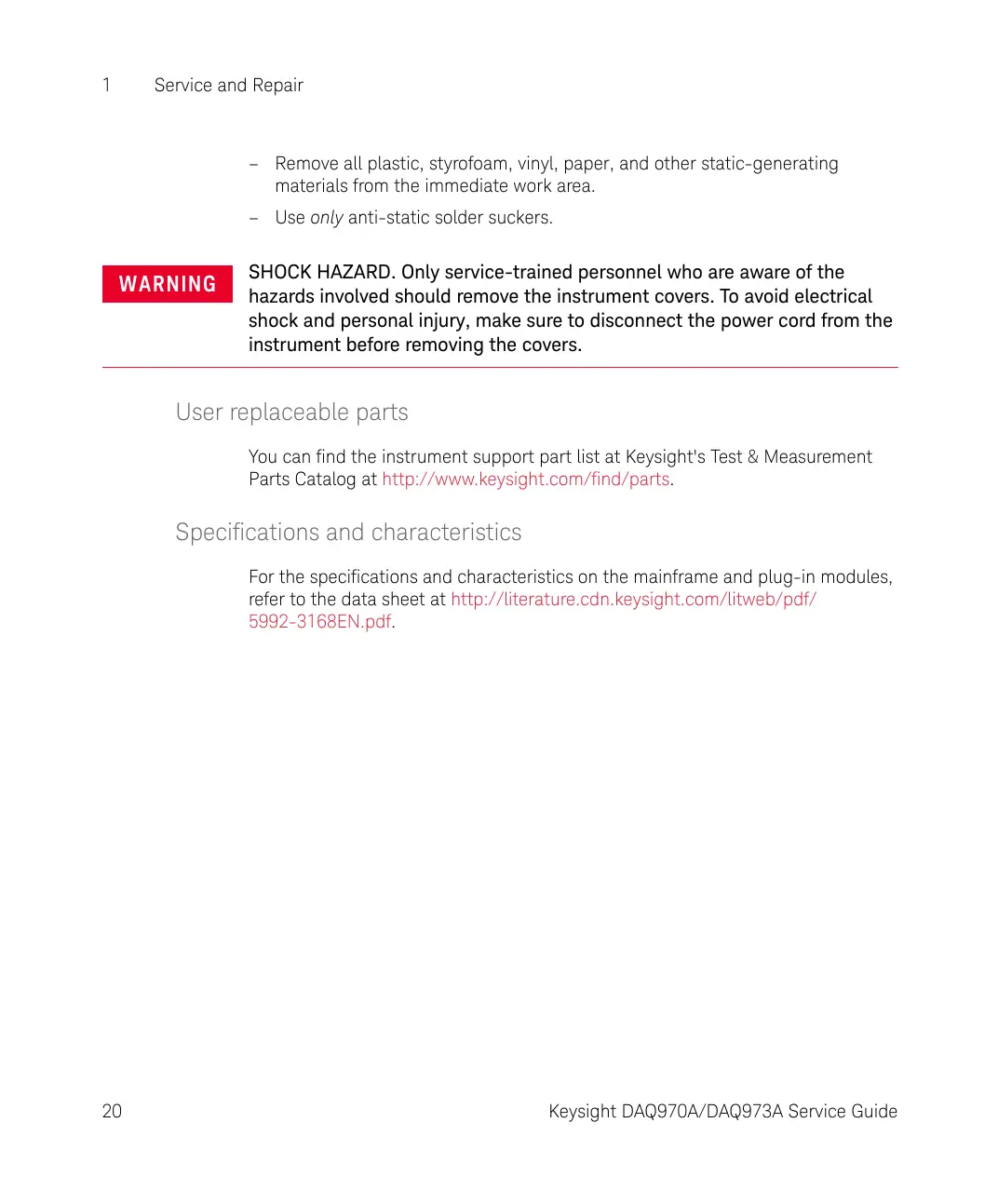

1 Service and Repair
20 Keysight DAQ970A/DAQ973A Service Guide
– Remove all plastic, styrofoam, vinyl, paper, and other static-generating
materials from the immediate work area.
– Use only anti-static solder suckers.
User replaceable parts
You can find the instrument support part list at Keysight's Test & Measurement
Parts Catalog at http://www.keysight.com/find/parts.
Specifications and characteristics
For the specifications and characteristics on the mainframe and plug-in modules,
refer to the data sheet at http://literature.cdn.keysight.com/litweb/pdf/
5992-3168EN.pdf.
WARNING
SHOCK HAZARD. Only service-trained personnel who are aware of the
hazards involved should remove the instrument covers. To avoid electrical
shock and personal injury, make sure to disconnect the power cord from the
instrument before removing the covers.
All manuals and user guides at all-guides.com

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
