2 Calibration Procedures
36 Keysight DAQ970A/DAQ973A Service Guide

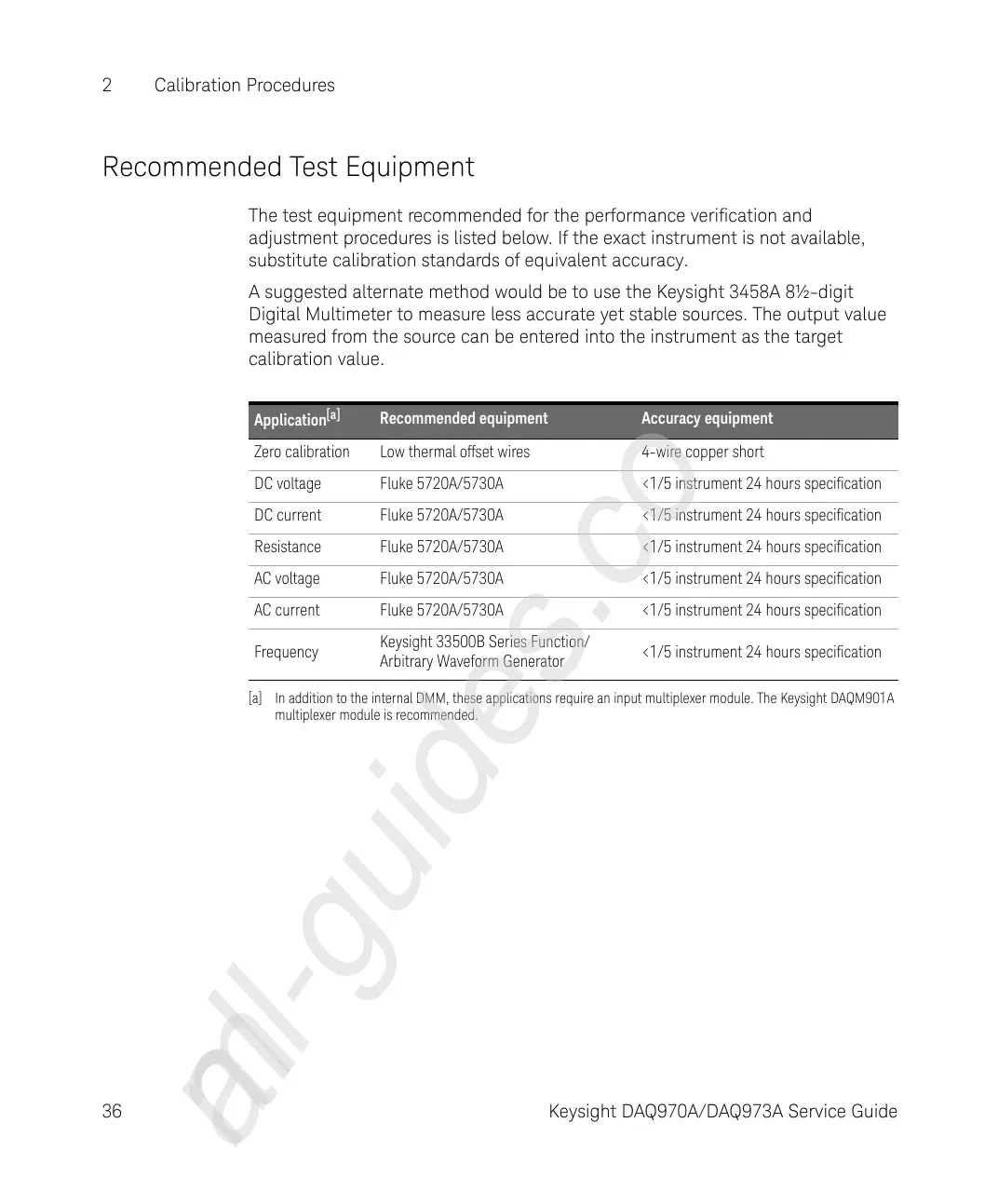

Recommended Test Equipment
The test equipment recommended for the performance verification and
adjustment procedures is listed below. If the exact instrument is not available,
substitute calibration standards of equivalent accuracy.
A suggested alternate method would be to use the Keysight 3458A 8½-digit
Digital Multimeter to measure less accurate yet stable sources. The output value
measured from the source can be entered into the instrument as the target
calibration value.
Application
[a]
[a] In addition to the internal DMM, these applications require an input multiplexer module. The Keysight DAQM901A
multiplexer module is recommended.
Recommended equipment Accuracy equipment
Zero calibration Low thermal offset wires 4-wire copper short
DC voltage Fluke 5720A/5730A <1/5 instrument 24 hours specification
DC current Fluke 5720A/5730A <1/5 instrument 24 hours specification
Resistance Fluke 5720A/5730A <1/5 instrument 24 hours specification
AC voltage Fluke 5720A/5730A <1/5 instrument 24 hours specification
AC current Fluke 5720A/5730A <1/5 instrument 24 hours specification
Frequency
Keysight 33500B Series Function/
Arbitrary Waveform Generator
<1/5 instrument 24 hours specification
All manuals and user guides at all-guides.com
all-guides.com

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
