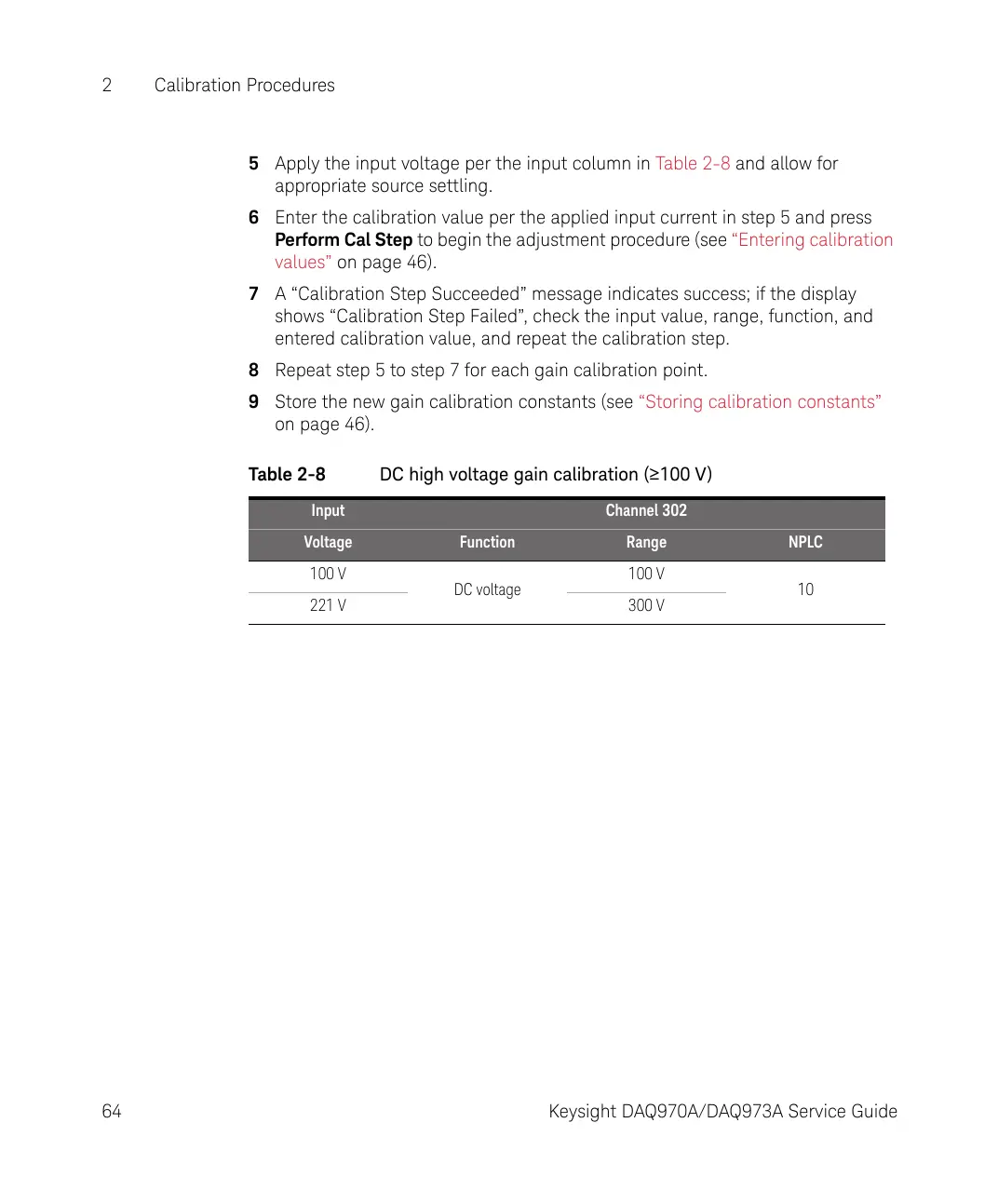

2 Calibration Procedures
64 Keysight DAQ970A/DAQ973A Service Guide
5 Apply the input voltage per the input column in Table 2-8 and allow for
appropriate source settling.
6 Enter the calibration value per the applied input current in step 5 and press
Perform Cal Step to begin the adjustment procedure (see “Entering calibration
values” on page 46).
7 A “Calibration Step Succeeded” message indicates success; if the display
shows “Calibration Step Failed”, check the input value, range, function, and
entered calibration value, and repeat the calibration step.
8 Repeat step 5 to step 7 for each gain calibration point.
9 Store the new gain calibration constants (see “Storing calibration constants”
on page 46).
Table 2-8 DC high voltage gain calibration (¡100 V)
Input Channel 302
Voltage Function Range NPLC
100 V
DC voltage
100 V
10
221 V 300 V
All manuals and user guides at all-guides.com

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
