07 | Keysight | E5071C Network Analyzer - Conguration Guide
Option 1E5 High stability time base
Option 1E5 provides the following stability:
CW accuracy: ±1 ppm (specication)
Source stability: ±0.05 ppm (5 °C to 40 °C typical),
± 0.5 ppm/year
Hard disk drive options
2
Option 019 Standard hard disk drive
Option 019 provides a xed hard disk drive. The removable disk
drive is not available.
Option 017 Removable hard disk drive

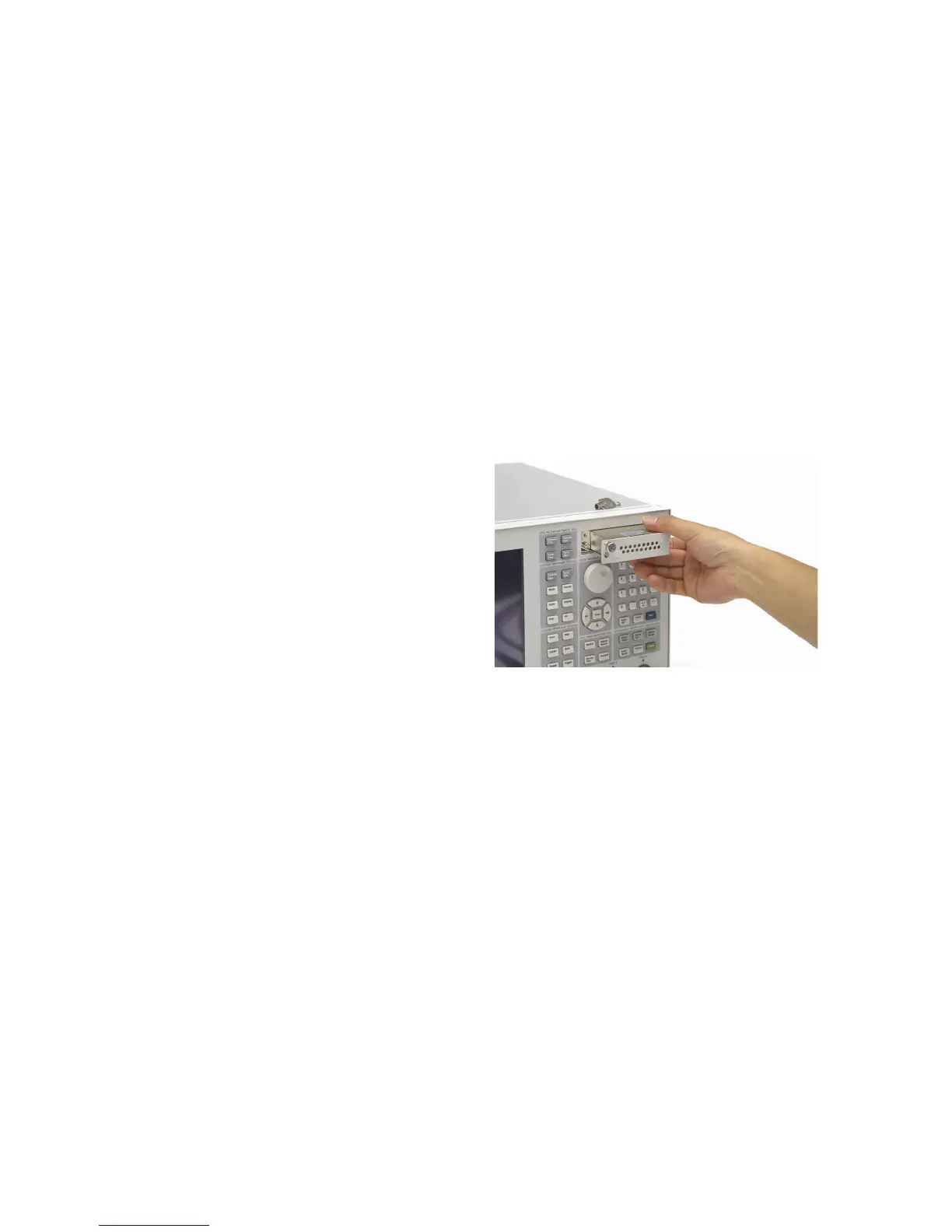

Option 017 provides a removable hard disk drive. You can remove
or replace the hard disk drive for secure area operations. If a
spare disk is needed, order E5071CU-058 Solid state drive kit.
Certication options
Option 1A7 ISO 17025 compliant calibration
Option 1A7 provides a complete set of measurements which test
the unit to manufacturer’s published specications. Includes cali-
bration label, ISO 17025 calibration certicate, and data report,
and measurement uncertainties and guardbands on all customer
specications. Conforms to ISO 17025 and ISO 9001.
Option A6J ANSI Z540 compliant calibration
Option A6J provides a complete set of measurements which test
the unit to manufacturer’s published specications. Includes
pre- and post-adjustment data and measurement uncertainty
information compliant with the ANSI/NCSL Z540 standard.
1. When using an ECal module with MWA calibration wizard, a 4-port ECal
module (i.e. N4431B, N4433A) is required.
2. A solid state drive is used as storage from Sep 2012.
ENA Network Analyzer (E5071C)
Additional software options
Option TDR Enhanced time domain analysis
Option TDR enables the ENA to view reection and transmission
responses in the time domain using a simple and intuitive graphi-
cal user interface. Use time domain to tune lters, gate out the
response of xtures and cables, characterize the impedance of
transmission lines, and more.
Option 010 Time domain analysis
Option 010 enables the ENA to view reection and transmission
responses in the time domain. Use time domain to tune lters,
gate out the response of xtures and cables, characterize the
impedance of transmission lines, and more.
Option 008 Frequency offset mode
Option 008 enables the ENA to set the receiver frequencies
independently from where the source frequency is tuned. This
ability is important for harmonic distortion measurements and
for measuring frequency converting devices such as mixers and
converters. Advanced calibration techniques for the ENA, such as
scalar mixer calibration (SMC) or vector mixer calibration (VMC),
require this option.
Option 790 Measurement Wizard Assistant
Option 790 provides a simple measurement procedure setup for
the 4-port ENA with a multiport test set such as the E5092A. The
software delivers an easy-to-use measurement wizard programs
including a calibration wizard setup
1
, which reduces operation
time for complicated, time-consuming multiport measurements.
Time base options
Option UNQ Standard stability time base
Option UNQ provides following stability:
CW accuracy: ±5 ppm (specication)
Source stability: ±5 ppm (5 °C to 40 °C typical)
