20 Keysight M8000 Series of BER Test Solutions Installation Guide
1 System Requirements
M8046A Analyzer Module
The M8046A module occupies single slot of the 5-slot M9505A/M9506A

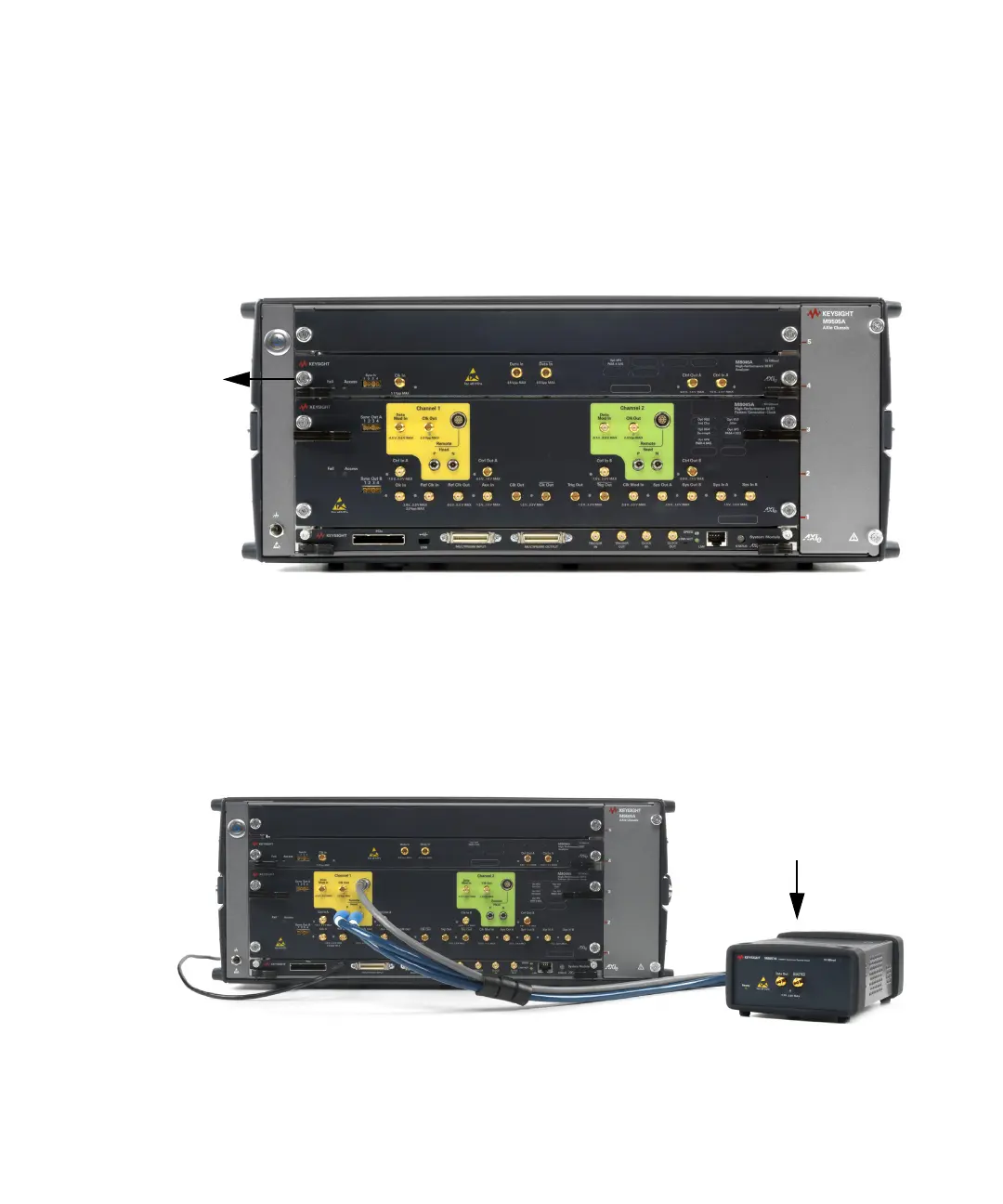

AXIe chassis. The following figure illustrates an M8045A module with
M8046A module installed in an M9505A/M9506A AXI chassis.
Figure 6 M8045A and M8046A configuration
M8057A/B Remote Head
The M8057A/B remote head is connected to each channel of M8045A
module, using the matched pair of cables. It helps in minimizing signal
degradations caused by lossy channels. The following figure illustrates an
M8057A/B remote head connected with one channel of M8045A module.
Figure 7 M8045A, M8046A and M8057A/B configuration
