Keysight M8000 Series of BER Test Solutions Installation Guide 61
Installing Modules 2
To Connect the M8050A Remote Heads
Remote Heads for M8042A Pattern Generator
The M8058A/M8059A remote head is used in combination with the
M8042A Pattern Generator. The 64 GBd M8058A remote head is used to
allow close connection to the device under test for symbol rates up to 64
GBd. The 120 GBd M8059A remote head is used to allow close connection
to the device under test for symbol rates up to 120 GBd.
The three cables on the back side of the remote heads are used to connect
with the M8042A pattern generator module and are not removable.
The M8058A/M8059A remote head is connected to each channel of
M8042A module. Connect the M8058A/M8059A to the M8042A remote
head controls (P and N) as shown in the
Figure 46 on page -61.
Remote Head for M8043A Error Analyzer
The M8052A remote is used in combination with the M8043A Error
Analyzer.
The two cables on the back side of the remote head are used to connect
with the M8043A error analyzer and are not removable. Connect the
M8052A to the M8043A remote head controls as shown in the
Figure 46
on page -61.

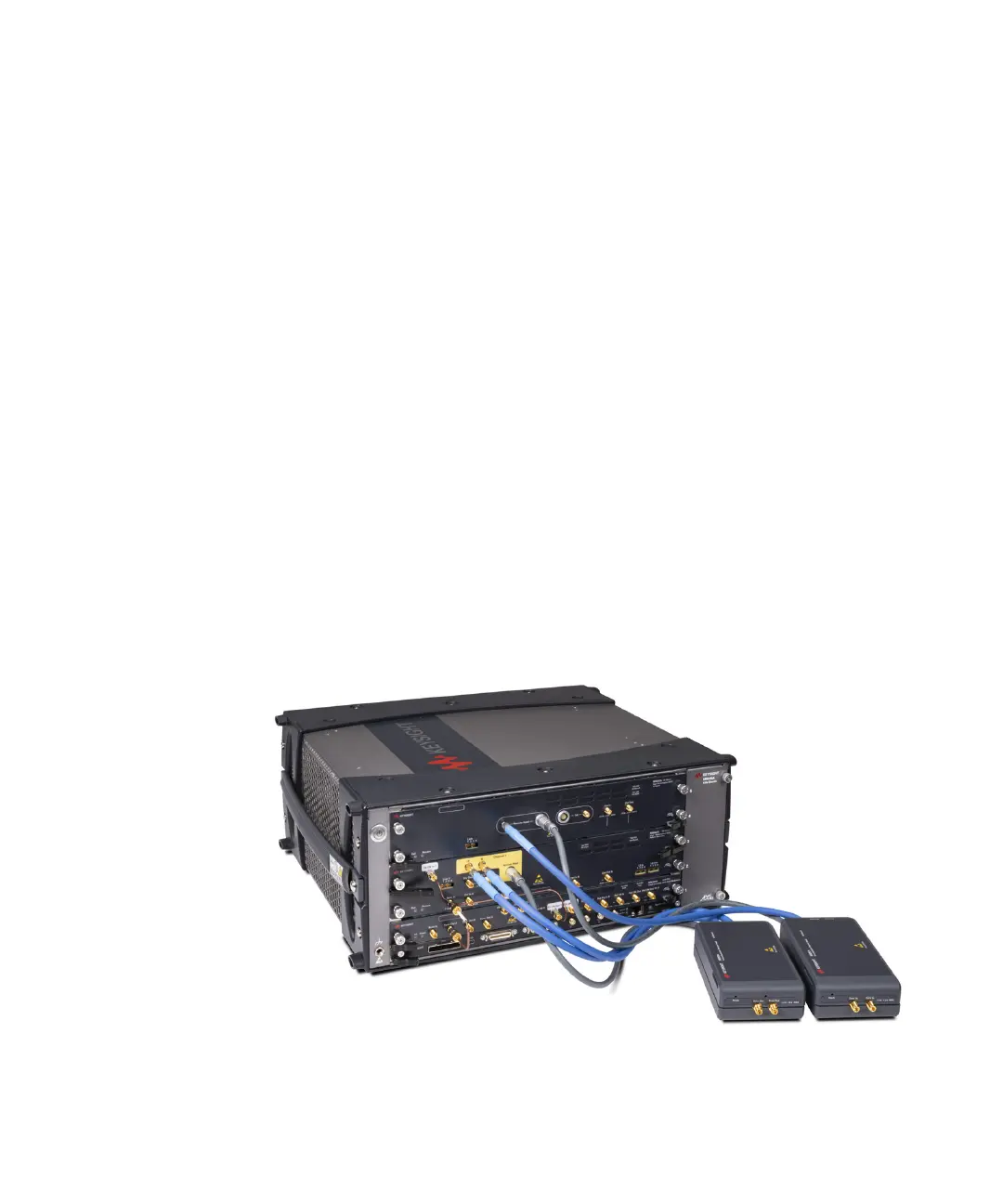

Figure 46 Installing remote heads to M8050A modules
