3 VMA Mode
3.1 Digital Demod Measurement
Demod Bits
Displays the demodulation bits.
Example
:DISP:DDEM:WIND2:DATA DBIT
Sets the second window data to Demod Bits

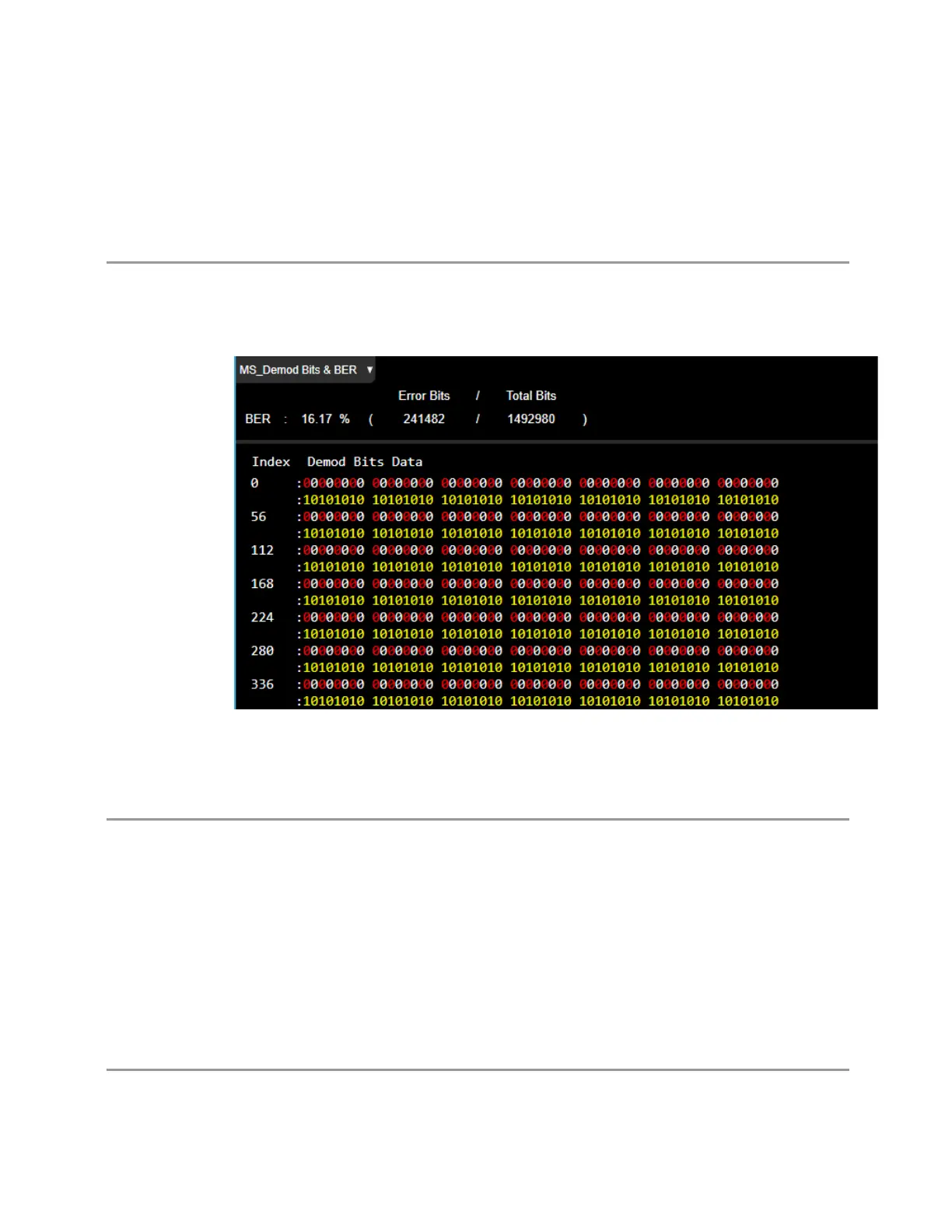

When Tx BER is turned on, this table includes BER results:
Frame Summary
This table shows the frame summary results.
Example
:DISP:DDEM:WIND2:DATA FRAM
Sets the second window data to Frame Summary
Demod Traces
Windows:
"IQ Meas Spectrum" on page 216 "FSK Meas Spectrum" on page 218
"IQ Meas Time" on page 215 "FSK Meas Time" on page 217
Dual-window view consists of the above two windows.
Example
:DISP:DDEM:VIEW DTR
Vector Modulation Analyzer Mode User's &Programmer's Reference 226
