8 Trigger
8.1 Trigger

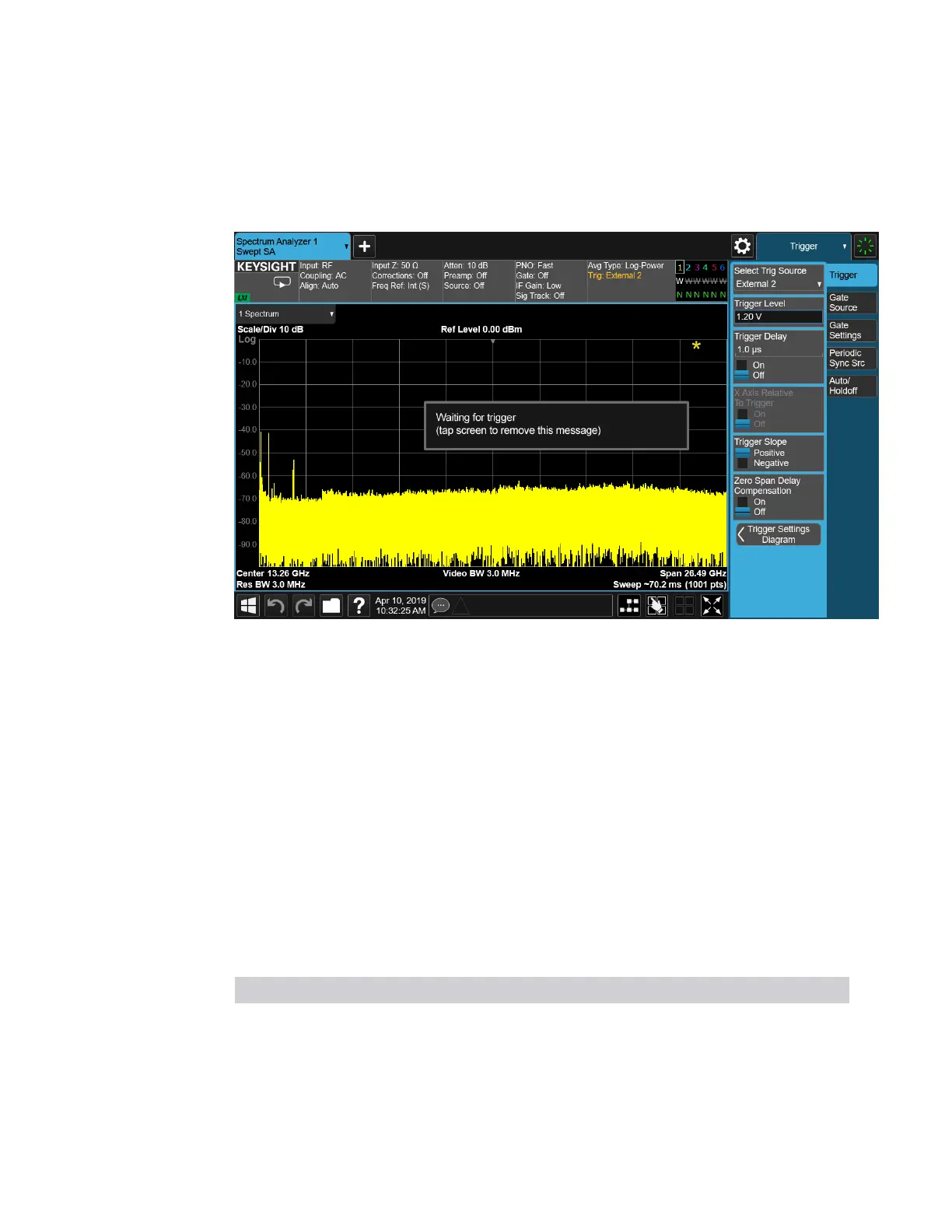

message will appear that says, “Waiting for trigger”. The trigger annotation in the
Meas Bar will also turn amber, as shown below:
Tap anywhere on the screen (except on the message itself) to clear the popup. The
annotation will remain amber until the trigger conditions are satisfied.
List of available Trigger sources
The tables show which Trigger sources are available for which Modes and
Measurements, with the following exceptions:
–
the Noise Figure Mode does not support Triggering at all
–
the Disturbance Analyzer measurement in the EMI Mode does not support
Triggering
–
the Tx Band Spur measurement in the GSM/EDGE Mode does not support
Triggering
–
For some models (like N9042B) with ADC trigger: some IF Paths do not support
Video trigger, instead they support ADC trigger
Source SCPI Availability
"Free Run" on page
2646
IMMediate
All Modes and measurements, except those
measurements that support no triggers at all
"Video/ADC" on page
2646
VIDeo
All Modes except RTSA and Pulse
