3 Spectrum Analyzer Mode
3.2 Swept SA Measurement
used to exclude peaks)
Preset
ALL
State Saved Saved in instrument state
More Information
If "Display Line" on page 270 is ON, the Peak Table can be selected to include all
peaks, or only those above the Display Line, or only those below the Display Line.

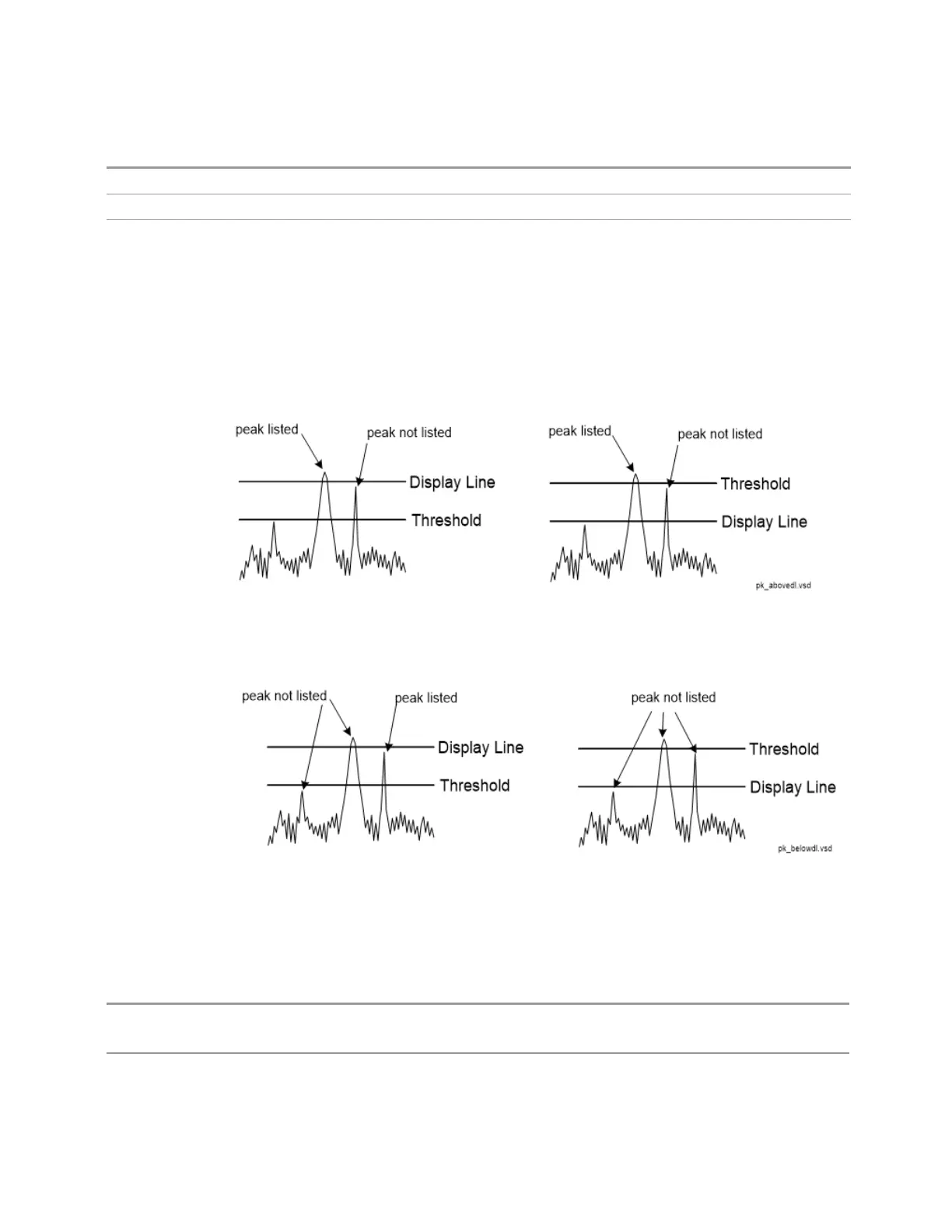

See the figures below to understand what happens if both Display Line and Peak
Threshold are ON.
Above Display Line Peak Identification
Below Display Line Peak Identification
Maximum Number of Peaks
Sets the maximum number of peaks shown in the Peak Table.
Remote Command
:CALCulate:MARKer:PEAK:MPEaks <max_peaks>
:CALCulate:MARKer:PEAK:MPEaks?
Example
:CALC:MARK:PEAK:MPE 50
Spectrum Analyzer Mode User's &Programmer's Reference 333
