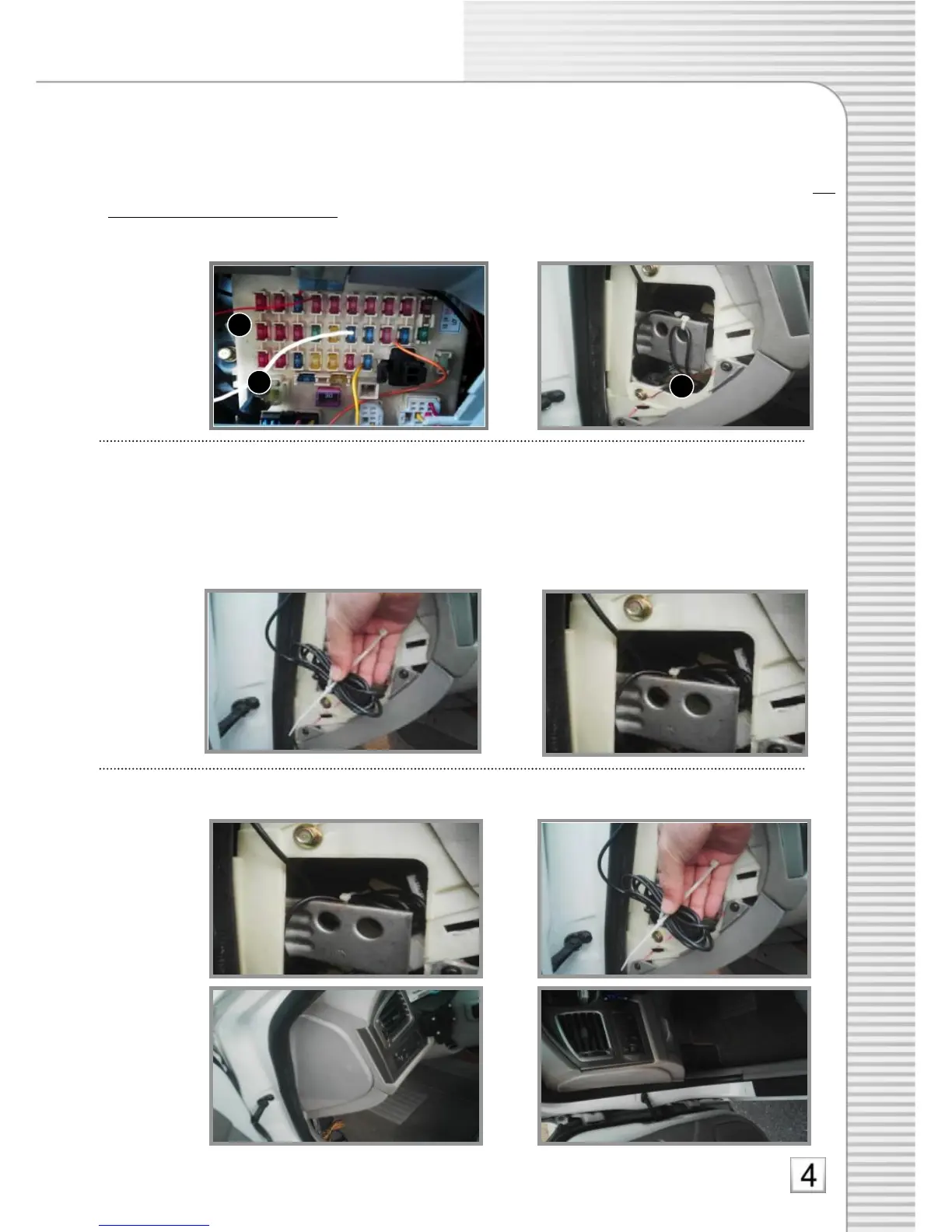

5. After keeping the cable neat, the next step is electrical installation.
• Connect the red line (1) to the fuse of the emergency light (any place is OK if power is supplied) and
connect the black line (2) to Ground.
• The white line (3) is the ignition line. After detaching the key, detect the car power Off and connect the
line to the fuse of the cigar jack. (A certain type of car supplies power with the key detached. In that
case, connect the ignition line to another place.)
6. Check whether all lines are well connected by supplying power to DR. Turn the power on
and after checking the power On, turn the power off. After one minute, it changes to the car
park monitoring mode. In that mode, the numbers on the display do not light. (Note that with
#1 switch On, the numbers on the display still light.) When the numbers light, check the
wiring condition again.
7. Finally, bind the lines tight by using the cable ties and attach the detached cases to original
positions.
