Keytroller Smarter - Product Installation Guide; General Installation Precautions; Fuse Box and APW2200 Placement

• The installation ways vary depending on the car type so see this page for simple installation.
• Installation must be done with the car key Off. If required, consult with an expert.

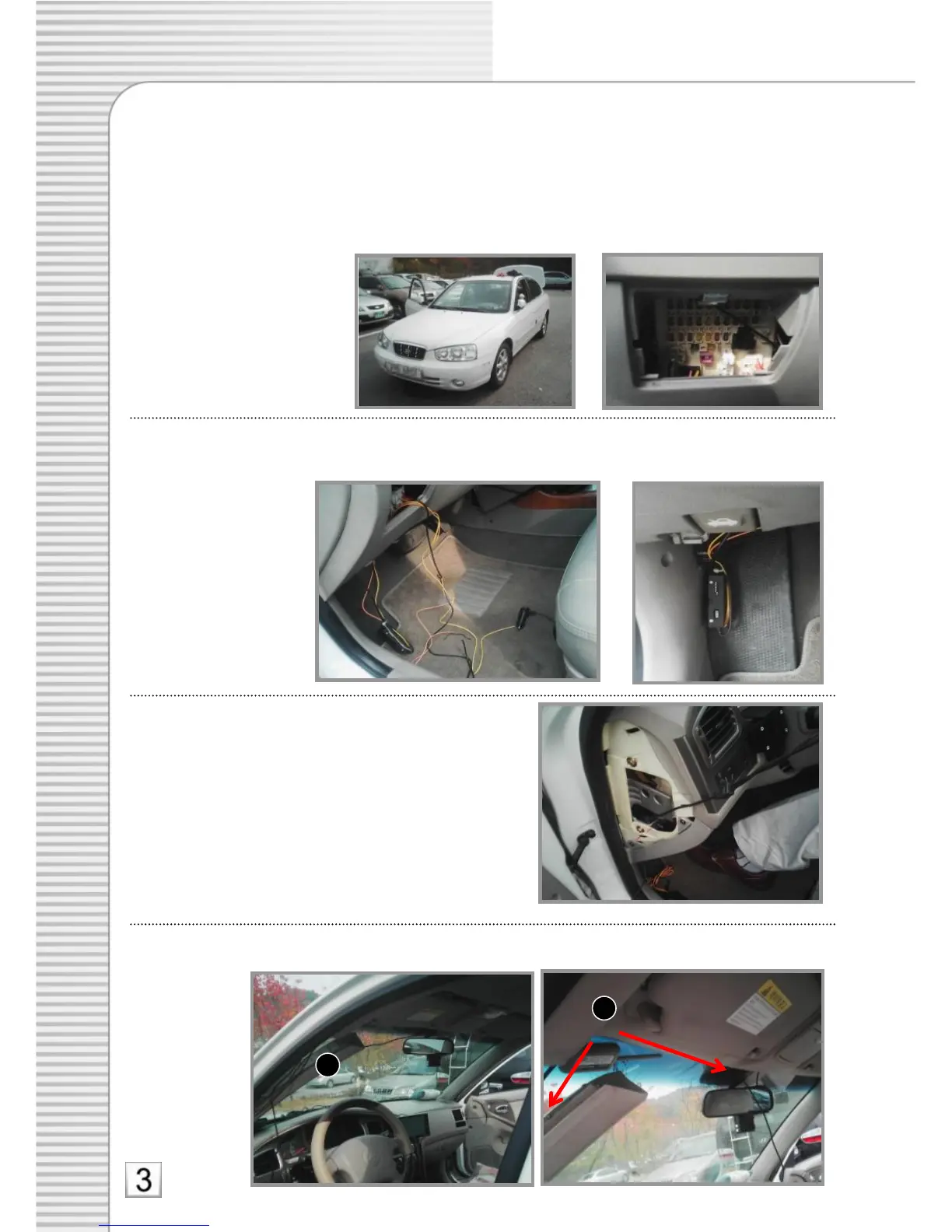

1. Check the location of the fuse box.
- Caution: For time setting, a time-worn battery may be discharged.
- It is recommended to upgrade the DR firmware to have the up-to-date one.
2. Determine the place to install APW2200.
The picture below shows the place near the brake pedal.
3. Determine the place to hide the wire and fix its
location to reach to DR.
4. After detaching A-pillar (1), insert the cable to the arrow direction (2) near the ceiling.
Product Installation
1
2
