KI Concerto - Data Infeed Location Details; 5-Wire Power Infeed to Building Connections

17
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
5-Wire Installation
Power Infeed to Building
Connections
Have a certified electrician hard-wire
the system power infeed to the building
power source according to the National
Electrical Code and any other applicable
local codes. See the chart above for
proper wiring connections to available
power.

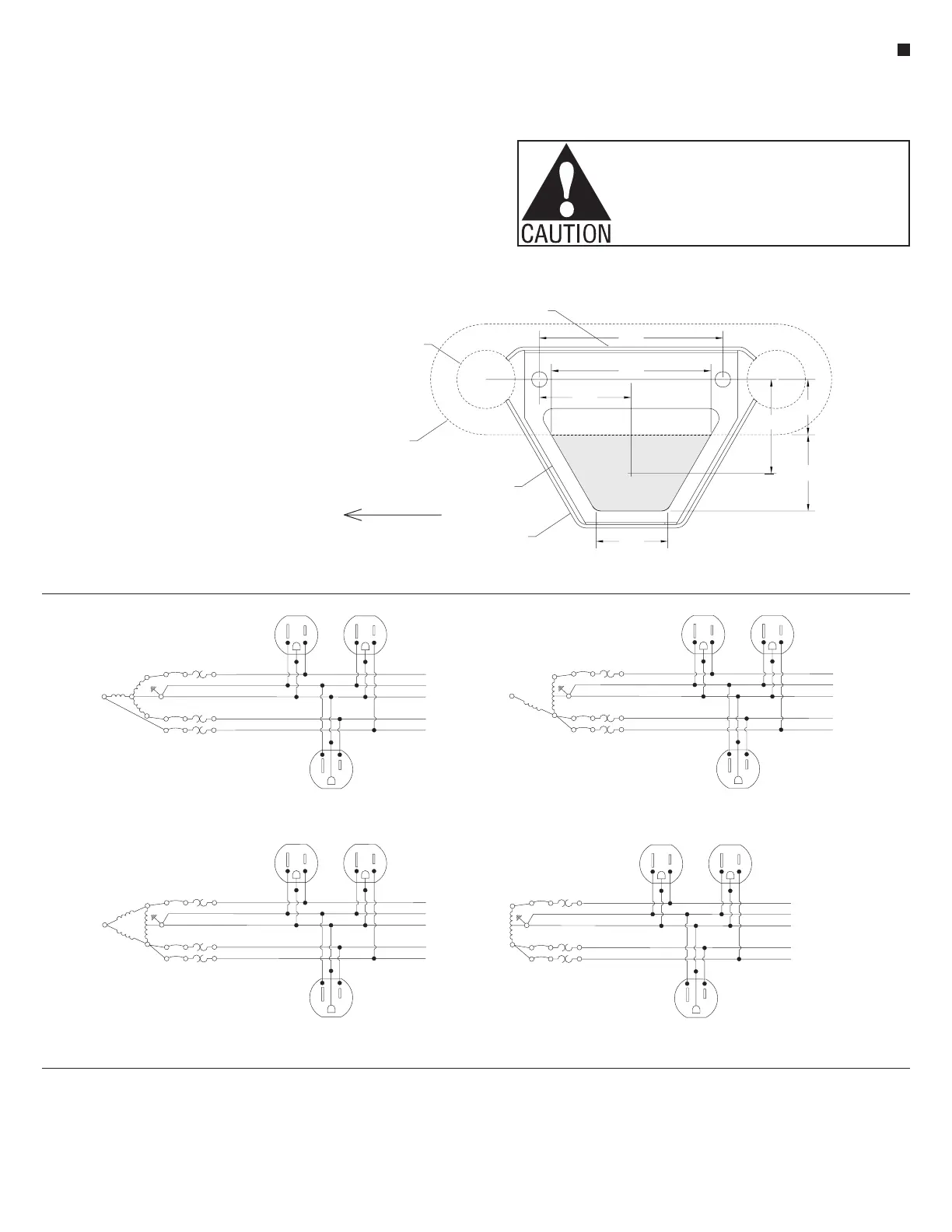

Section view at 3” above floor
1 /”
13
16
1 /”
13
16
data infeed
side cover
data bracket
front of room
floor flange
of upright
vertical tube
of upright
full-height
side cover
4 /”
3
4
4 /”
1
8
2 /”
3
8
2 /”
7
16
1 /”
7
16
1 /”
15
16
Data Infeed Location
The dimensions on the section view
show the location of the data infeed in
relation to the footprint of the upright.
The shaded trapezoid area represents
the usable data infeed area within the
housing and data infeed bracket. This
area will accommodate twenty-four
category 5 or category 7, four pair
twisted data wires per infeed location.
CIR. #1
CIR. #2
CIR. #3
120/208V WYE Three Phase
CIR. #1
CIR. #2
CIR. #3
120/240V Open Delta Single Phase
CIR. #1
CIR. #2
CIR. #3
120/240V Delta Single Phase
CIR. #1
CIR. #2
CIR. #3
120/240V Single Phase
