KI Concerto - Power Infeed Configurations and Connections; Power Infeed Harness Description; Concerto Right Power & Data Infeed Diagram; Concerto Left Power & Data Infeed Diagram

16
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
Power Infeed
The harness with 3-way modular
connector end and exposed wires
originates from the seat wireway,
routes into the end upright between
an end side cover and power infeed
side cover, goes through a 90° metal
connector inside the covers and out
through a ½” rigid straight coupler
at the left-hand, exterior of the power
infeed side cover (when seated). A 24”
length of ½” liquid-tight conduit is
supplied (to be cut to size) to house the
wires and connect between the rigid
straight coupler and the building source
power junction box on the floor, under
the seat. The building source power
junction box must be located under the
end seat, ideally 10” to 16” from the end
upright, and 2” to 4” from the
front-to-back centerline of the upright
base.

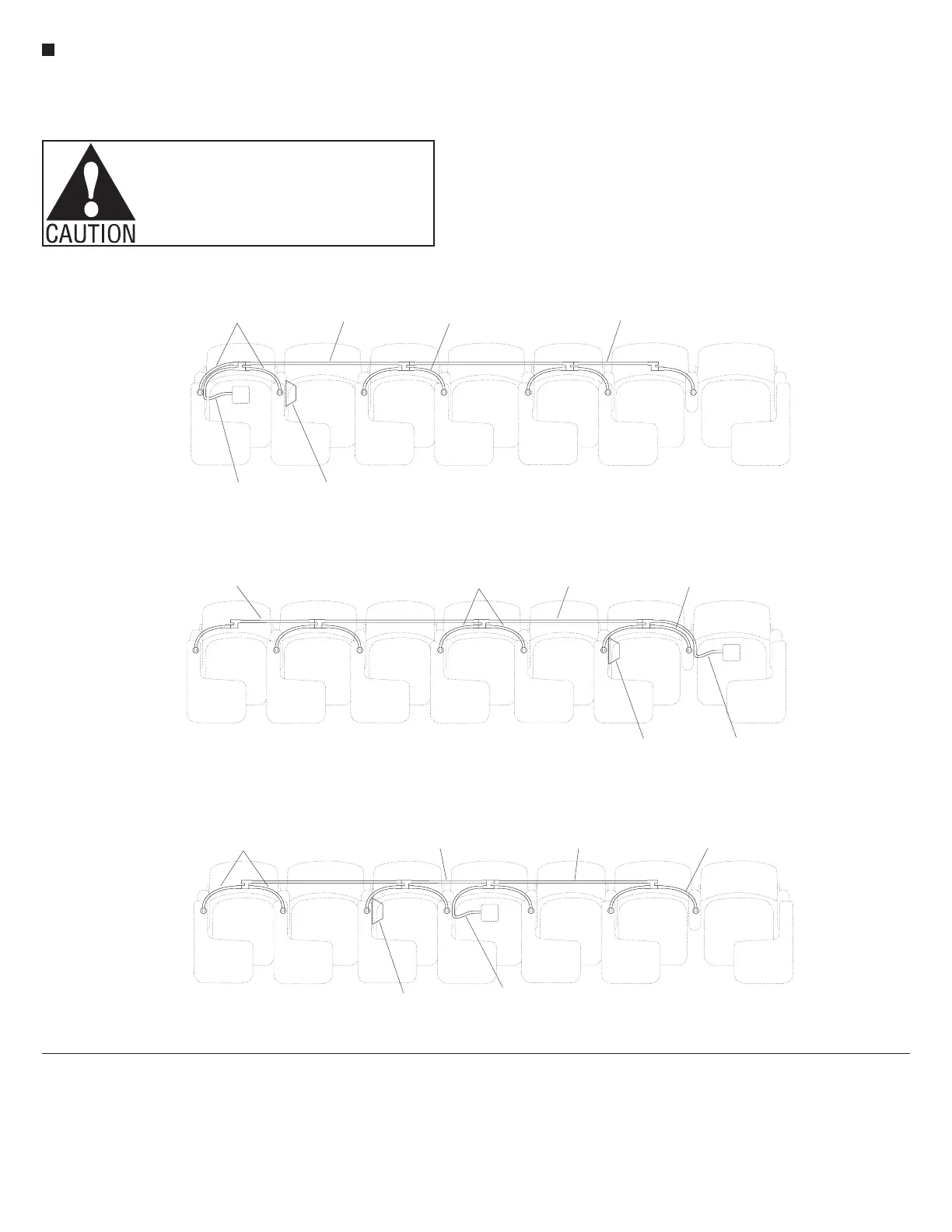

simplex
receptacles
distribution harness
(46”, 49” or 52”)
distribution harness
(46”, 49” or 52”)
distribution harness
(46”, 49” or 52”)
distribution harness
(25”)
distribution harness
(25”)
distribution harness
(25”)
simplex
receptacle
data infeed “D”5-wire
power infeed
“P”
5-wire
power infeed
“P”
5-wire
power infeed
“P”
Concerto Right Power & Data Infeed
Concerto Left Power & Data Infeed
Concerto Center Power & Data Infeed
simplex
receptacles
simplex
receptacle
data infeed “D”
simplex
receptacles
simplex
receptacle
data infeed “D”
