KI Concerto - Retrofit of Power & Data Components

15
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
Retrot of Power & Data
Components To Concerto Seating
Note: Power & data components are
not offered for retrofit to small tablet
arm uprights.
1. Remove the pivot screws and lift the
seat assembly off the pivot brackets
(see figure 8 in the “Seat Attachment”
section). Keep seats in the correct
order and location for reassembly at
a later time.
Note: Simplex receptacles are
labeled “1”, “2” or “3” to indicate
their circuit designation. Follow your
space-planning layout for the correct
location.
2. Follow the space-planning layout
and position the correct number
simplex receptacle box between the
uprights, under the armcap. Use a
bracket locating guide to center the
receptacle box both front-to-back
and side-to-side. Orient the locator
hole in the guide to the front of
the upright when centering. Using
the 6" Torx bit supplied, secure the
receptacle box to the upright with
four #8 x
3
/
4
" Torx screws
(Figure 14).
Note: Upright locations specified
as “FL” (full-length side cover),
“P” (power infeed side cover), “D”
(data infeed side cover), will require
the appropriate bottom side cover
bracket or data bracket.
3. Wherever the space-planning layout
specifies a bottom side cover bracket
or data bracket, remove the existing
anchors and install the appropriate
brackets. Refer to the section
“Upright Installation - Concerto
Seating with Power & Data”.
4. Skip the section “Back Attachment”
and continue on with “Electrical
Distribution Installation” and the rest
of the assembly instructions.

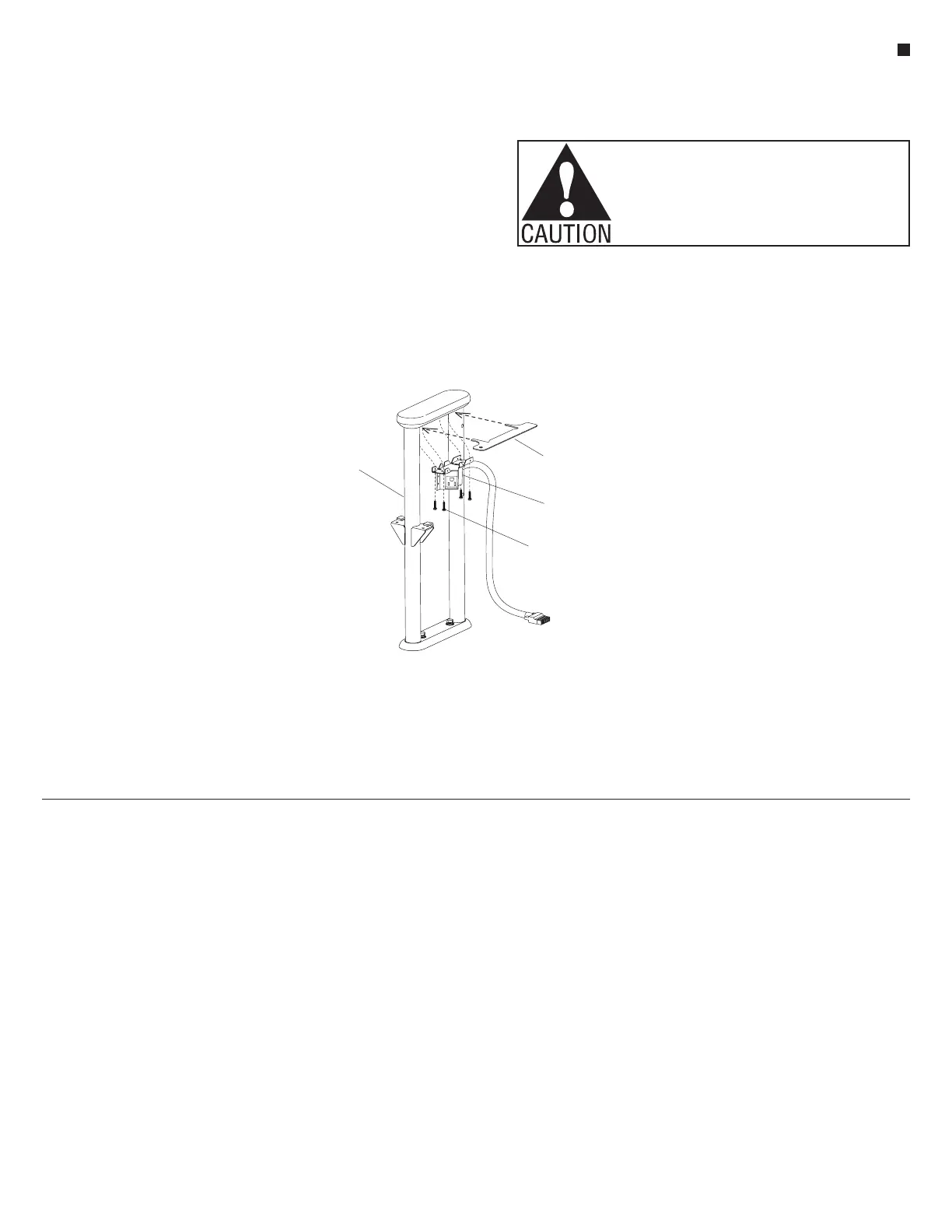

Figure 14
upright
bracket locating guide
simplex receptacle box
(retrofit)
#8 x /”Torx screw
3
4
