KI Concerto - Aisle Light Electrical Connection

7
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Concerto
®
Seating with Power & Data
Assembly Instructions
Aisle Light electrical
Note: The aisle light wiring is to
be connected to an appropriate
12VDC power source by a qualified
electrician who must check the
electrical integrity of the finished
system. 12VDC power source is used
for LED aisle lights. The step to the
right is intended as a guideline for
installation.
Note: Aisle light transformers
and dimmers are available.
Contact KI Customer Service at:
1-800-424-2432.
1. Aisle lights and wiring come
installed in end uprights specified
for aisle lights. The AC wire and
flexible conduit must be routed and
connected to an appropriate 12VDC
power source.

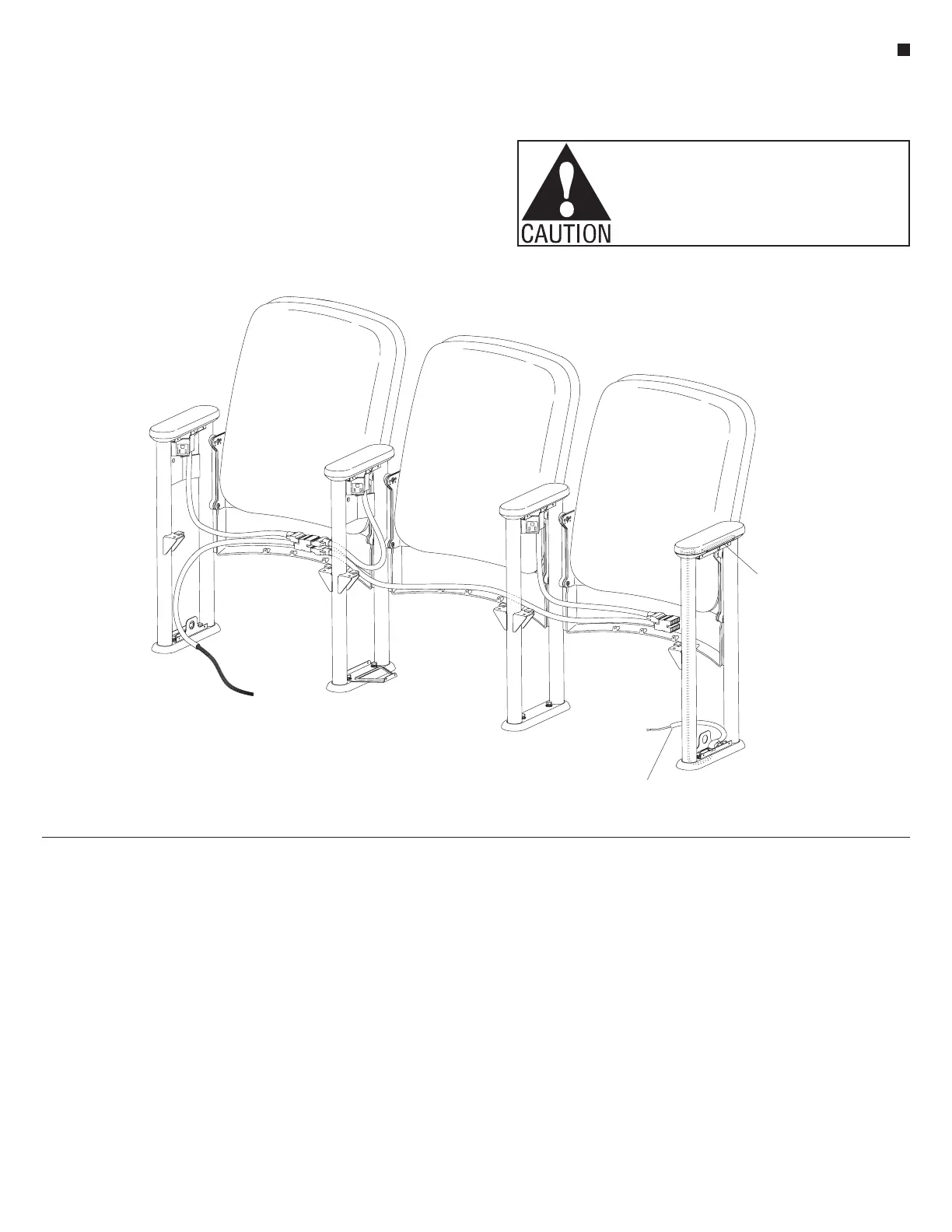

Figure 4
AC wire &
flexible conduit
aisle light
Note: Side covers specified for aisle
light power infeed have a cut-out at
the lower rear of the side cover. The
flexible conduit will pass through
this slot. Full-height side cover
installation is covered on
pages 8 and 9.
