35English

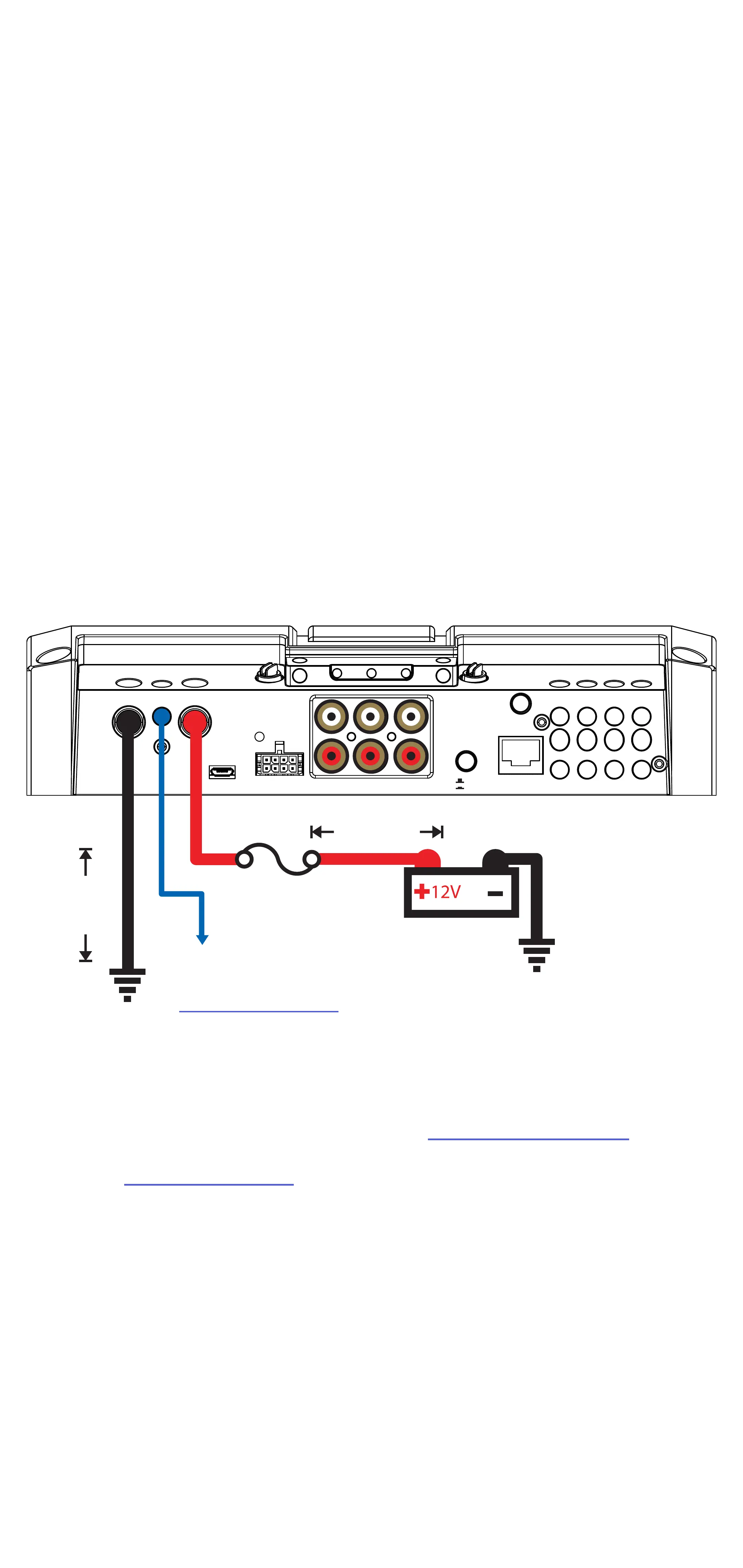

Fuse installation should be as close as
possible to the battery, and no further than
18” (45cm) of the battery, and in-line with
the power cable, which is connected to
your LX Amplifier. Make sure the power wire
is routed so that it will not be damaged,
crimped, or shorted. If you ever need to
remove the amplifier from the vehicle after it
has been installed, the ground wire should
be the last wire disconnected from the
amplifier; just the opposite as when you
installed it.
+
-
+
GND REM +12VGND REM +12V
FADERFADER
-
+
OFF
ON
OFF
ON
+
BRIDGED (L+ AND R-)
CONTROLLER
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
- -
battery
fuse
remote turn-on
(see page 41)
ground
≤18”
(45cm)
≤24”
(60cm)
Pro Tip: All that’s left are KS speakers,
and a few cables, and you’ll have an audio
upgrade that will dominate any factory
system! KICKER amplifiers make it easy to
upgrade to solid bass with your existing or
stock source unit. Ask your dealer about
KICKER upgrades.
