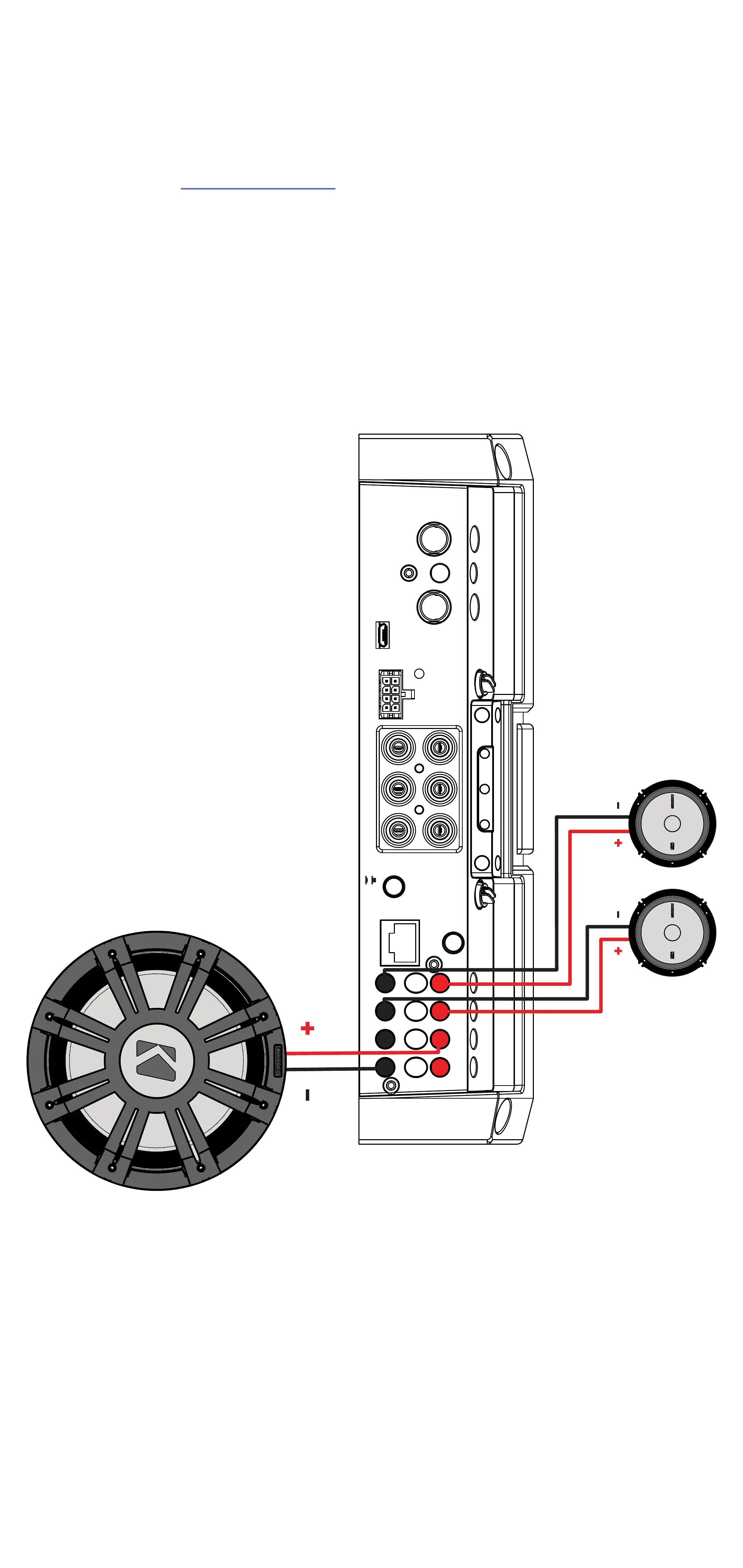

Stereo & Bridged Operation
Both stereo amplifier outputs (AMP1 & AMP2) are capable
of bridged mono output. Please refer to the RMS Power
Output in the specifications for bridged output power relative
to impedance. Use the LEFT+ and RIGHT– terminals of the
desired amplifier output to be bridged.
+
-
+
GND REM +12VGND REM +12V
FADERFADER
-
+
OFF
ON
OFF
ON
+
BRIDGED (L+ AND R-)
CONTROLLER
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
- -
AMP1
AMP2
(bridged)
