Kicker LX Series - Page 40

40English

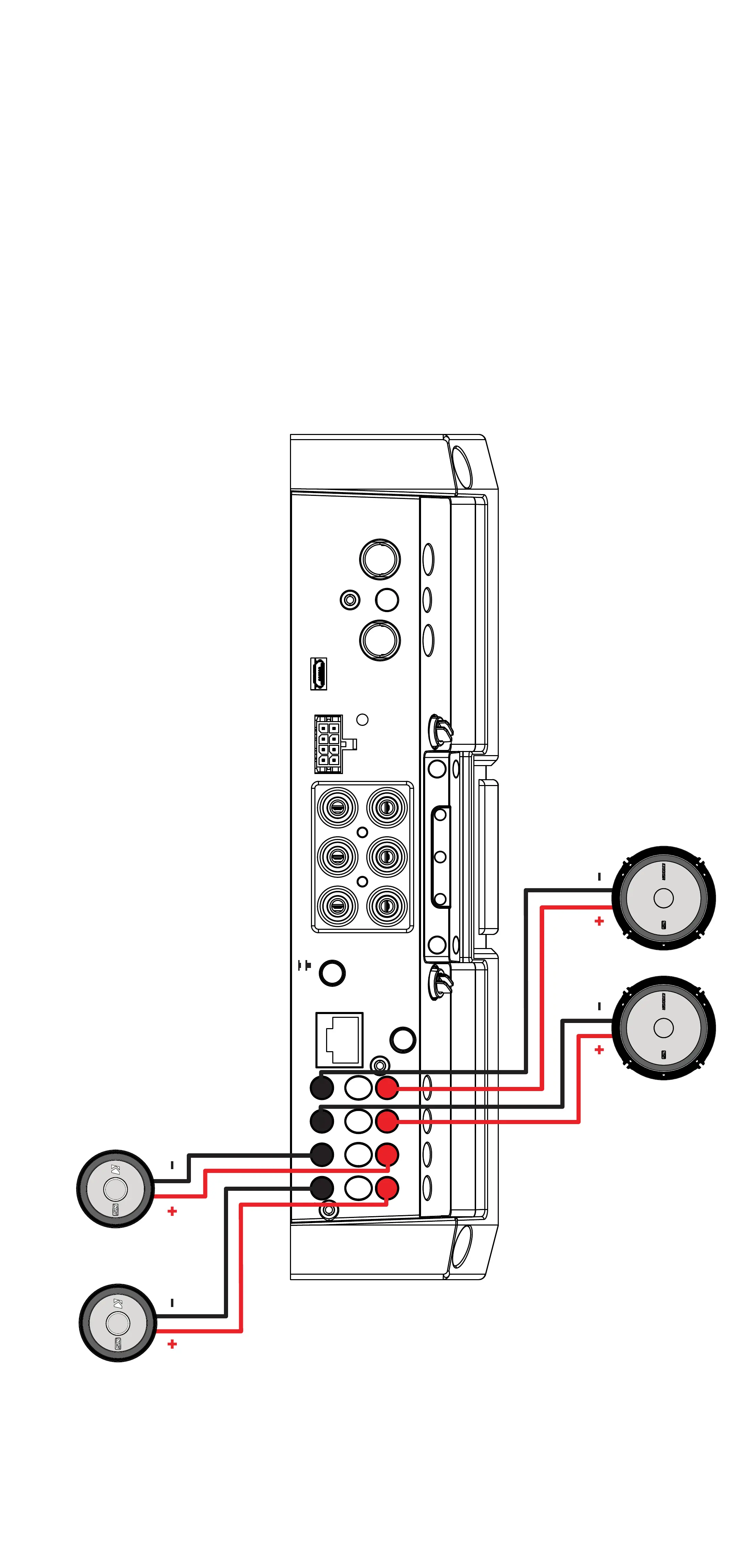

Bi-Amplification
Bi-Amplification dedicates stereo amplifier channels to
specific frequency ranges to increase efficiency and
headroom, greatly improving audio quality. As an example,
you can use one stereo output for tweeters, and another
stereo output for your mids.
+
-
+
GND REM +12VGND REM +12V
FADERFADER
-
+
OFF ON
OFF ON
+
BRIDGED (L+ AND R-)
CONTROLLER
HI-LEVEL
INPUT
PWR/
PRT
R L
AMP1 AMP2 OUTPUT
HI-LEVEL
INPUT
PWR/
PRT
R L
AMP1 AMP2 OUTPUT
- -
AMP1
AMP2
