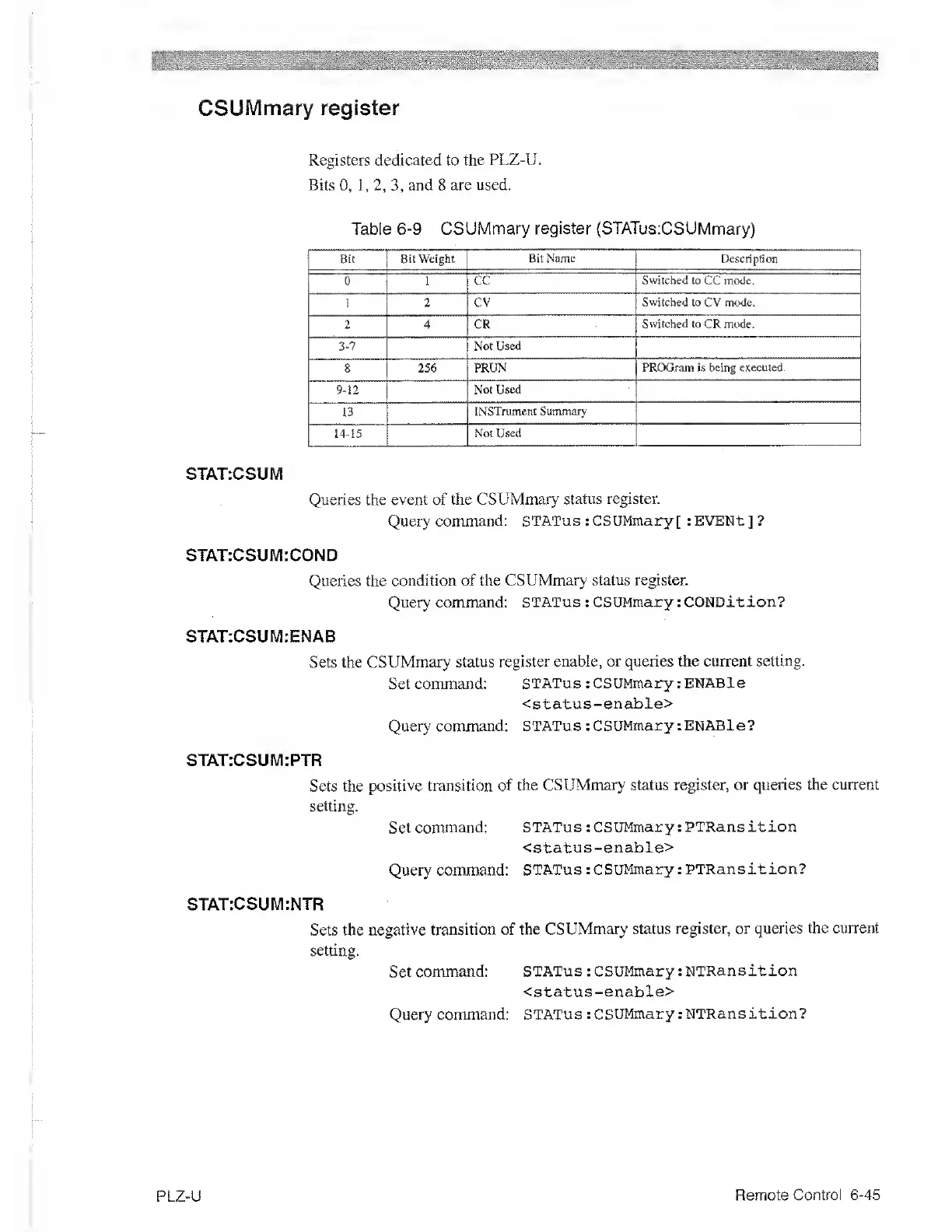

Kikusui PLZ-U Series Operation Manual

CSUMmary register
Registers
dedicated
to
the PLZ-U.
Bits
0,
1,
2,
3,
and
8
are used.
Table
6-9
CSUMmary
register
(STATusiCSUMmary)
Bit Bit Weight
Bit Name Description
0
1
:
CC
Switched to
CC
mode.
1
2 CV
Switched to CV mode.
2 4 CR
Switched to CR mode.
3-7
1
Not
Used
8
256 PRUN
PROGram is being executed.
9-12 Not Used
13
INSTrument Summary
14-15 Not Used
STAT:CSUM
Queries the
event
of
the CSUMmary
status register.
Query
command: STATus : CSUMmary
[
: EVENt
]
?
STAT:CSUM:COND
Queries the
condition of the
CSUMmary status register.
Query command:
STATus ; CSUMmary rCONDition?
STAT:CSUM:ENAB
Sets the
CSUMmary status
register enable, or queries the current
setting.
Set command;
STATus : CSUMmary
rENABle
<status-enable>
Query
command: STATus
:CSUMmary:ENABle?
STAT:CSUM:PTR
Sets the
positive transition of
the CSUMmary status register,
or queries the
current
setting.
Set
command: STATus :
CSUMmary :PTRansition
<status-enable>
Query command:
STATus
:CSUMmary:PTRansition?
STAT:CSUM:NTR
Sets the
negative transition of the
CSUMmary status
register, or queries the
current
setting.
Set
command:
STATus : CSUMmary
:NTRansition
<status-enable>
Query
command: STATus
:CSUMmary;NTRansition?
PLZ-U
Remote
Control
6-45
