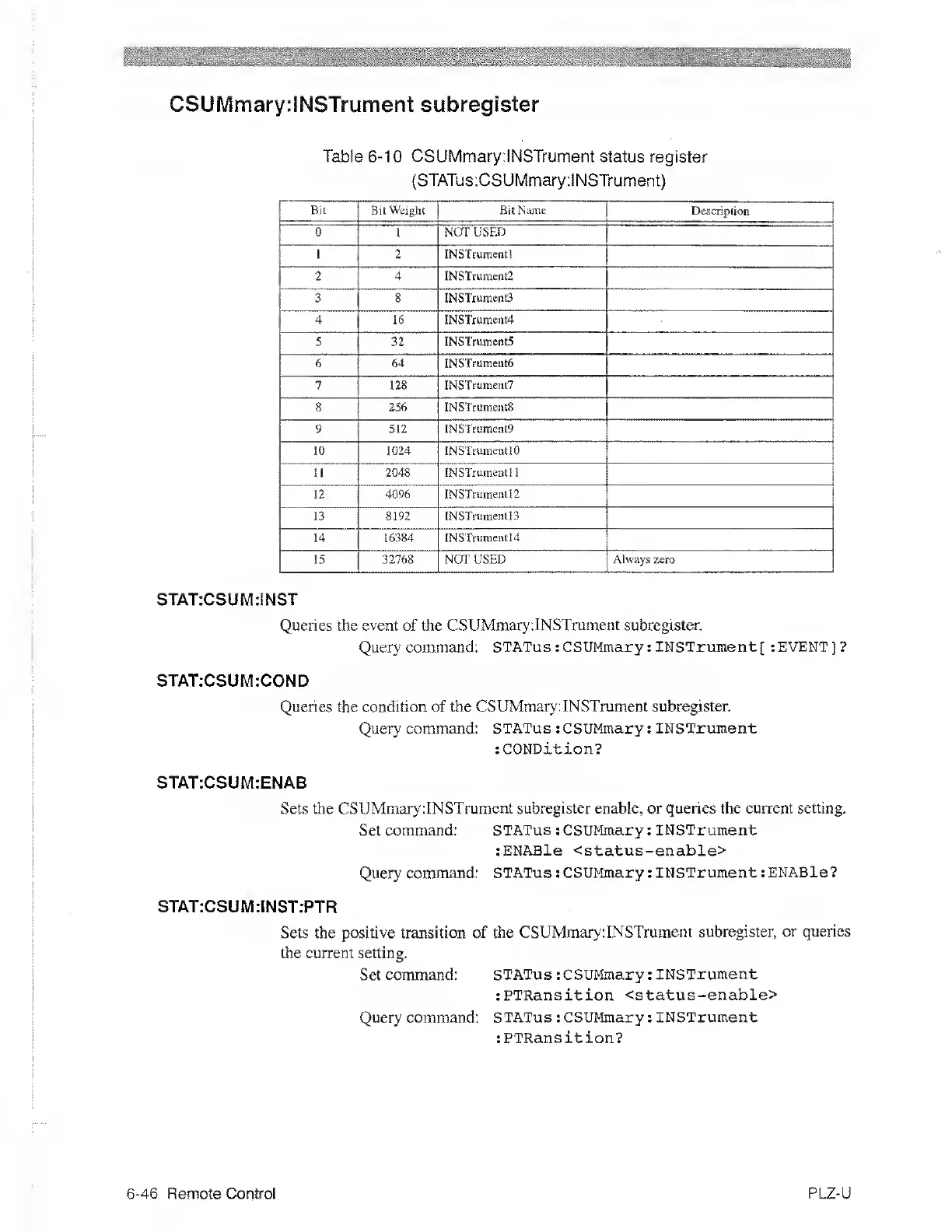

CSUMmary:INSTrument subregister
Table
6-10
CSUMmary:lNSTrument status
register
{STATus:CSUMmary:INSTrument)
Bit
Bit
Weight Bit Name
Description
0
1 NOT
UvSED
1 2
INSTrumentl
I
2 4 INSTrument2
i
3 8
INSTrumentS
i
4 16
INSTrument4
1
5 32
INSTrumentS
!
6
64 INSTrumetit6
i
7 128
INSTrument?
8
256 INSTrumentS
i
9 512 INSTrument9
10 1024 INSTrumentlO
11
2048 INSTrumentl 1
12 4096
INSTrumentl 2
13 8192
INSTrumentlS
14
I6;i84 INSTrumentl4
15 32768 NOT USED
Always
zero
STAT:CSUM:INST
Queries the event of the
CSUMmary:INSTrument subregister.
Query command:
STATus:CSUMmary:INSTrument[ lEVENT]?
STAT:CSUM;COND
Queries the condition of the CSUMmary:INSTrument
subregister.
Query command:
STATus iCSUMmary : INSTrument
:CONDition?
STAT:CSUM:ENAB
Sets the
CSUMmary:lNSTrument subregister enable,
or
queries the current setting.
Set
command: STATus : CSUMmary : INSTrument
:ENABle
<status-enable>
Query command:
STATus
:
CSUMmary: INSTrument
:ENABle?
STAT:CSUM:INST:PTR
Sets the positive transition of
the
CSUMmaryilNSTrument subregister, or queries
the current setting.
Set command:
STATus rCSUMmary:
INSTrument
:PTRansition
<status-enable>
Query command:
STATus : CSUMmary :
INSTrument
: PTRansition?
6-46
Remote Confrol PLZ-U
