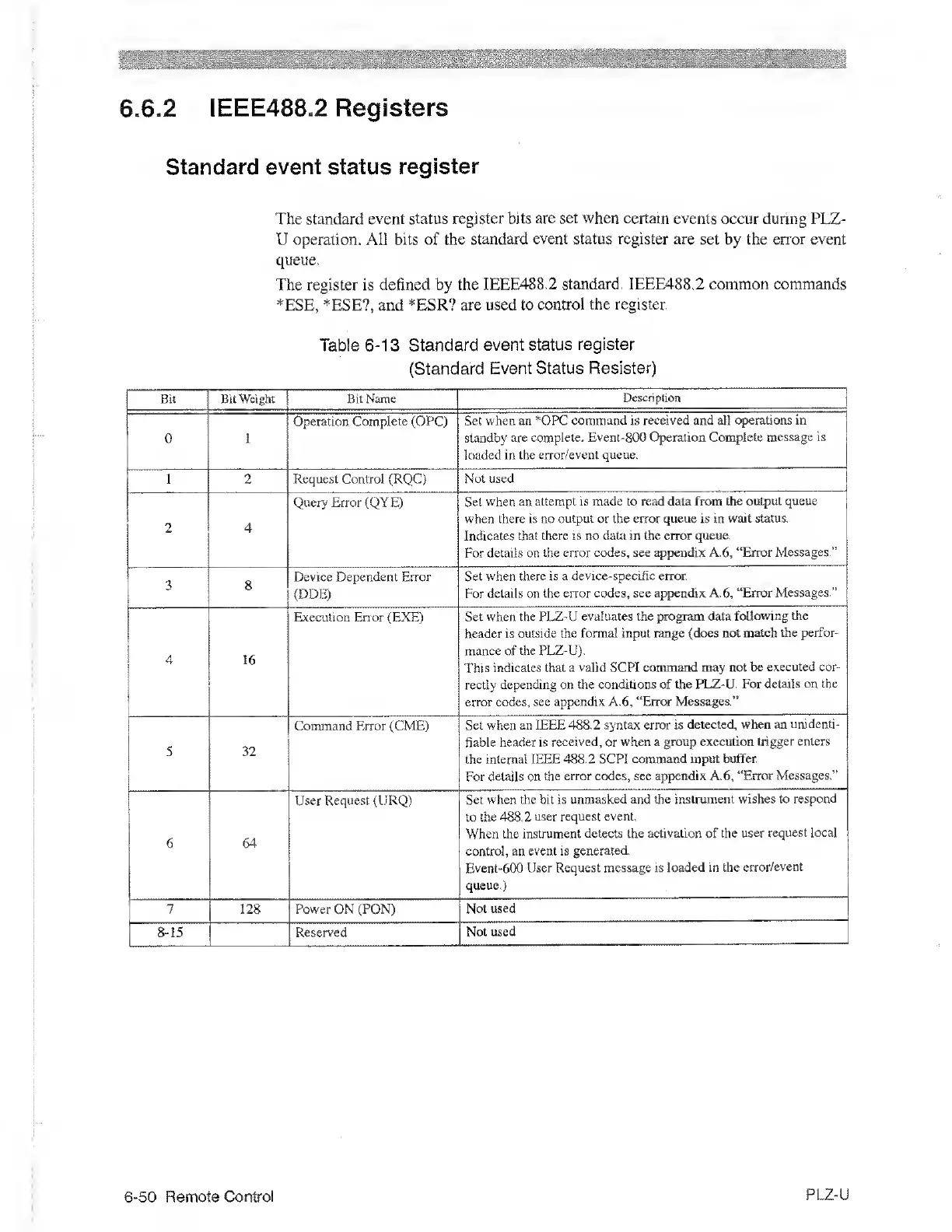

Kikusui PLZ-U Series Operation Manual

6.6.2
IEEE488.2 Registers
Standard
event status
register
The standard
event status register
bits
are
set when
certain events
occur
during
PLZ-
U operation. All bits
of the standard
event status register
are set by the error
event
queue.
The register is defined by
the IEEE488.2
standard, IEEE488.2 common commands
*ESE, *ESE?, and *ESR? are
used to control
the register.
Table
6-13
Standard
event
status register
(Standard
Event Status
Resister)
Bit BitWeight
Bit Name
Description
0
i
Operation
Complete (OPC)
Set when an *OPC
command
is
received
and all
operations in
standby
are complete. Evenl-800 Oper^on Complete
message is
loaded
in
the
error/event
queue.
1 2
Request Control (RQC)
Not used
2 4
Query Error (QYE)
Set
when an attempt is made to read data from
the output queue
when there is no output or the error
queue
is in
wait status.
Indicates that there is no data in the error
queue.
For details on
the error codes, see appendix A.6, “Error
Messages.”
3 8
Device Dependent Error
(DDE)
Set when
there is a device-specific error.
For
details on the error
codes, see appendix
A.6,
“Error
Messages.”
4 16
Execution En'or (EXE)
Set when the PLZ-U
evaluates the program data
following the
header is
outside the formal input range (does not
match the perfor-
mance of
the PLZ-U).
This indicates that
a valid
SCPI
command may not
be executed cor-
rectly
depending on the
conditions
of
the PLZ-U. For
details on the
error codes,
see appendix A.6, “Error
Messages.”
5 32
Command Error (CME)
Set
when an IEEE 488.2 syntax error is
detected, when an
unidenti-
fiable header is
received,
or
when a group execution
trigger enters
the internal IEEE 488.2 SCPi
command input buffer.
For details on
the error codes, see appendix A.6,
“Error Messages.”
6
64
User Request (URQ)
Set when the bit
is
unmasked and the instrument wishes
to respond
to the
488.2 user
request event.
When tile
instrument detects the
activation
of
the user
request local
control,
an event is
generated.
Event-600 User
Request message is
loaded in the
error/event
queue,)
7
128 Power ON (PON)
Not used
8-15
Reserved
Not
used
6-50
Remote
Control
PLZ-U
