Kikusui PLZ-U Series Operation Manual

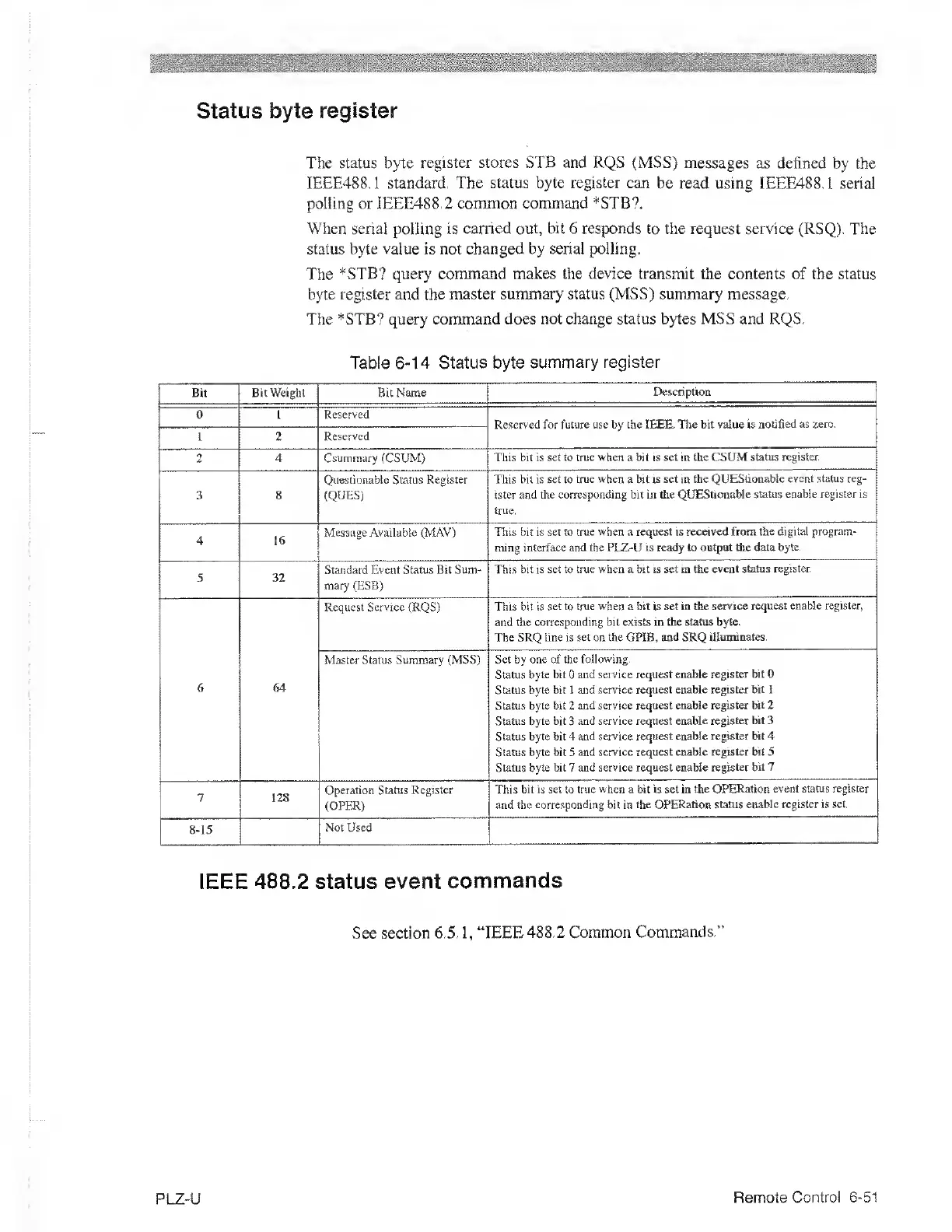

Status byte
register
The
status
byte
register stores STB and RQS (MSS)
messages as defined
by the
IEEE488.1 standard.
The status byte register can
be read using IEEE488.I serial
polling or 1EEE488.2 common
command
*STB?.
When serial polling
is
carried
out,
bit 6 responds to
the request
service
(RSQ). The
status byte
value
is not
changed by serial polling.
The
*STB?
query
command makes the
device
transmit the contents of the status
byte register
and
the master summary status (MSS) summary message.
The
*STB? query command
does not change status bytes MSS and RQS.
Table
6-14
Status byte
summary register
Bit Bit Weight Bit
Name
Description
0 1
Reserved
Reserved
for
future use by the
IEEE.
The bit value is
notified as zero.
1 2
Reserved
2
4 Csummary (CSUM)
This bit i.s set to
true when
a bit is
set
in
the CSUM status register.
3 8
Questionable Status
Register
(QUES)
This bit is set to
true when
a bit
is set
in
the QUEStionable
event status reg-
ister and the corresponding bit in the
QUEStionable status enable register is
true.
4
16
Message Available (MAV)
This bit is set to
true when
a
request is received from the digital
program-
ming interface
and the
PLZ-U
is ready to output the data
byte.
5 32
Standard Event Status Bit Sum-
mary (ESB)
This
bit is set to true when a bit is set in tiie
event st^s register.
6 64
Request Service (RQS)
This bit is
set to true when a bit is set in the
service request enable register,
and the
corresponding bit exists in the status byte.
The SRQ line is set on the GPIB,
and
SRQ
illuminates.
Master Status Summary (MSS)
Set by one of the
following,
Stauis
byte bit
0
and service request enable
register bitO
Status byte bit 1 and
service request enable register
bit
1
Status byte bit 2
and service request enable register
bit
2
Status byte bit
3
and service request
enable register bit 3
Status byte bit 4
and service request enable register bit 4
Status byte bit 5
and service request enable register bit 5
Status byte bit 7 and service request en^le
register bit 7
7
128
Operation Status Register
(OPER)
This bit is set
to
true
when
a bit is set
in
the OPERation event status
register
and the
corresponding
bit in
the OPERation status
enable
register is
set.
8-15
Not Used
IEEE 488.2
status
event
commands
See section 6.5.1,
“IEEE
488.2 Common
Commands."
PLZ-U
Remote
Control
6-51
