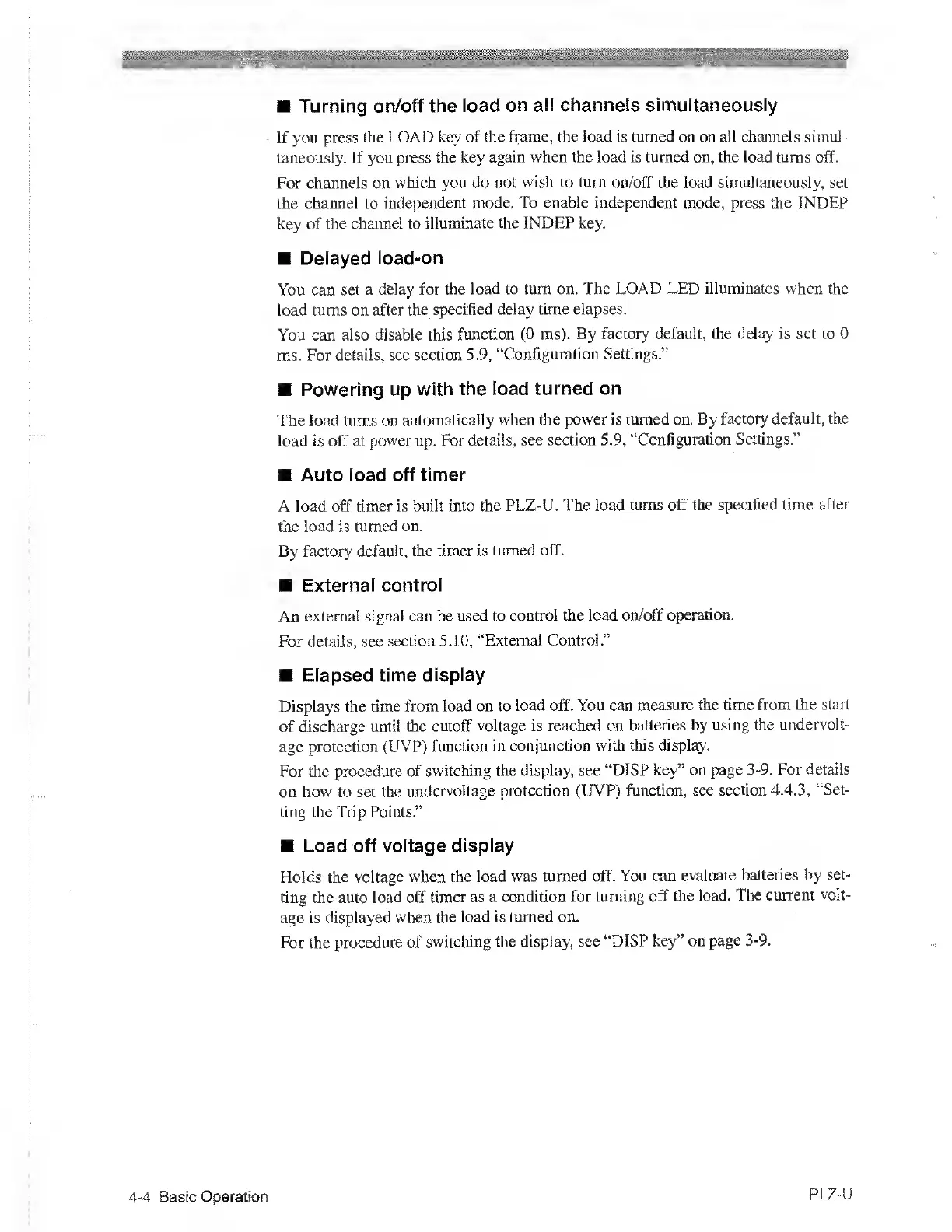

Turning on/off the
load
on all channels simultaneously
If you press
the LOAD key of
the frame, the load is turned on on all channels simul-
taneously. If you
press the key
again when the load is turned on, the load turns
off.
For channels on
which you do
not wish to turn on/off the
load
simultaneously,
set
the channel to
independent mode. To enable independent mode, press the INDEP
key of the
channel
to
illuminate the INDEP key.
Delayed
load-on
You
can set a delay for the
load to turn on. The
LOAD LED illuminates when the
load turns on after
the speci fied
delay time elapses.
You can also disable this
function
(0
ms).
By factory default,
the delay
is set
to
0
ms. For
details, see section 5.9,
“Configuration Settings.”
Powering up
with the load
turned on
The load turns on
automatically
when the power is turned
on. By factory
default, the
load is off at power up.
For details,
see section
5.9,
“Configuration Settings.”
Auto load
off timer
A load off
timer is built into
the PLZ-U. The load
turns off the specified time
after
the load is
turned on.
By factory
default, the timer is
turned off.
External control
An
external signal can be
used to
control the load on/off
operation.
For details, see
section
5.10,
“External Control.”
Elapsed time
display
Displays the time from
load on to
load off. You can
measure the time from
the start
of discharge until
the cutoff
voltage is reached on
batteries by using
the undervolt-
age protection
(UVP) function
in conjunction
with this display.
For the procedure
of switching
the display, see “DISP
key” on page
3-9.
For details
on how to set the
undervoltage
protection (UVP)
function, see section 4.4.3,
“Set-
ting the Trip Points.”
Load
off voltage
display
Holds the
voltage when the load was
turned off.
You can
evaluate batteries
by set-
ting the auto load off
timer as a condition
for turning
off the load.
The
current volt-
age
is
displayed when
the load is turned
on.
For the
procedure of
switching the display, see
“DISP
key” on
page
3-9.
4-4
Basic Operation
PLZ-U
