Kikusui PLZ-U Series Operation Manual

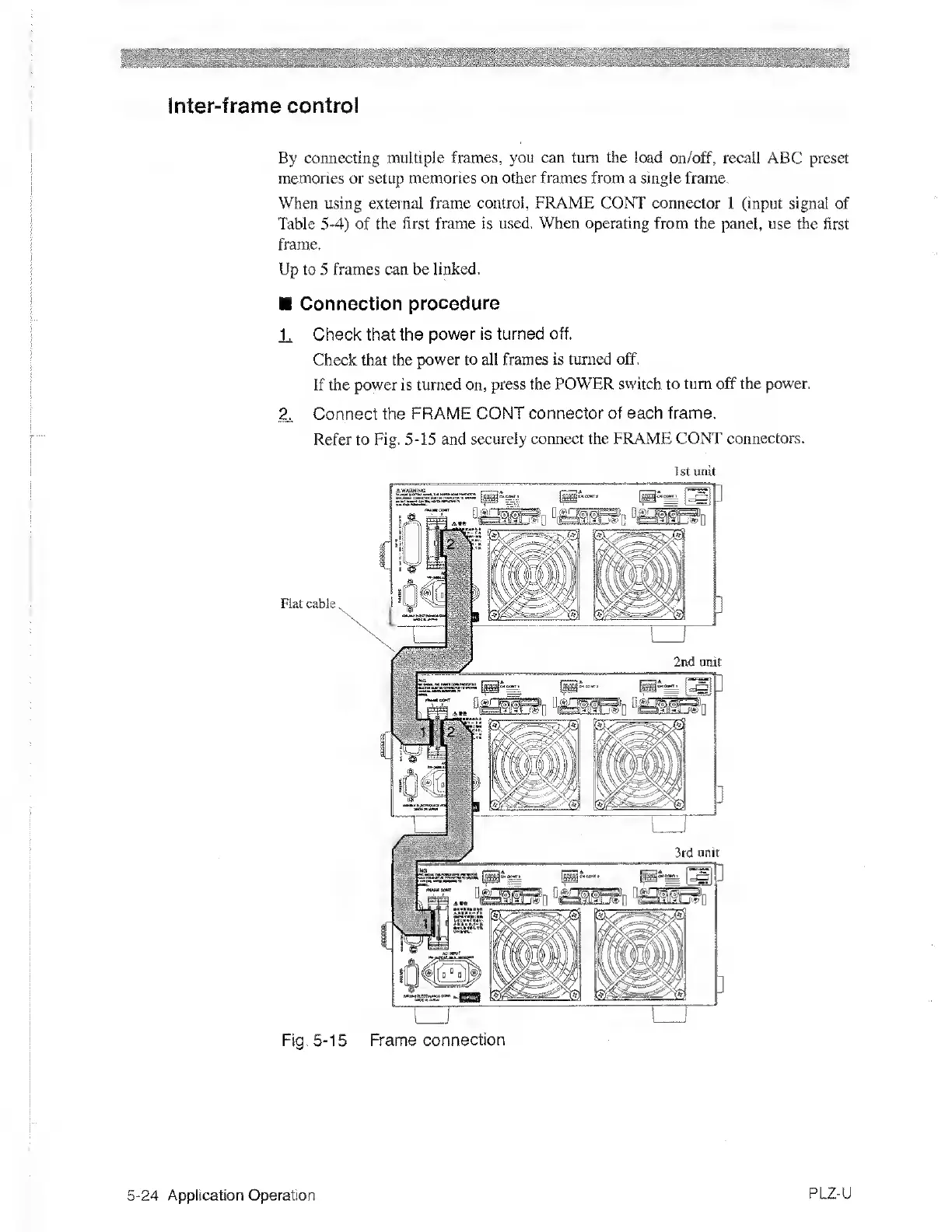

Inter-frame control
By connecting multiple
frames, you can turn the load
on/off, recall ABC preset
memories or setup memories on
other frames
from a single frame.
When
using
external
frame control, FRAME CONT connector
1
(input signal of
Table 5-4) of the
first frame
is
used. When
operating from the
panel, use the first
frame.
Up to 5 frames can be linked.
Connection
procedure
E Check that the
power is turned off.
Check that the
power to all frames is
turned off.
If the power is turned on,
press the POWER switch to
turn off the power.
Z.
Connect the
FRAME CONT
connector of each frame.
Refer to
Fig.
5-15
and
securely connect the FRAME CONT
connectors.
1st
unit
Fig.
5-1
5
Frame
connection
5-24
Application Operation
PLZ-U
