RO Compact Series Technical Manual
80
RO-Compact 3 no bypass:
RO-Compact 3:

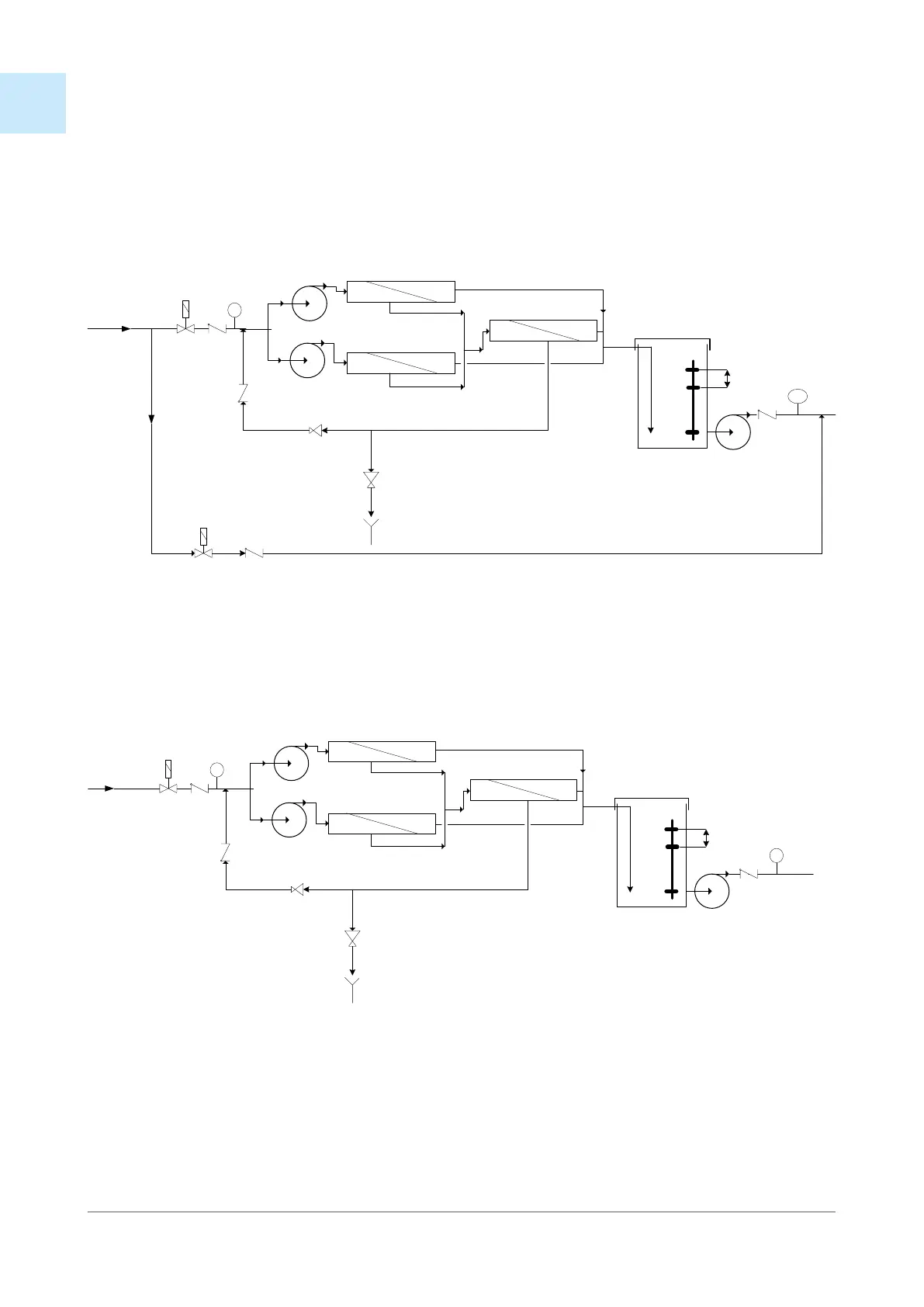

FLOW DIAGRAM
RO – COMPACT 3
MV 1
MV 2
P1
Resevoir
P2
Dyse
afløb
LSH
LSM
Membran
LSL
17,4
liter
ps
DWG NAME
ORIGINALLY DRAWN BY DATE
MATERIAL
MANAGER
SIZE SCALE SHEET
LAST MODIFIED BY DATE
DWG REV
FLOW - DIAGRAM
RO-COMPACT 3
Allan Herold/Søren Hansen 14/05-2014
COSTUMER
-
-
1 OF 1
A
Allan Herold 09/11-2016
ps
= flow control/nozzle
= Solenoid Valve
= Drain
= Pump
= Pressure switch
= Check valve
= Flow direction
P1
Dyse
FS
FLOW DIAGRAM
RO – COMPACT 3 without bypass
MV 1
P1
Resevoir
P2
Dyse
afløb
LSH
LSM
Membran
LSL
17,4
liter
ps
DWG NAME
ORIGINALLY DRAWN BY DATE
MATERIAL
MANAGER
SIZE SCALE SHEET
LAST MODIFIED BY DATE
DWG REV
FLOW – DIAGRAM
RO-COMPACT 3 NO BYPASS
Allan Herold/Søren Hansen 14/05-2014
COSTUMER
-
-
1 OF 1
B
Allan Herold 09/11-2016
ps
= flow control/nozzle
= Solenoid Valve
= Drain
= Pump
= Pressure switch
= Check valve
= Flow direction
P1
Dyse
= flow switch
fs
fs
Nozzle
Drain
Membrane
Nozzle
Nozzle
Drain
Nozzle
Membrane
