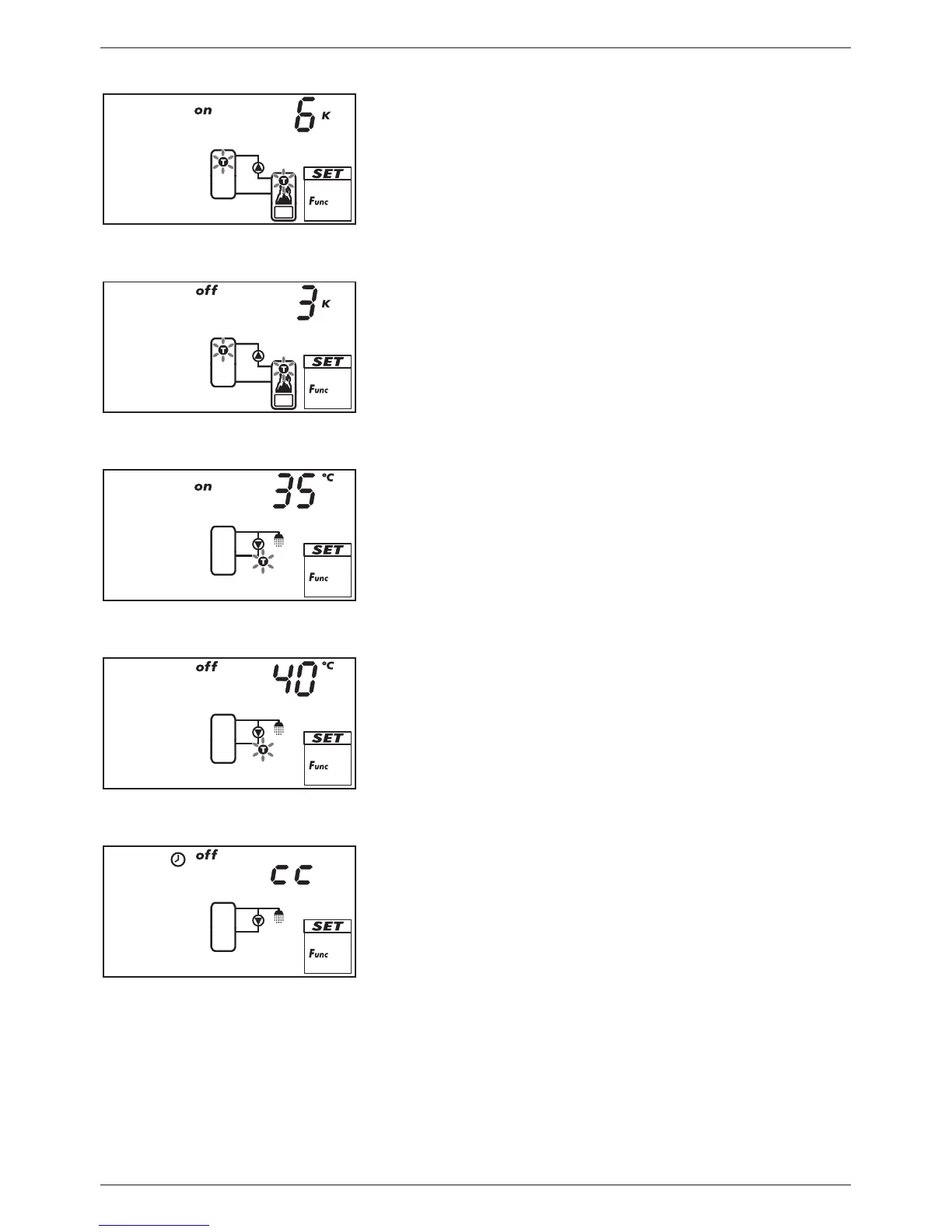

Switch-on temperature difference
If a function contains a differential thermostat then the switch-
on temperature difference can be set. The relevant sensor
symbols flash.
Switch-off temperature difference
If a function contains a differential thermostat then the switch-
off temperature difference can be set. The relevant sensor
symbols flash.
Switch-on temperature
If a function contains a thermostat then the switch-on tempera-
ture can be set. The relevant sensor symbol flashes.
Switch-off temperature
If a function contains a thermostat then the switch-off tempera-
ture can be set. The relevant sensor symbol flashes.
Time control
If a function is to be time controlled then the time control must
be activated and the time windows must be set (cc = clock
control). In the Fig. at the left the time control is switched off
(off).
