29742.892 | 11.50
EN
Setting the characteristics
The functions have different numbers of characteristics. The
characteristic values are always set via the same sequence of
operating steps.
You set the values of characteristics as follows:
√ The function has been activated as described previously.
1. - Press to select a characteristic.
2. Press SET. The value of the characteristic is displayed, the
associated components flash in the system graphics.
3. - Press to change the value.
4. Press SET to adopt the change.
5. Repeat steps 1 to 4 for the other characteristics.
6. Press ESC when all characteristics of the function have been
set. The function number flashes.
9.2 Characteristics
The main characteristics for the functions are described below. The figures show exam-
ples.

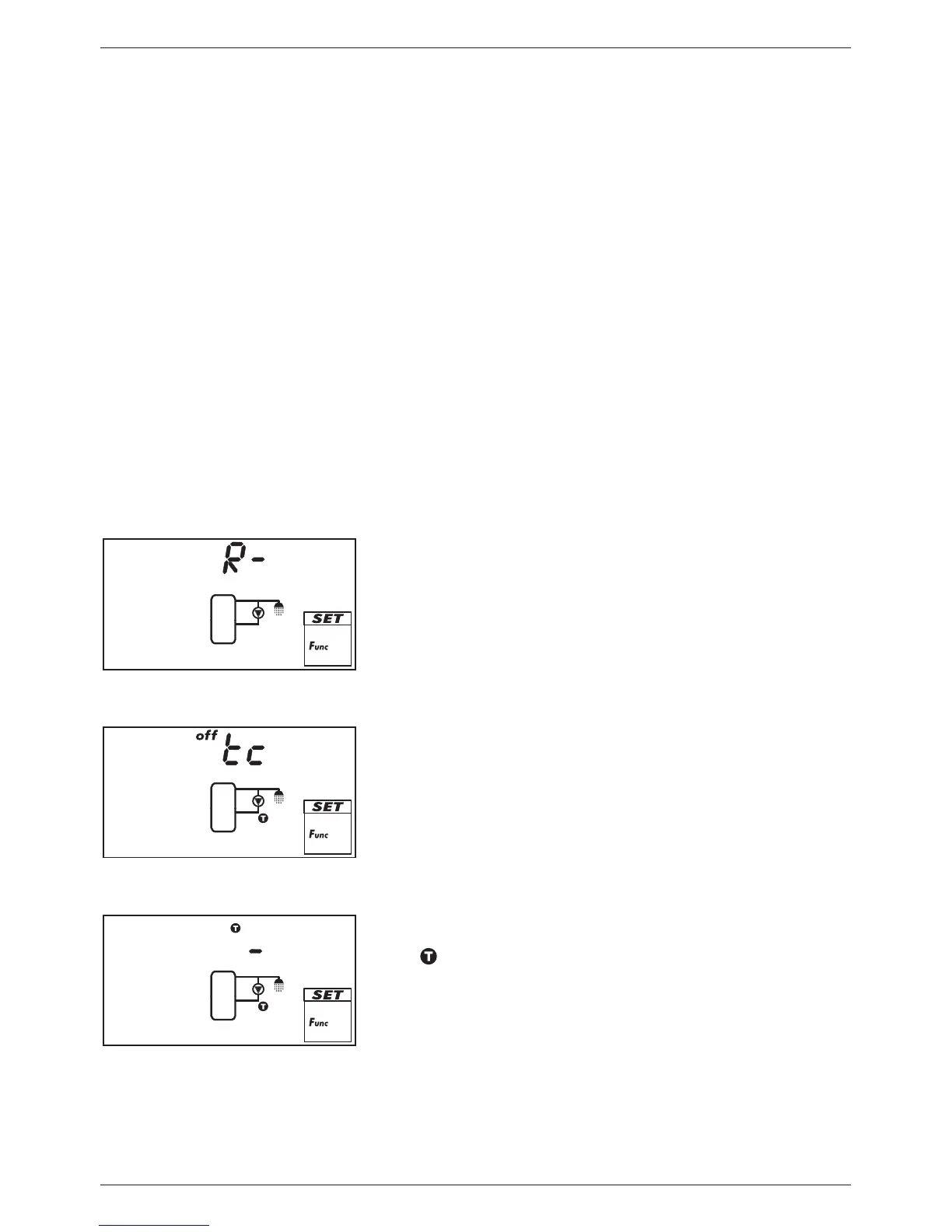

Output
When a function should control an output, instead of the fac-
tory setting R- (= no output; Fig. left), one of the outputs R1,
R2 or R
S
must be selected. Only free outputs are displayed for
selection.
Temperature control
When a function is to be temperature controlled, the tempera-
ture control must be switched on (tc = temperature control). In
the figure, the temperature control is switched off (off).
Input
When a function requires a temperature sensor, a sensor input
must be selected instead of the factory setting. The factory set-
ting is " –“ (no input; Fig. left).
All sensor inputs are displayed for selection. A single sensor
input can be simultaneously used by several functions.
