36 742.892 | 11.50
EN

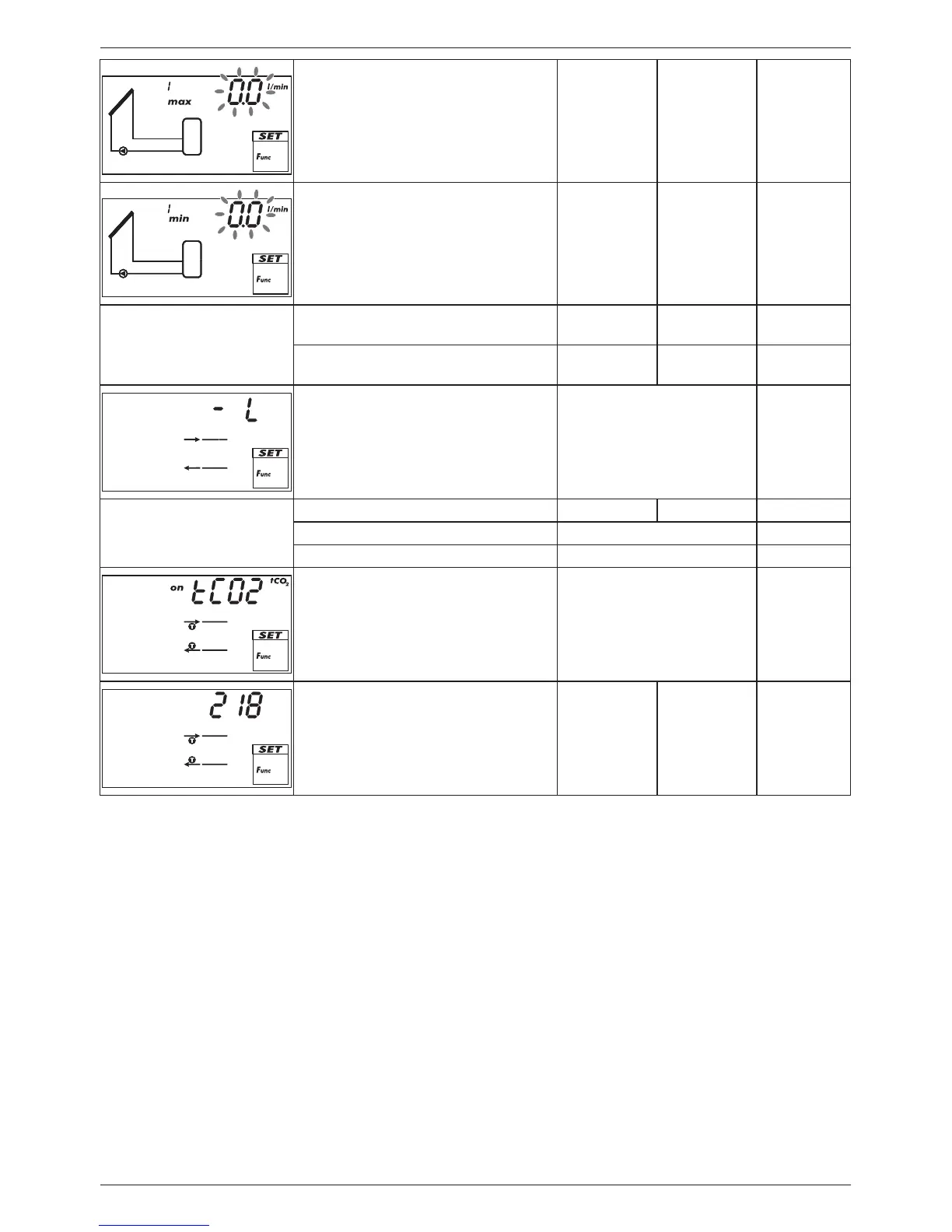

Type 1: Flow rate value at max.
speed F
max.
(pump 1).
When the Fig. at the left is dis-
played (value flashes) then enter
the value read from the flow rate
display.
F
min.
99.9 l/min 0.0 l/min
Type 1: Flow rate value at min.
speed F
min.
(pump 1).
When the Fig. at the left is dis-
played (value flashes) then enter
the value read from the flow rate
display.
0.0 l/min F
max.
0.0 l/min
Type 1: Flow rate value at max.
speed F
max.
(pump 2)
2)
F
min.
99.9 l/min 0.0 l/min
Type 1: Flow rate value at min.
speed F
min.
(pump 2)
2)
0.0 l/min F
max.
0.0 l/min
Type 2: Flow rate of the pulse
water meter in litres/pulse; see
the pulse water meter data
sheet.
1L, 10L, 25L –L
(no flow
rate value
selected)
Glycol proportion 0% 60% 40%
Supply sensor input (warm) 1 ... 5 –
Return sensor input (cold) 1 ... 5 –
CO
2
display on, oFF
oFF
g
CO2
/kWh
therm
1 999 218
3)
1)
tyP 1: Calculation of the flow rate from the pump speed. To do this, the displayed flow rate values are entered
at two measuring points (pump speed min. and max.).
tyP 2: Determining the flow rate using a pulse water meter. The flow rate of the pulse water meter in litres/
impulse is entered.
2)
Only for systems with 2 pumps. Enter the displayed flow rate values at F
max.
/F
min.
in the same manner as with
type 1, pump 1.
3)
Source: Erneuerbare Energien in Zahlen – Nationale und internationale Entwicklung (Renewable energy sources
in figures - national and international development), p. 20, as of: June 2010; Federal Ministry for the Environ-
ment, Nature Conservation and Nuclear Safety (BMU)
