4
-18 DK90
SEATBACK RECLINING ADJUST-
MENT
To adjust the seatback reclining angle,
lean forward and pull the lever upwards.
Adjust the seatback angle then release
the lever.
After adjustment, ensure that the
seatback is locked firmly in position.
SEAT BELT ADJUSTMENT
Adjust and fasten the seat belt properly.
Operating the hydraulic control lever ac-
tuates the hydraulic lift arm, which con-
trols implement height or working depth.
To lower implement, push the lever for-
ward; to raise it, pull the lever back.

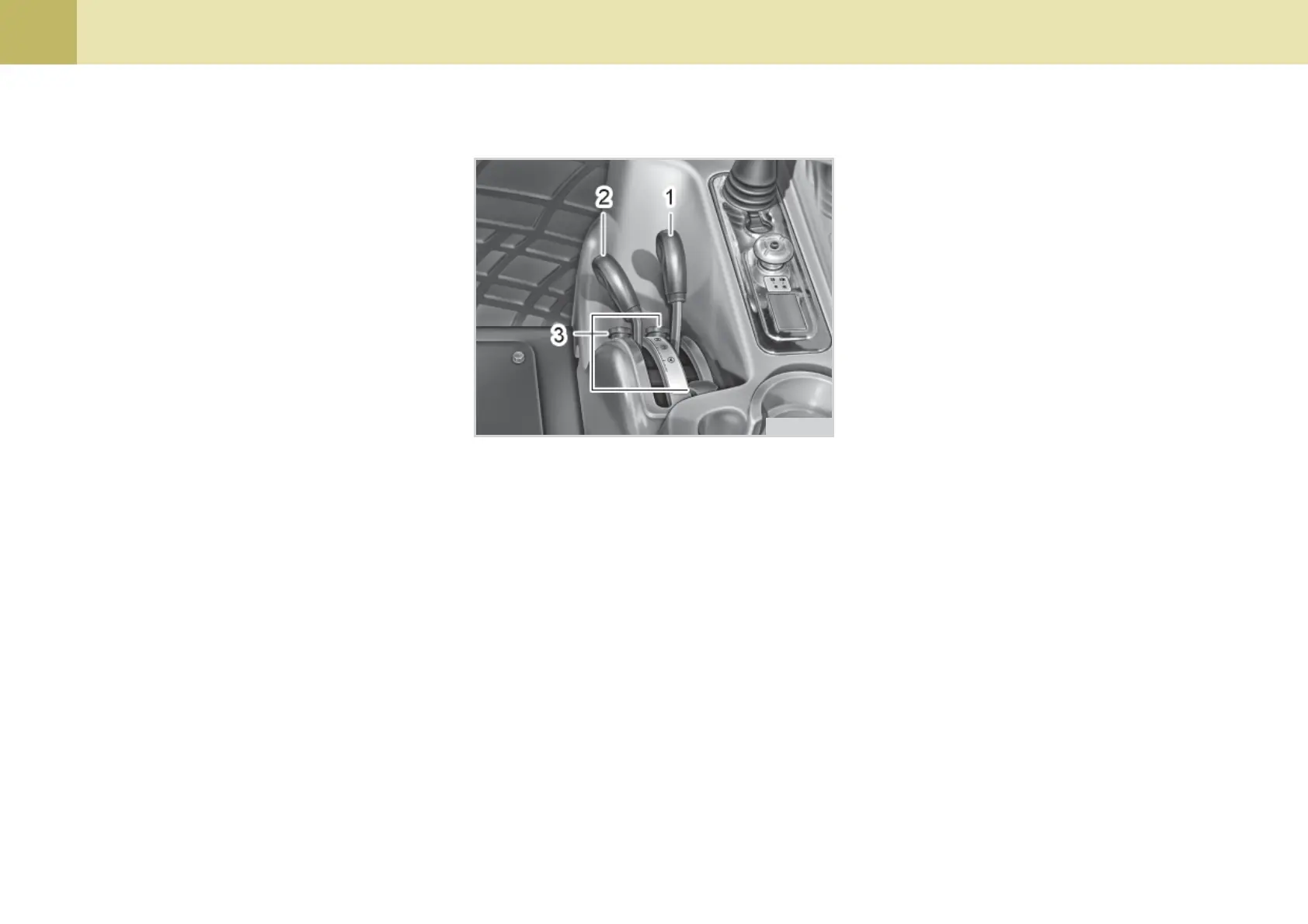

POSITION/DRAFT CONTROL
LEVERS
(1) Position Control Lever (3) Stop Bolt
(2) Draft Control Lever
S43O438A
POSITION CONTROL
The position control lever maintains a
setting depth during work. After setting
the handling position of the lever, fix it
with a mounting bolt. When working with
the position control lever, place the draft
control lever to the deep (front) direction.
DRAFT CONTROL
It is used to working with draft power
such as plowing. Set the desired work-
ing depth using the draft control lever,
with the position control lever lowered
(to the front). The working depth is set
according to the soil and the lifting unit
is maintained in a constant draft load.
The narrower (to the rear) the draft con-
trol lever places, the less load the lift-
ing unit gets.
MIXED CONTROL
Lower the attachment to the desired
depth using the draft control lever and
fix it with a stop bolt. Move the posi-
tion control lever to the rear until the
To Next Page
