Chapter 1 Before Use 1-10

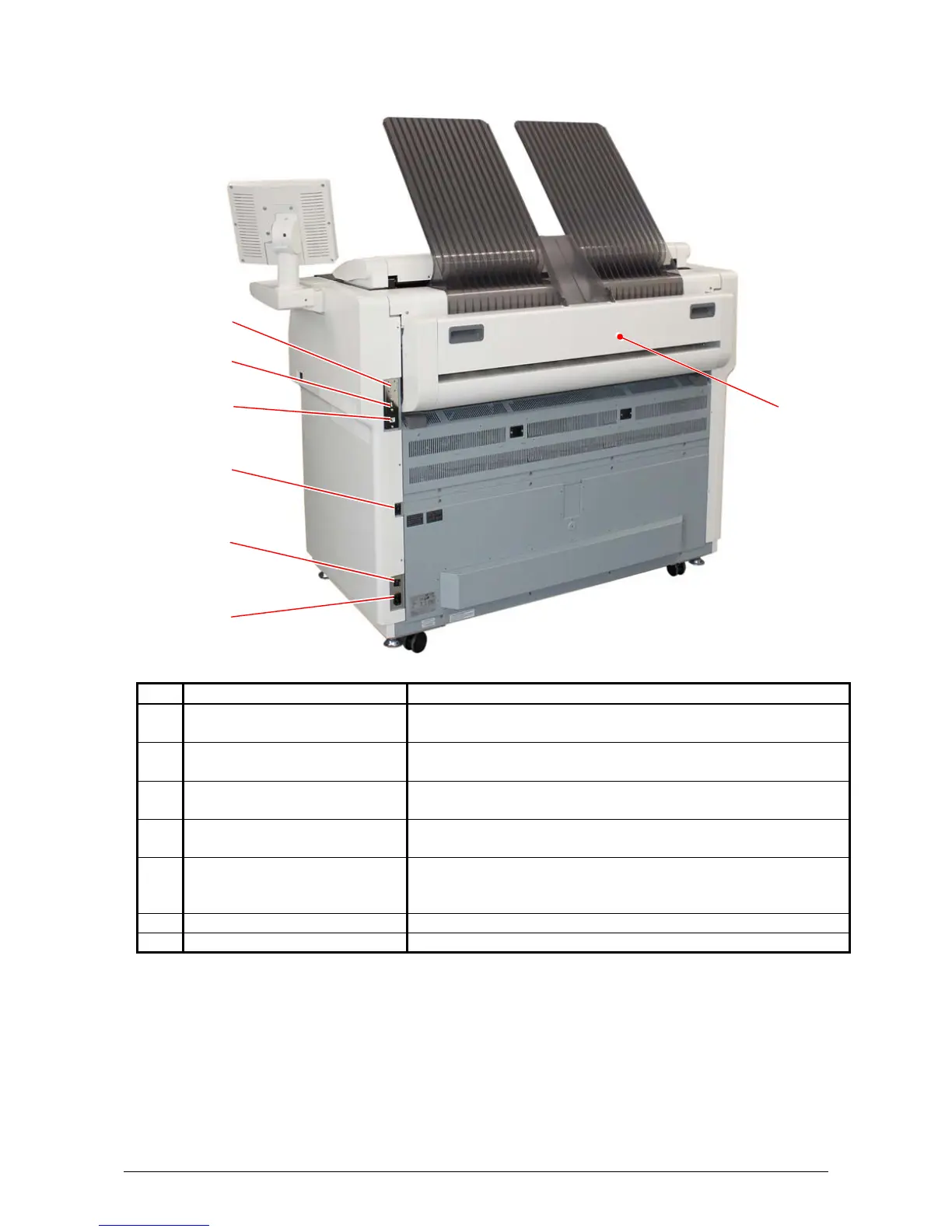

1. 5. 2 Rear view
No. Name Function
1 Paper Exit Door Open the Paper Exit Door when you remove the paper
misfed inside the Fuser Unit.
2 COM Port For an optional device
(D-Sub Connector 9 pins: 12VDC max.)
3 USB Port For an optional device
Service Use. 5VDC max.
4 LAN Port Connect the LAN Cable to connect the KIP 7170 to the
network. (Do not connect a telephone line)
5 Dehumidify Heater Switch
(DEHUMIDIFY KIT is an
optional part.)
Turn on the Dehumidify Heater with this switch when you
would like to dry the paper in the humid season.
6 Breaker It is possible to shut off supplying the AC power.
7 Inlet Socket Connect the Power Cord here.
1
4
6
7
5
3
2
To Next Page
