KIP 7170K - Roll Deck Section Jam (Deck 1, 2 Mis-Feed)

Chapter 3 Error Correction 3-3

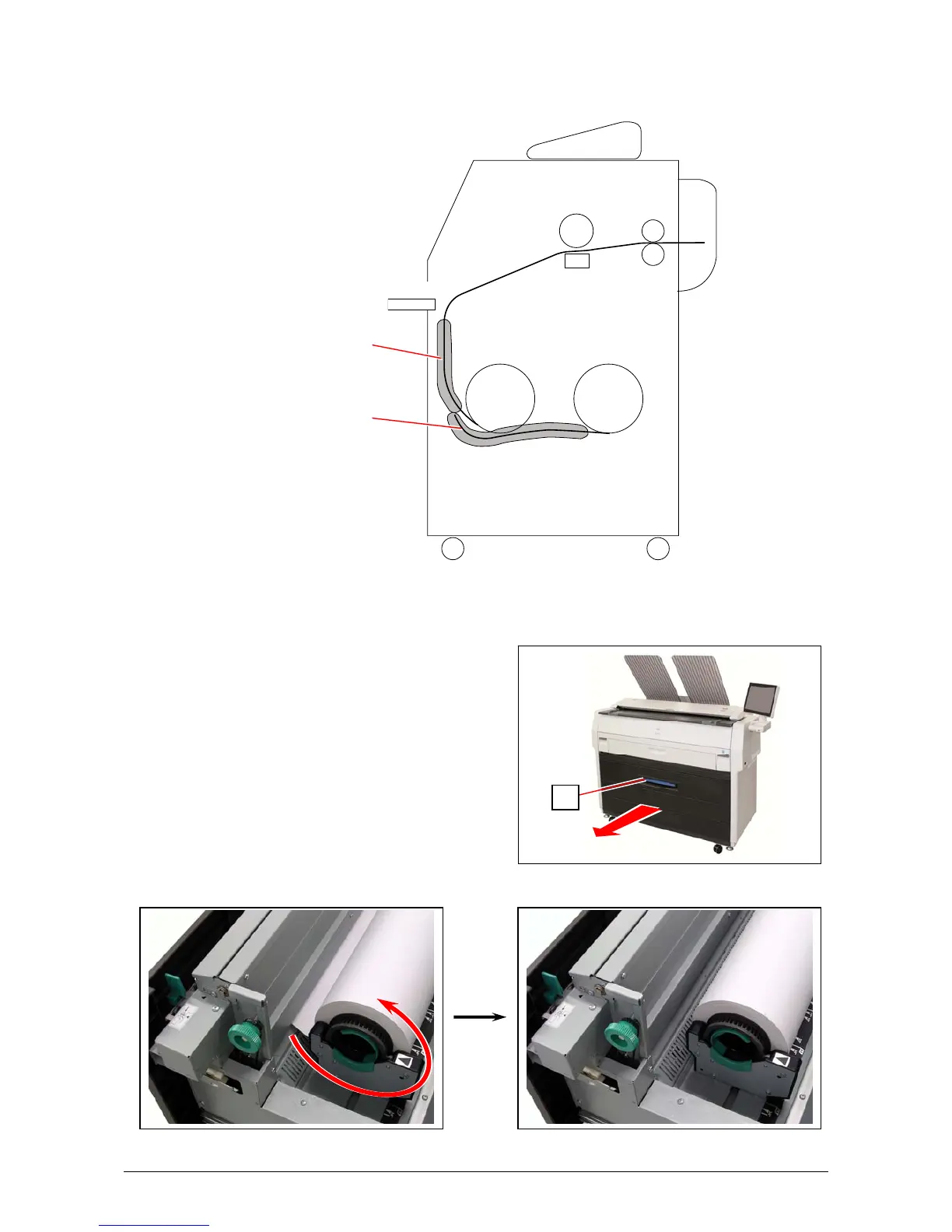

3. 1. 1 Roll Deck Section Jam (Deck 1, 2 Mis-feed)
1. Pull the blue lever (1) to unlock the Roll Deck. Draw out the Roll Deck.
2. Rewind the roll media.
1
Roll Deck Section
- Deck 1 Mis-feed
Roll Deck Section
- Deck 2 Mis-feed
