KIP 7170K - Fuser Section Jam (Exit Back Mis-Feed)

Chapter 3 Error Correction 3-10

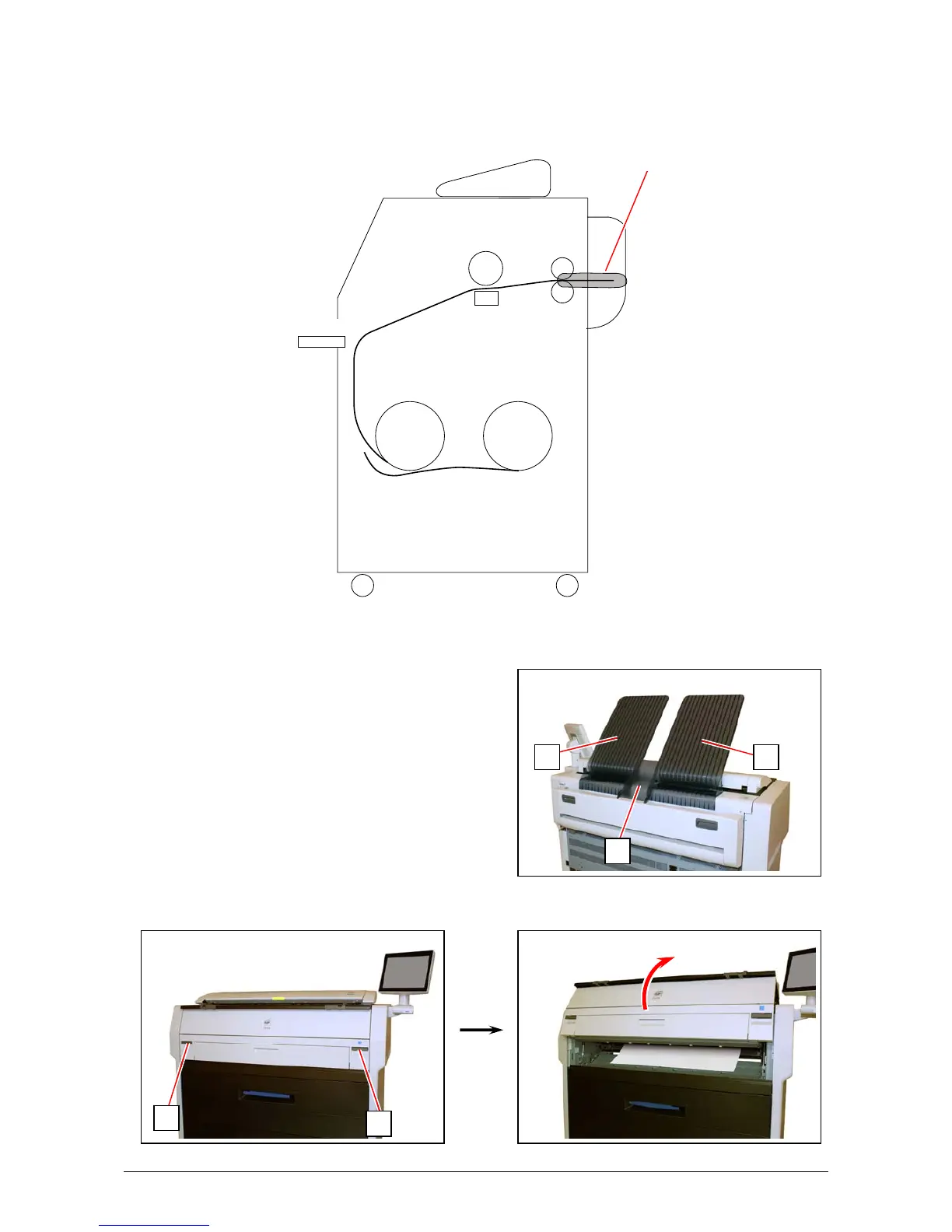

3. 1. 4 Fuser Section Jam (Exit Back Mis-feed)
1. Remove all Print Trays (1).
2. Pull up the Engine Unit Open Levers (2) to open the Engine Unit.
2
2
1
11
Fuser Section
- Exit Back Mis-feed
