KIP 7170K - Media Feed Section Jam (Registration Mis-Feed, Separation Mis-Feed)

Chapter 3 Error Correction 3-8
3. 1. 3 Media Feed Section Jam
(Registration Mis-feed, Separation Mis-feed)

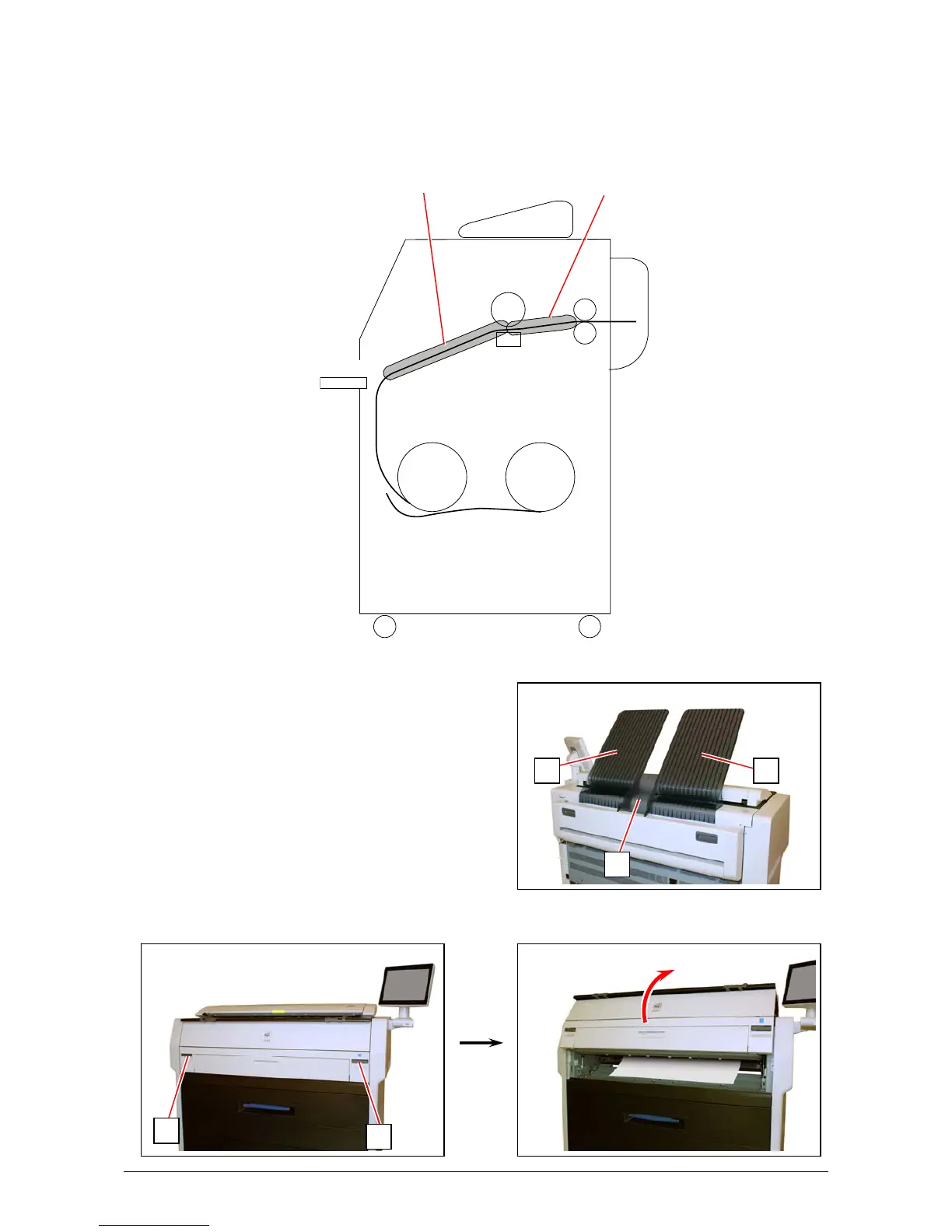

1. Remove all Print Trays (1).
2. Pull up the Engine Unit Open Levers (2) to open the Engine Unit.
2
2
1
11
Media Feed Section
- Registration Mis-feed
Media Feed Section
- Separation Mis-feed
