Chapter 2 Basic Operation 2-9

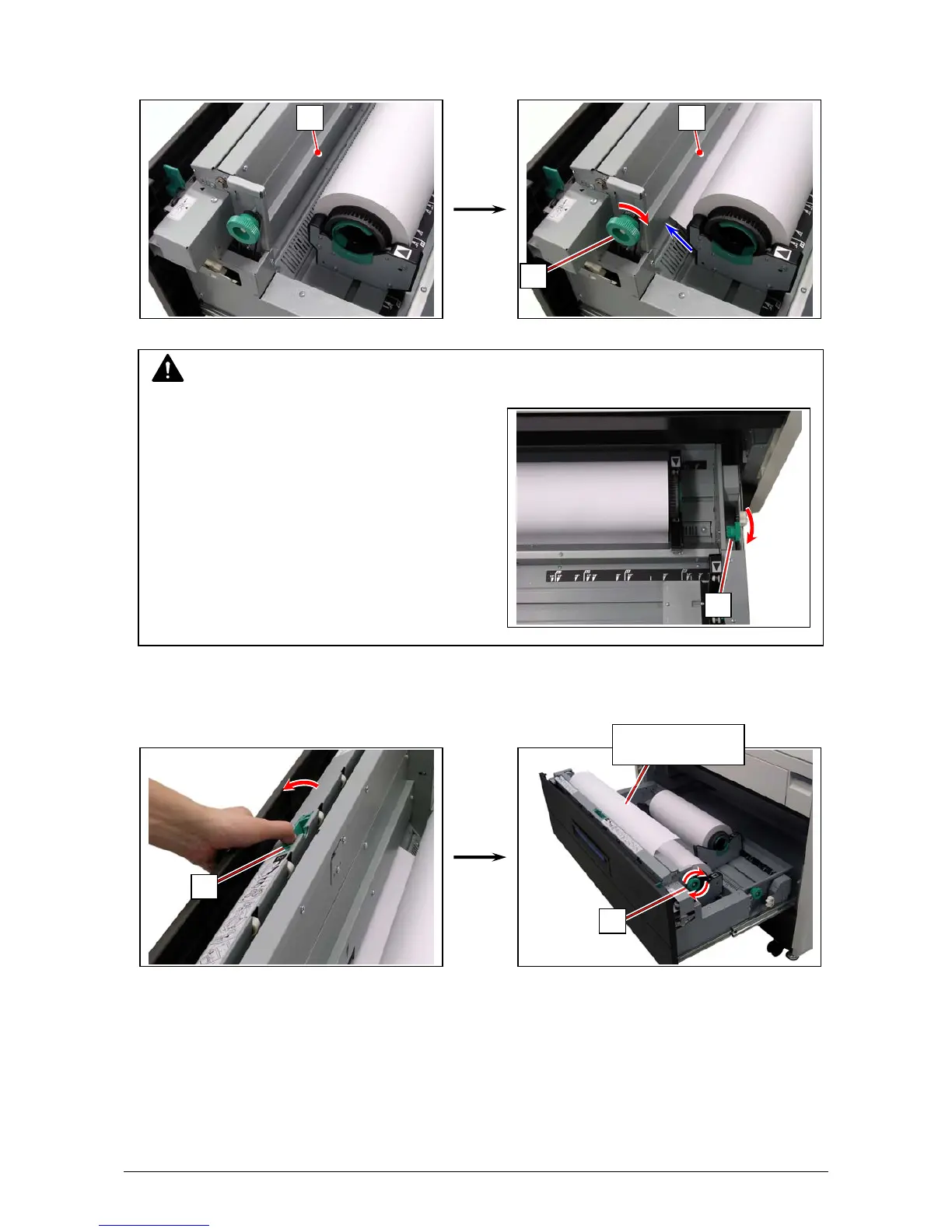

8. Insert the leading edge of the roll media under Guide Plate (8) until it touches the feeding roller.
Rotate Feed Knob (9) clockwise so that the feeding rollers catch the leading edge.
9. Hold the green grip (11: on the middle of Guide Plate) and turn Guide Plate outside.
With holding, rotate Feed Knob (9) again so that the leading edge comes out in 100mm.
NOTE
Use the rear Feed Knob (10) for Roll Deck 2.
9
8
10
11
Leading edge of
roll media
8
9
To Next Page
