Service 1: The fault phenomena is no voltage output in generating set.
----Receptacle terminal is loosened, receptacle terminal is melted.
Cause: 1.Wring is loosened due to vibration. 2. Receptacle patchplug is loosened
to result in heating up
Remedy: 1. Add glue. 2. Replace plug and receptacle.
4.2.2 D.C. receptacle or post
Check: Connect two poles or posts of receptacle with a jumper. Open the circuit
breaker (if any), the current should flow normally between conductor terminals.
Service 1: The fault phenomena is no voltage output in generating set.
----Receptacle terminal is loosened, receptacle terminal is melted.
Cause: 1. Wring is loosened due to vibration. 2. Receptacle patchplug is
loosened to result in heating up
Remedy: 1. Add glue. 2. Replace plug and receptacle.
4.2.3 Starting switch
Check: Circuit should be closed when switched on. Circuit should be open when
switched off. In starting position the circuit should be closed.
Service 1: The fault phenomena is incapable to switch on, start or stop.------------
Receptacle terminal of switch is loosened, switch contact is melted.
Cause: 1. Wring is loosened due to vibration.
2. Switch patchplug is loosened, result in heating up
Remedy: 1. Checkout the resistance for each switch position with a multimeters.
The on-off relation should comply with the table above, otherwise there would be
fault.
2. Replace patchplug and electric door lock.

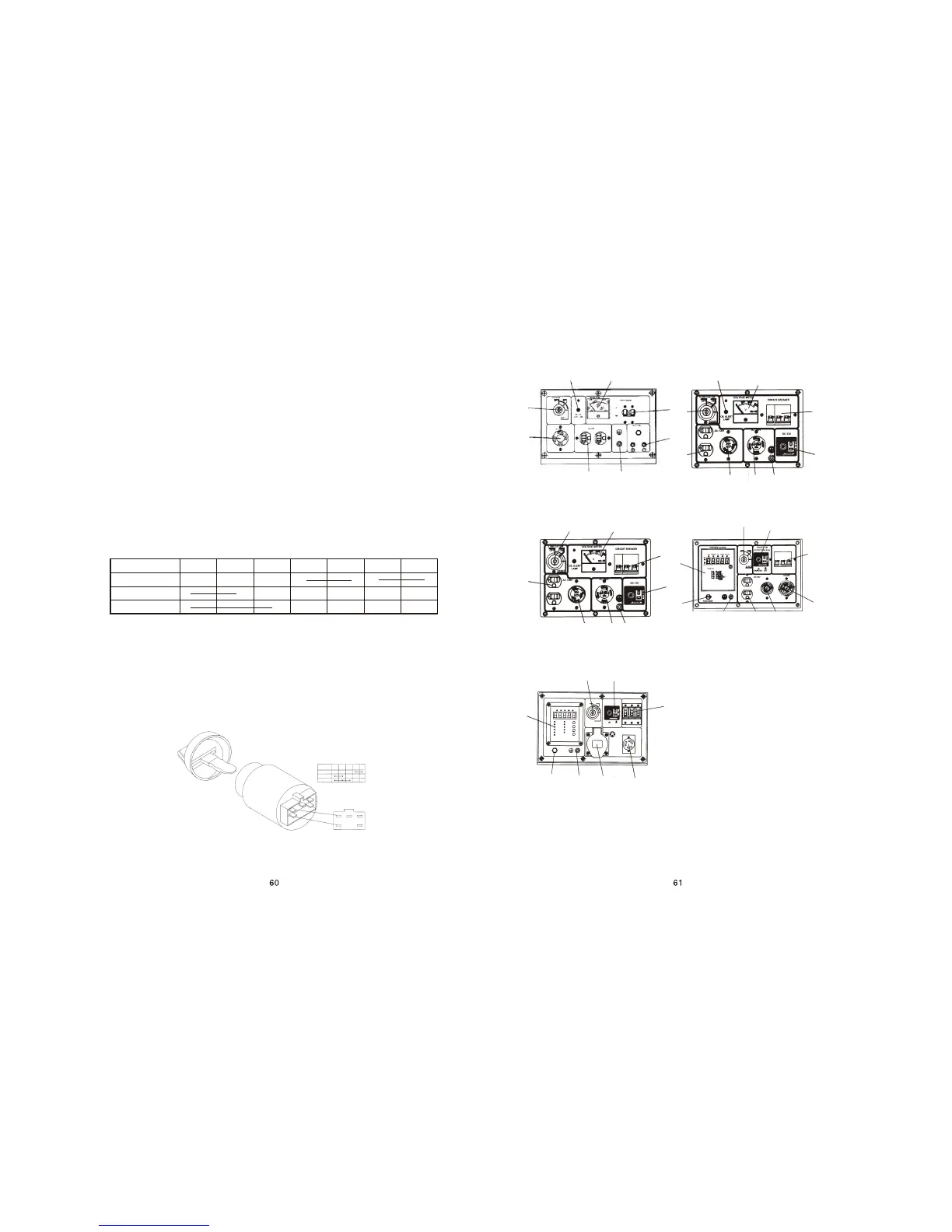

(Fig.) Position of electric switch lock
OFF
ON
START
1234567
(Fig.) Panel
12345
off
on
start
1 4
3
5 2
Low-oil alert lamp
Voltmeter
Electric
switch
lock
Four-hole
receptacle
of american
style
Combined receptacle
of american style
Grounding bolt
Electric switch lock
Voltmeter
Combined
receptacle
of american
style
Air switch
DC receptacle
Intelligent
display
Fuse base
Low oil alert lamp
Voltmeter
Air switch
DC receptacle
Air switch
Electric
switch
lock
DC
terminal
post
Combined
receptacle
of american
style
Three-hole
receptacle
of american
style
Four-hole
receptacle
of american
style
Grounding
bolt
Electric switch lock
DC receptacle
Air switch
Four-hole
receptacle
of american
style
Grounding bolt
Combined
receptacle
of american
style
Three-hole
receptacle
of american
style
Three-hole
receptacle
of american
style
Four-hole
receptacle
of american
style
Grounding
bolt
Electric switch lock
DC receptacle
Air switch
Intelligent
display
Fuse base
Grounding
bolt
Three-phase
five-hole
receptacle
of english style
Honda
receptacle
