5. SERVICE OF INTELLIGENT CONTROL PANEL

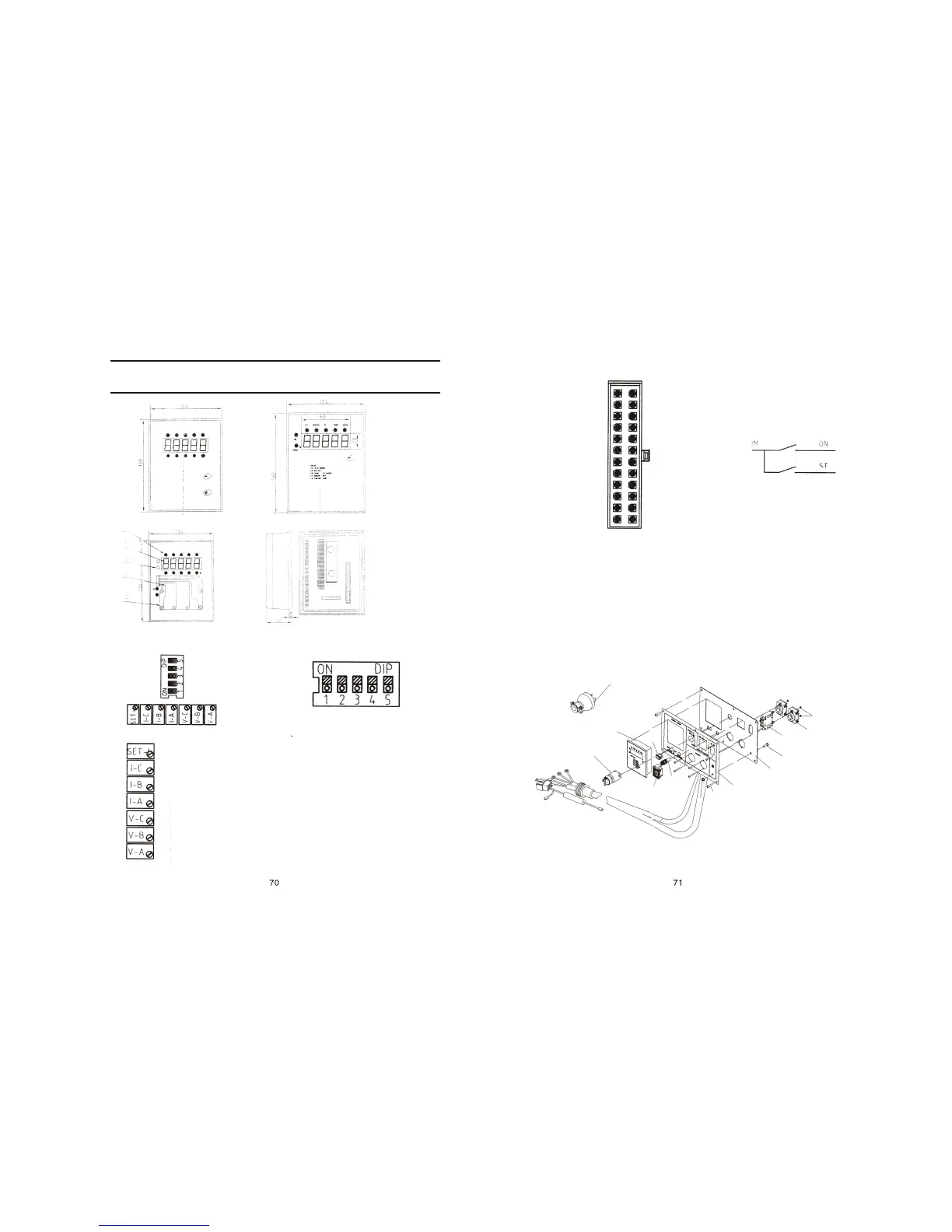

(Fig.) Intelligent control panel
To regulate curret of protected point
To regulate current of phase C
To regulate current of phase B
To regulate current of phase A
To regulate voltage of phase C or line CA
To regulate voltage of phase B or line BC
To regulate voltage of phase A or line AB
1: Frequency setting
2 3:Voltage setting (2:ON 3:ON)--230V
(2:OFF 3:ON)--240V
(2:ON 3:OFF)--115V
(2:ON 3:ON)--230V
(2:OFF 3:OFF)--120V
(4:ON 5:ON)--single phase
(4:OFF 5:ON)--double voltage
selected output
(4:ON 5:OFF)--double voltage
simultanceous output
(4:OFF 5:OFF)--three phase
Toggle switch for function setting
Charging checkout, negative
Common terminal fur output
Starting output
Fuel oil control output
Power supply input, positive
Protection input(low is valid)
Starting signal (high is valid)
Input terminal 2 for current of phase C
Input terminal 2 for current of phase B
Input terminal 2 for current of phase A
Phase B voltage input (the phase-voltage)in transforned)
Phase A voltage input (teh phase-voltage) in transforned)
Charing checkout, position
Common terminal for output
Stating output
Power supply input
Voltage selection 120/240
Engine oil alarming input(grounding is valid)
Input termianl 1 for current of phase C
Input termianl 1 for current of phase B
Input termianl 1 for current of phase A
Common torminal for voltage input
Phase C voltage input (the phase-voltage is transformed)
Both pin of common terminal
starting motor to be connected
Diagram of starting motor fuel
oil control
Plug
Boat switch
Intelligent display
Electric switch lock
DC receptacle
Fuse base
Screw
Grounding nut
Panel
Grounding bolt
Plastic veneer
Air switch
Receptacle
Nut
Electric switch lock
Chinese PVC veneer English PVC veneer
PVC circuit board on module exterior
