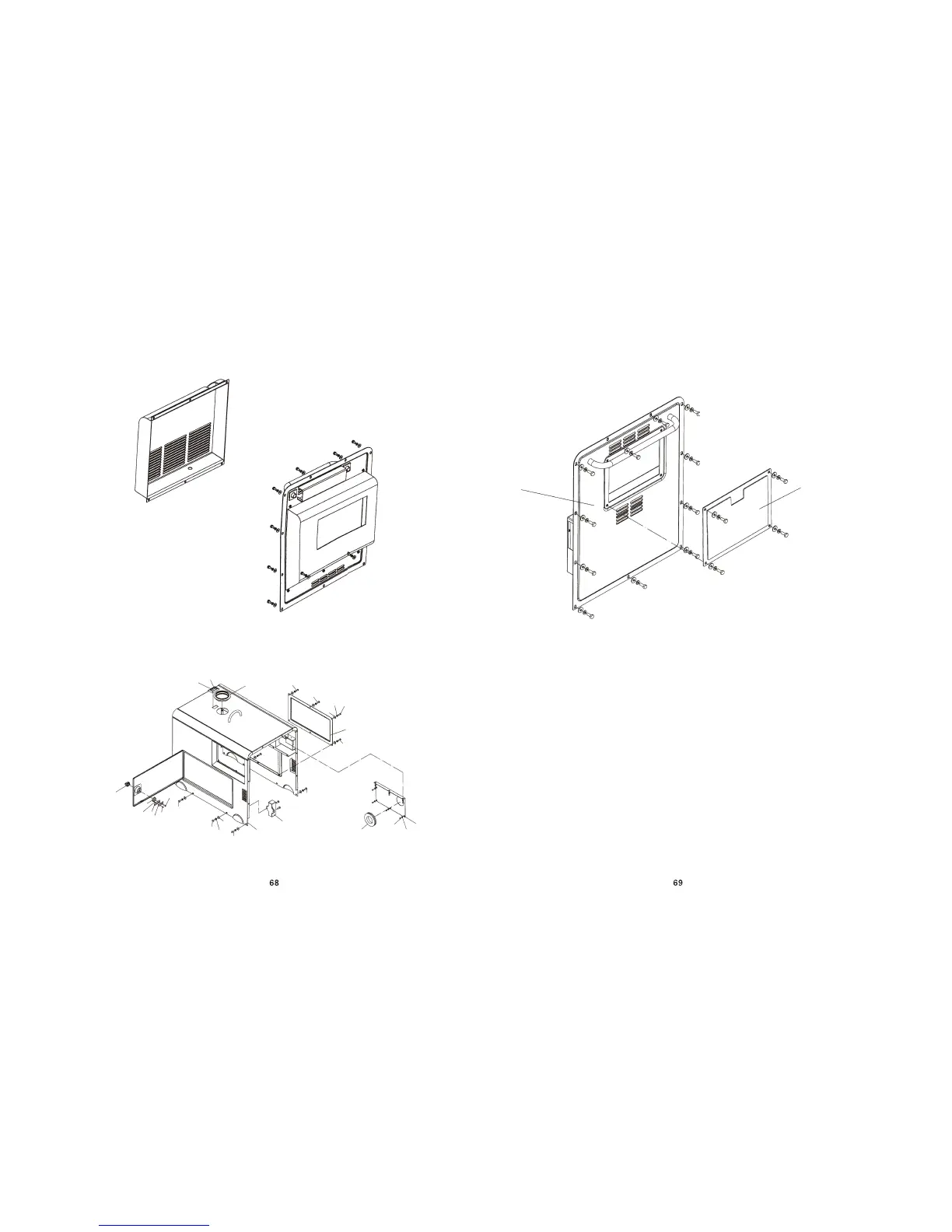

(Fig.) Cabinet (1), (2), (3)
Cooling plate
Left side plate
Fixing sheath for
sight window
Buoy sight window
Shock pad
of oil tank
Bolt M6x16
Bolt M6x16
Spring
washer 6
Bolt M6x16
Big washer 6
Rear door weldment
Bolt M6x16
Bolt M5x15
Shock pad of
air cleaner port
Bolt M5x12
Spring washer 5
Closing plate
of air cleaner
Transtormer
Cabimet weldment
Bolt M6x20
Spring washer
Bolt M6x20
Big washer 6
Bolt M6x20
Spacer
Reinforced plate
for door lock
Nut M4
Door Lock
Bolt M5x10
Bolt M5x15
Knob of
door lock
Right side plate
Cover plate
of air cleaner
