INSTALLATION INFORMATION
INSTALLATION INSTRUCTIONS
INSTALL HEAT SHIELD
1. Decide on the final location for the cooktop.

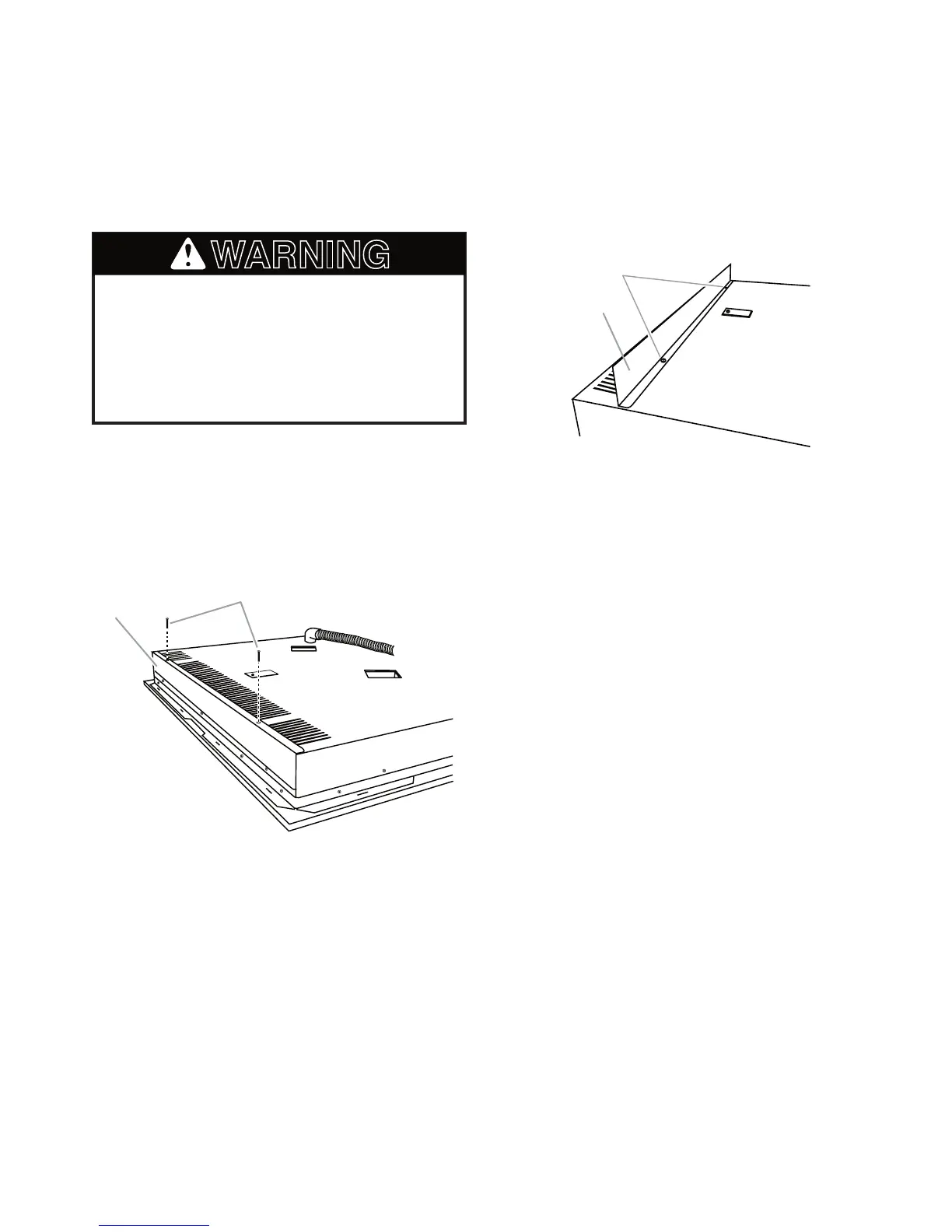

4. Using two screws, reattach the heat shield
to the underside of the cooktop at the
predrilled holes as shown in the following
illustration.
A. Heat shield
B. Remove screws
A
B
A. Heat shield
B. Predrilled holes
A
B
INSTALL COOKTOP
Style 1: Cooktop over undercounter
built-in oven
IMPORTANT:
Your cooktop may not be approved for use
over an undercounter built-in oven. Contact
your dealer to confirm that your cooktop is
approved.
Clamping brackets should not be used.
1. Turn cooktop right side up.
2. Place cooktop in cutout.
NOTE: Make sure that the front edge of
the cooktop is parallel to the front edge of
the countertop. If repositioning is needed,
lift entire cooktop up from cutout to avoid
scratching the countertop.
•
•
Excessive Weight Hazard
Use two or more people to move and
install cooktop.
Failure to do so can result in back or
other injury.
WARNING
2. Using two or more people, place the
cooktop upside down on a covered work
surface.
3. Remove the heat shield from the cooktop.
Set the two screws aside for reattaching
the heat shield.
