5-2

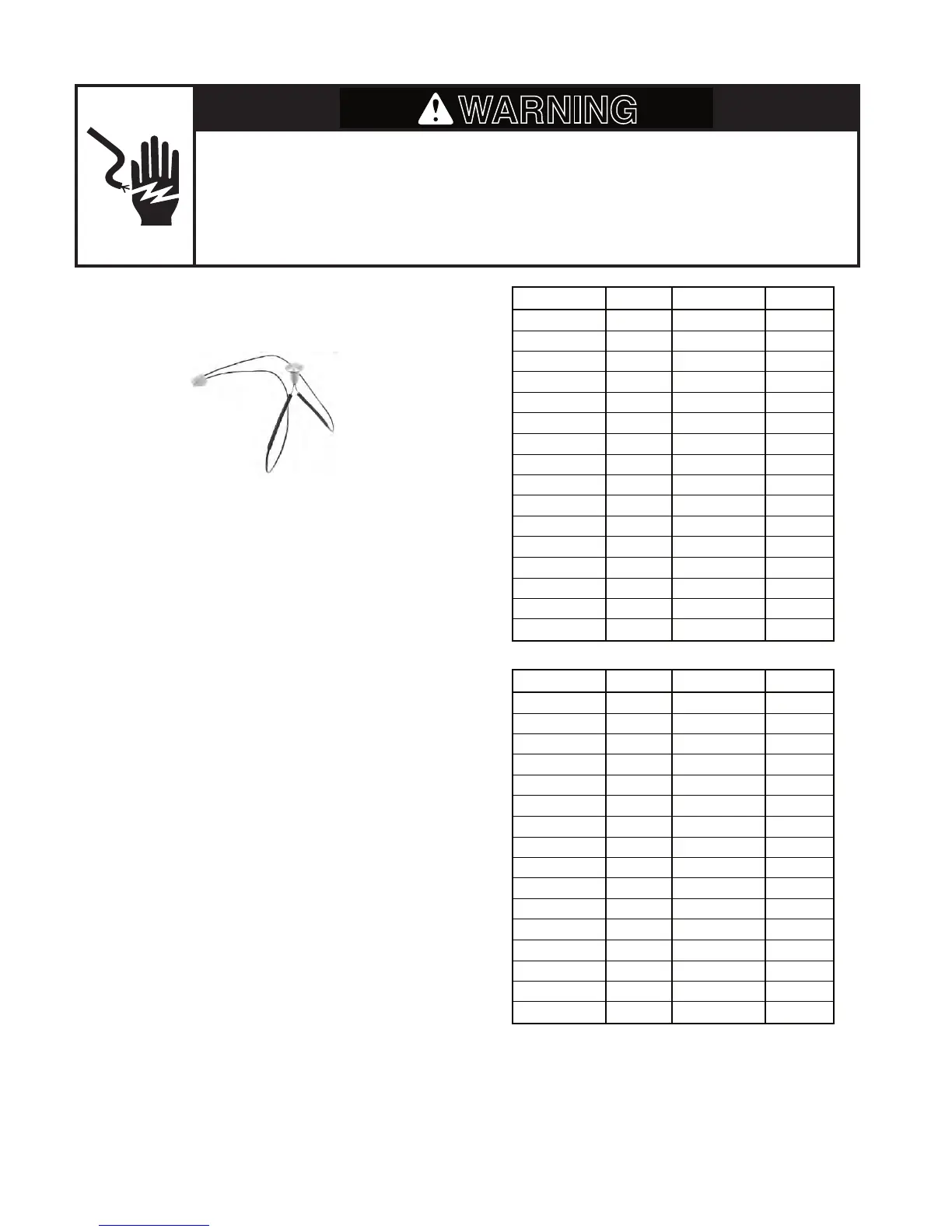

NEGATIVE TEMPERATURE
COEFFICIENT (NTC) SENSOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Refer to page 4-6 for the procedure for ac-
cessing the negative temperature coefficient
(NTC) sensor.
NOTE: Each of the inductors uses a negative
temperature coefficient (NTC) sensor for moni-
t
oring the operating temperature. The sensors
are interchangeable. Use conductive grease
when replacing a sensor to aid in thermal con-
d
uction.
1. Unplug cooktop or disconnect power.
2. Disconnect the NTC wires from the elec-
tronic board.
3.
Set the ohmmeter to the R x 1 scale.
4. Touch one of the ohmmeter test leads to
the pins of the NTC connector. The meter
should indicate as shown in the charts.
R (k Ω)Temp (°F) R (k Ω)Temp (°F)
47.788 78.898.26450
45.794 80.693.22951.8
43.873 82.488.63253.6
42.019 84.284.40455.4
40.228 86 80.48957.2
38.496 87.876.84559
36.819 89.673.43560.8
35.193 91.470.23362.6
33.616 93.267.21364.4
32.085 9564.35766.2
30.597 96.861.64768
29.150 98.659.07069.8
27.741 1
00.456.61371.6
26.369 102.254.26473.4
26.065 10452.01675.2
49.86077
— —
R (k Ω)Temp (°C) R (k Ω)Temp (°C)
47.788 2698.26410
45.794 2793.22911
43.873 2888.63212
42.019 2984.40413
40.228 30 80.48914
38.496 3176.84515
36.819 3273.43516
35.193 3370.23317
33.616 3467.21318
32.085 3564.35719
30.597 3661.64720
29.150 3759.07021
27.741 3856.61322
26.369 3954.26423
26.065 4052.01624
49.86025
