KitchenAid KICU508SBL - COMPONENT ACCESS; COMPONENT LOCATIONS

4-1
COMPONENT LOCATIONS

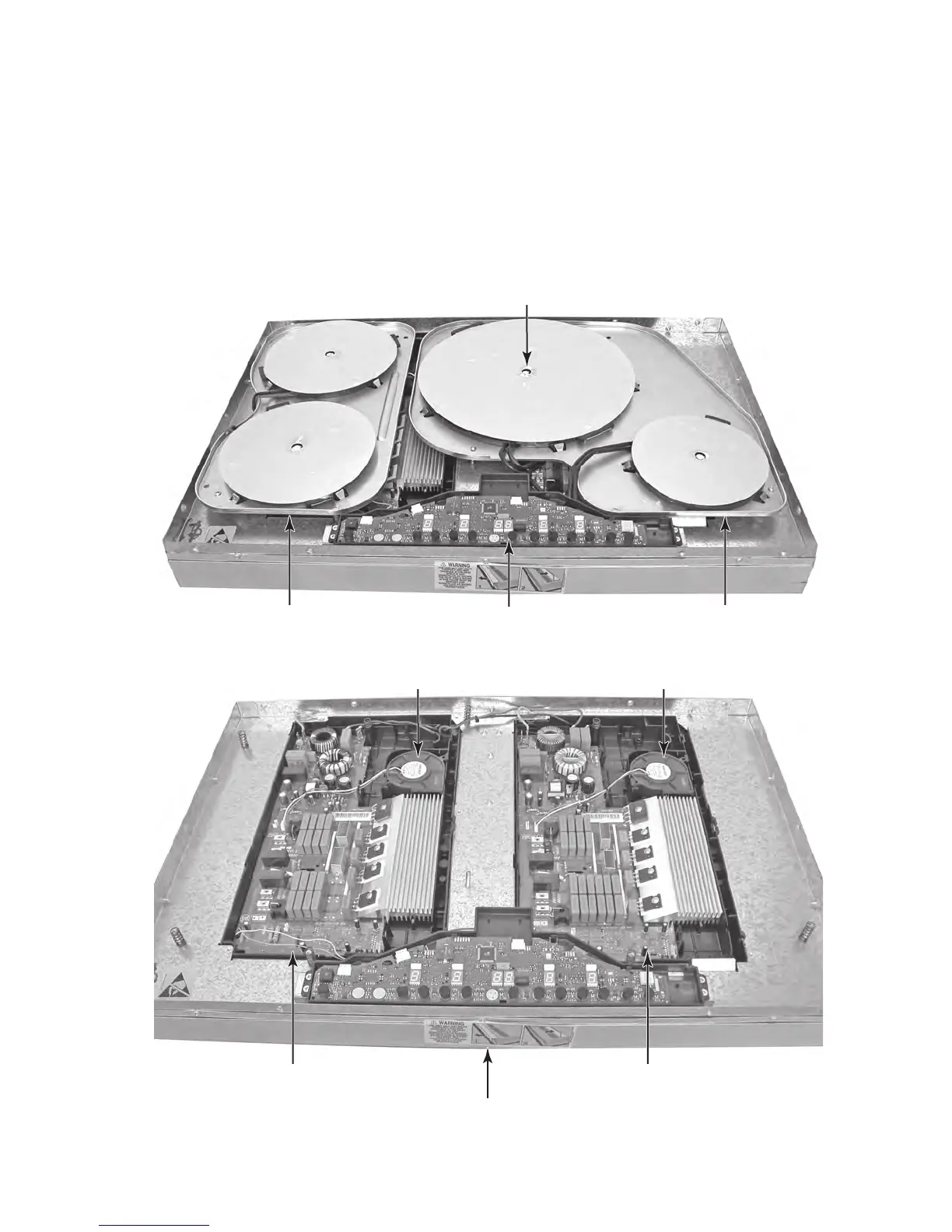

This section instructs you on how to service each component inside the KitchenAid Touch-Activated
Electronic Induction Cooktop. The components and their locations are shown below.
COMPONENT ACCESS
Touch Control Board
Left Induction Element Assembly Right Induction Element Assembly
Left Electronic Board Right Electronic Board
Left Cooling Fan Right Cooling Fan
2 20A Fuses (Inside Burner Box)
Negative Temperature Coefficient (NTC) Sensor
(1 For Each Element)
