KitchenAid KICU508SBL - REMOVING A 20 A LINE FUSE

4-8

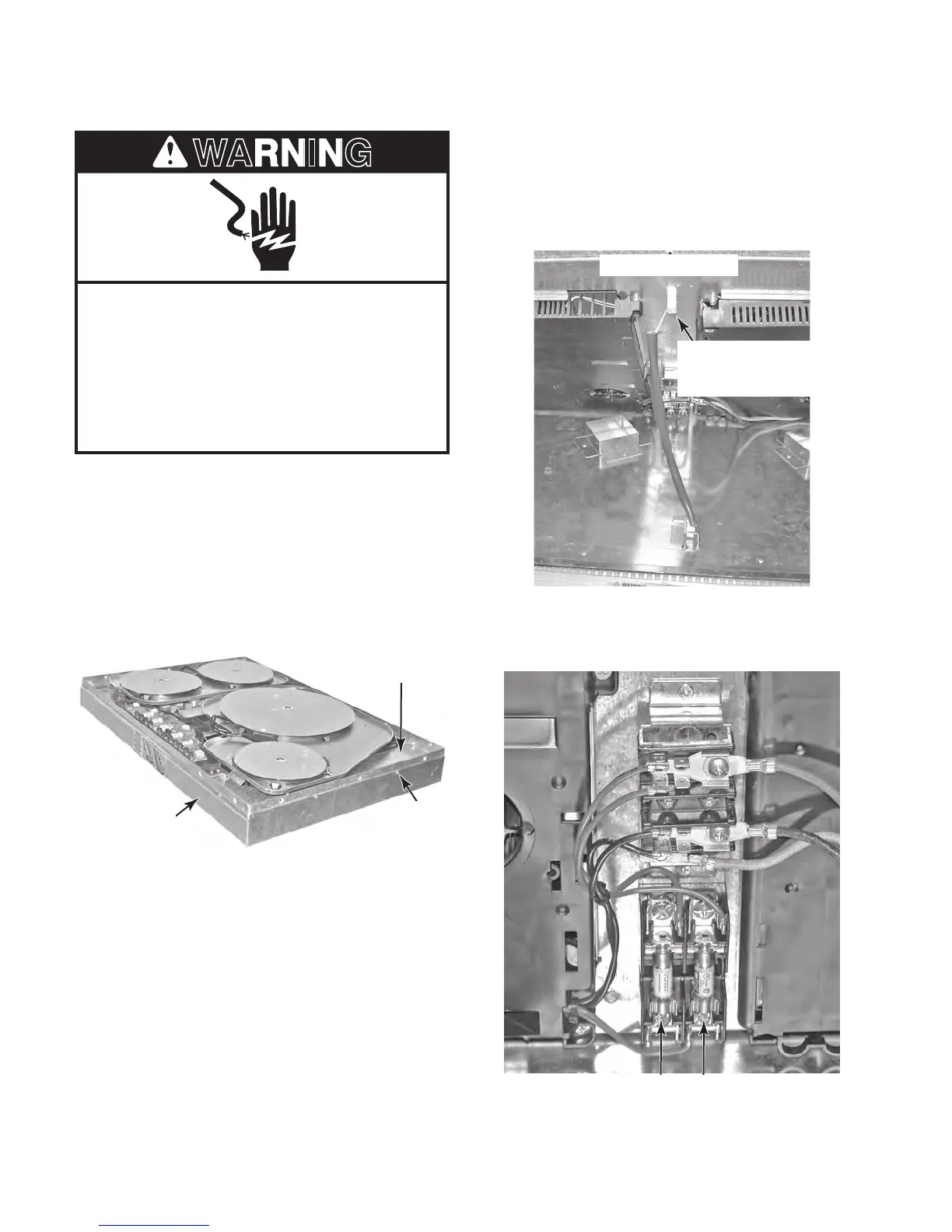

REMOVING A 20A LINE FUSE
WARNING
NOTE: A fuse is installed for each relay board
to avoid short circuits in the cooktop.
1. Unplug cooktop or disconnect power.
2. Remove the cooktop glass from the cooktop
(see page 4-2 for the procedure).
3. Remove the ten flat-head screws from the
component panel and burner box.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
4. LIft the front of the component panel ap-
proximately 8˝,
disconnect the 4-wire
bridge communication cable connector,
and rest the panel back against a sup-
p
ort.
Component Panel
Burner Box
Screw
(1 of 10)
4-Wire Bridge
Communication
Cable Connector
5. Remove the defective fuse from its fuse
holder clips and install a new 20A fuse in
its place.
20A Line Fuses
Component Panel
